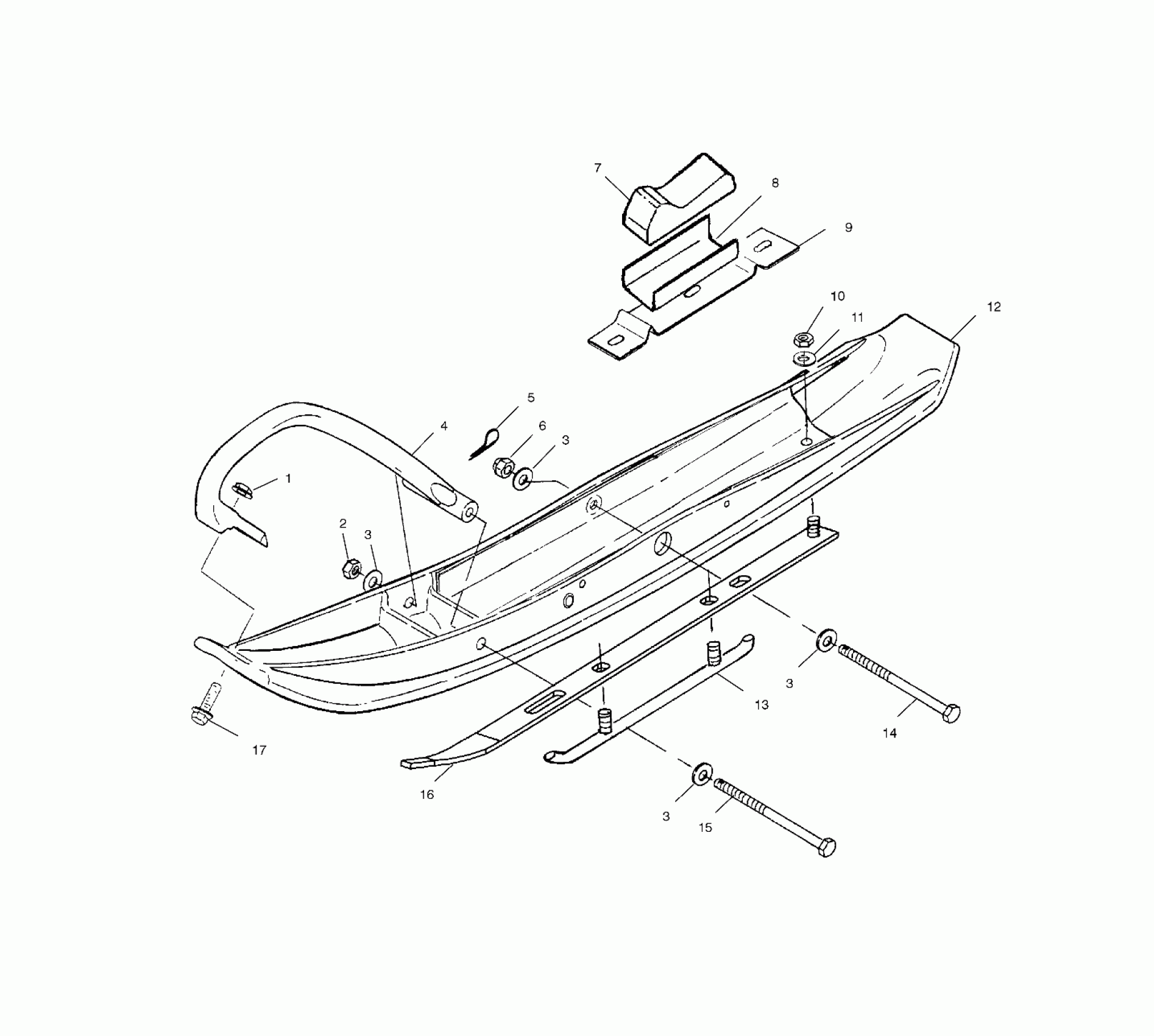

Polaris 700 SKS - 099SS7AS SKI - E99SS7AU (4948514851b004) Diagram

#

Description
Price

1

NUT LOCK(10)

7542321

$1.49

2

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

4

TOE,PLASTIC SKI,BLK Substituted by 5434165-070

5432209-070

$40.46

5

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

6

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

7

STOP,RUBBER

5411094

Unavailable

8

RETAINER-SKI RUBBER Substituted by 5243824

5243127

$27.78

9

SUPPORT,SKI,RUBBER,BLK

5241912-067

Unavailable

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

12

COMP.SKIBLANK,W/RK SDL,BLK

1820610-070

Unavailable

13

KIT,SKAG,EZ,3",COMP.SKI

2872018

Unavailable

13

KIT,SKAG,E/Z 3",CO W/WR/ST (Incl. 11,12,17)

2872019

Unavailable

14

SCREW,(10)

7512596

$19.99

15

BOLT(10)

7515514

$7.19

16

PLATE,SKAG,1.375 STUD,BLK

1012748-067

Unavailable

17

BOLT(10)

7515307

$3.99
