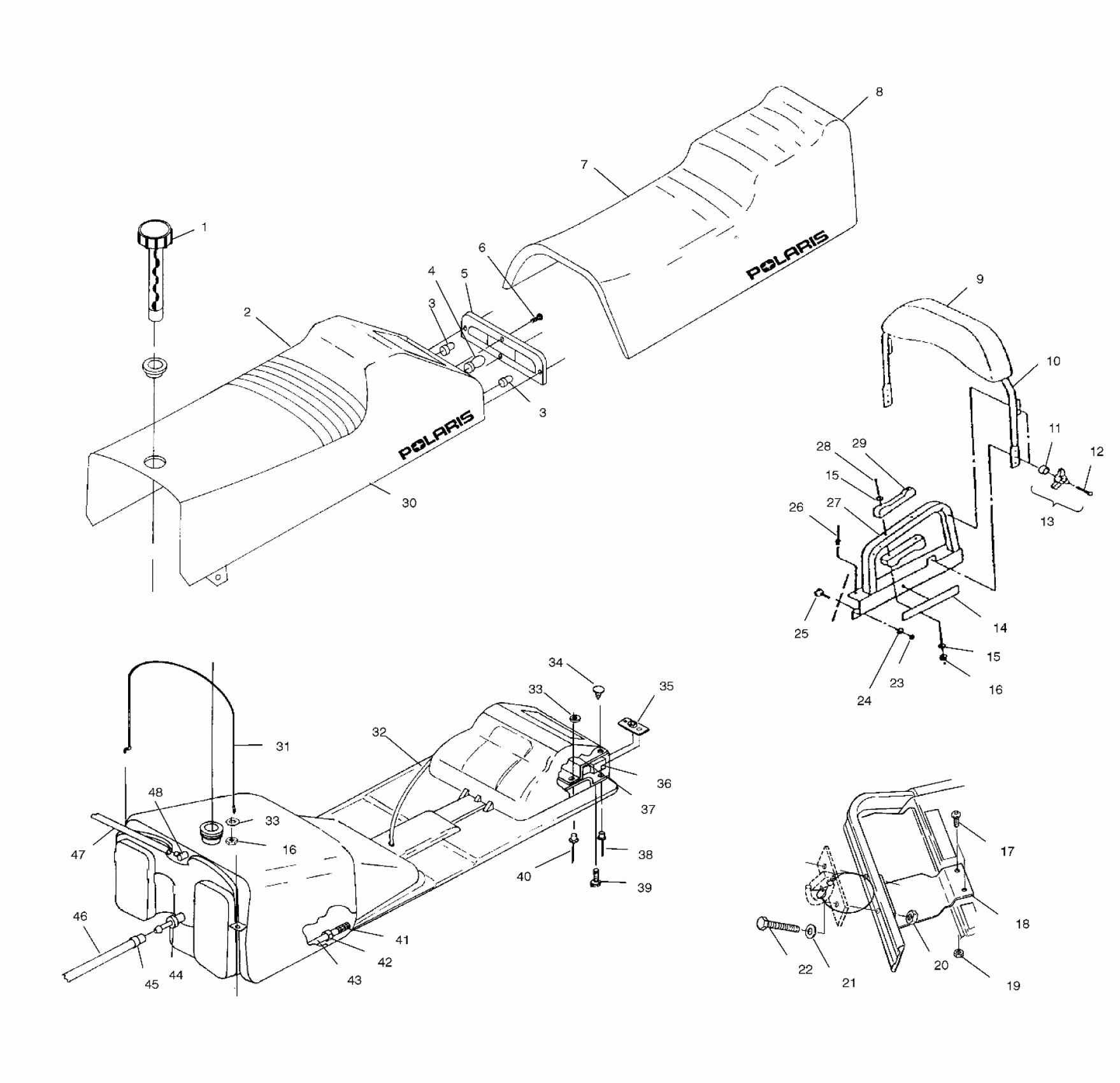

Polaris 700 SKS - 099SS7AS SEAT and GAS TANK - E99SS7AU (4948514851a007) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

SEAT ASM,LONG (Incl. 3-44,31-47)(US)

2682397

Unavailable

3

BULB,TAILLIGHT(10)

4030024

$4.84

3

BULB,TAILLIGHT(10)

4030024

$4.84

4

Bulb, Brakelight

4030045

Unavailable

5

LENS,TAILLIGHT

5430423

Unavailable

6

SCREW(10)

7511840

Unavailable

7

CUSHION,SEAT,2-UP (Incl. 3-44,31-47)(Euro)

2681714

Unavailable

8

COVER,SEAT,2-UP (Euro)

2682794

Unavailable

9

Cover, Backrest (Euro)

2681265

$257.13

10

BACKREST ASM. (Incl. 9)(Euro)

2681356

$284.75

11

SPACER (Euro)

5431285

Unavailable

12

BOLT(10) Substituted by 7515352 (Euro)

7515306

Unavailable

13

KNOB ASM,BACKREST (Incl. 11,12)(Euro)

2670130

Unavailable

14

REFLECTOR RED (Euro)

2670070

$9.91

15

WASHER,13/64X1/2X18GA,FL-Y (Euro)

7558212

$1.49

15

WASHER,13/64X1/2X18GA,FL-Y (Euro)

7558212

$1.49

16

NUT(10)

7541925

$1.49

16

NUT(10)

7541925

$1.49

17

SCREW (Euro)

7517299

Unavailable

18

PLATE,HITCHBRACE,BLK. (Euro)

5242099-067

$28.95

19

NUT(10) (Euro)

7542151

$3.99

20

NUT-LOCK(10) (Euro)

7542439

$1.49

21

WASHER, WROUGHT(10) Substituted by 7555801 (Euro)

7555928

Unavailable

22

BOLT(10) Substituted by 7515492 (Euro)

7512410

Unavailable

23

NUT-5/16-18 NYLOK-Y (Euro)

7542324

$1.49

24

WASHER-.344X.688X.063 FL-Y (Euro)

7558402

$1.49

25

BOLT(10) Substituted by 7512325 (Euro)

7515363

Unavailable

26

RIVET,INTERLOCK,B(50) (Euro)

7661638

$1.49

27

GRAB,BAR,LH,BLK (Euro)

1012869-067

$53.59

27

GRAB,BAR,RH,BLK (Euro)

1012870-067

$53.59

28

SCREW(10) (Euro)

7510504

$6.76

29

GRIP, HAND Substituted by 5433383 (Euro)

5431015

$19.68

30

COVER ASM,SEAT,LONG (US)

2682396

Unavailable

31

CABLE,TANK,RETENTION

7080559

Unavailable

32

HARNESS,TAILLIGHT

2460398

Unavailable

33

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

33

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

34

CLIP,DART,(10)

7670097

Unavailable

35

NUT,RETAINER-WELD.(10)

7542147

$17.59

36

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

37

COVER,T/L PROTECTOR

5431436

$21.43

38

RIVET(50)

7621301

$3.99

39

SCREW(10)

7512242

$2.39

40

RIVET(50)

7621464

$3.99

41

FUELPICKUP,W/STRAINER

7052037

$12.94

42

RING, COMPRESSION(10)

7080402

$1.60

43

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

44

FITTING,OUT,90 DEG,,DOUBLE

7052143

Unavailable

45

HOSE CLAMP, RED

7080003

$1.49

46

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

47

FUELLINE,3MMX7MM

8450061-600

Unavailable

48

FITTING,90 DEG,1/8,(10)

7052095

$4.79
