Partiron

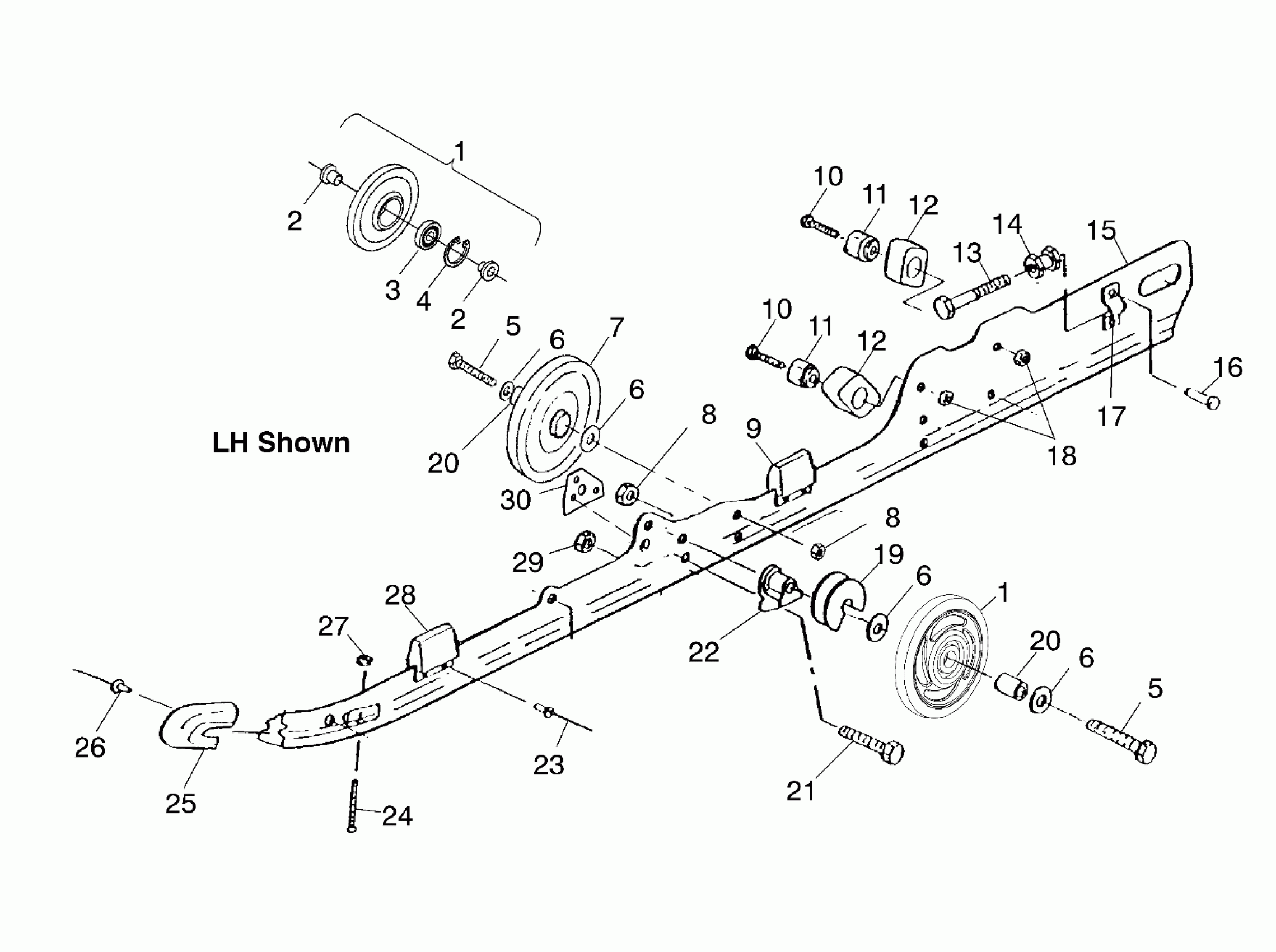

Polaris 700 SKS - 099SS7AS RAIL MOUNTING (SUSPENSION) - E99SS7AU (4948514851b014) Diagram

#

Description
Price

1

WHEEL,BOGIE,SCRL,M.BLUE (Incl. 2,3,4)

1594082-107

Unavailable

1

WHEEL,BOGIE,SCRL,M.BLUE (Incl. 2,3,4)

1594082-107

Unavailable

2

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

2

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

3

BEARING (1 per Wheel)

3514303

$11.99

4

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

5

BOLT(10)

7512578

Unavailable

5

BOLT(10)

7512578

Unavailable

6

WASHER, FLAT(10)

7555852

$2.39

6

WASHER, FLAT(10)

7555852

$2.39

6

WASHER, FLAT(10)

7555852

$2.39

6

WASHER, FLAT(10)

7555852

$2.39

7

WHEEL, IDLER

1543018

$56.65

8

NUT, NYLOCK(10)

7542525

$4.79

8

NUT, NYLOCK(10)

7542525

$4.79

9

REINF., BUMPER

5222629

$13.75

9

BUMPER,SUSPENSION

5811097

Unavailable

10

BOLT,(10)

7515545

$5.59

10

BOLT,(10)

7515545

$5.59

11

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

11

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

12

BUMPER,F.PIVOT ARM

5410925

$12.94

12

BUMPER,F.PIVOT ARM

5410925

$12.94

13

BOLT, ADJUSTER(10)

7515455

$29.99

14

NUT,TENSIONER ADJ.

5020943

$20.22

15

RAIL ASM,LH,X-10,136 (Incl. 8,15,16,22,24,25,27)

1541155

Unavailable

15

RAIL ASM,RH,X-10,136 (Incl. 8,15,16,22,24,25,27)

1541156

$319.99

16

RIVET,(50)

7621501

$2.39

17

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

18

NUT LOCK(10)

7542411

$3.19

19

ROLLER,SPRING,SQ. Substituted by 5433575

5433025

Unavailable

20

SPACER, WHEEL

5333116

$7.99

20

SPACER, WHEEL

5333116

$7.99

21

BOLT(10)

7512404

$3.99

22

SPACER

5630399

$11.99

23

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

24

BOLT(10)

7515175

$3.99

25

COVER,RAIL TIP

5433005

Unavailable

26

RIVET(50)

7621435

$1.49

27

NUT-LOCK(10)

7542122

$1.49

28

REINF., BUMPER

5222629

$13.75

28

BUMPER, RAIL

5810554

$7.27

29

NUT-LOCK(10)

7542439

$1.49

30

PLATE,RAILSUPPORT,136" (1 per Wheel)

5211843

Unavailable
