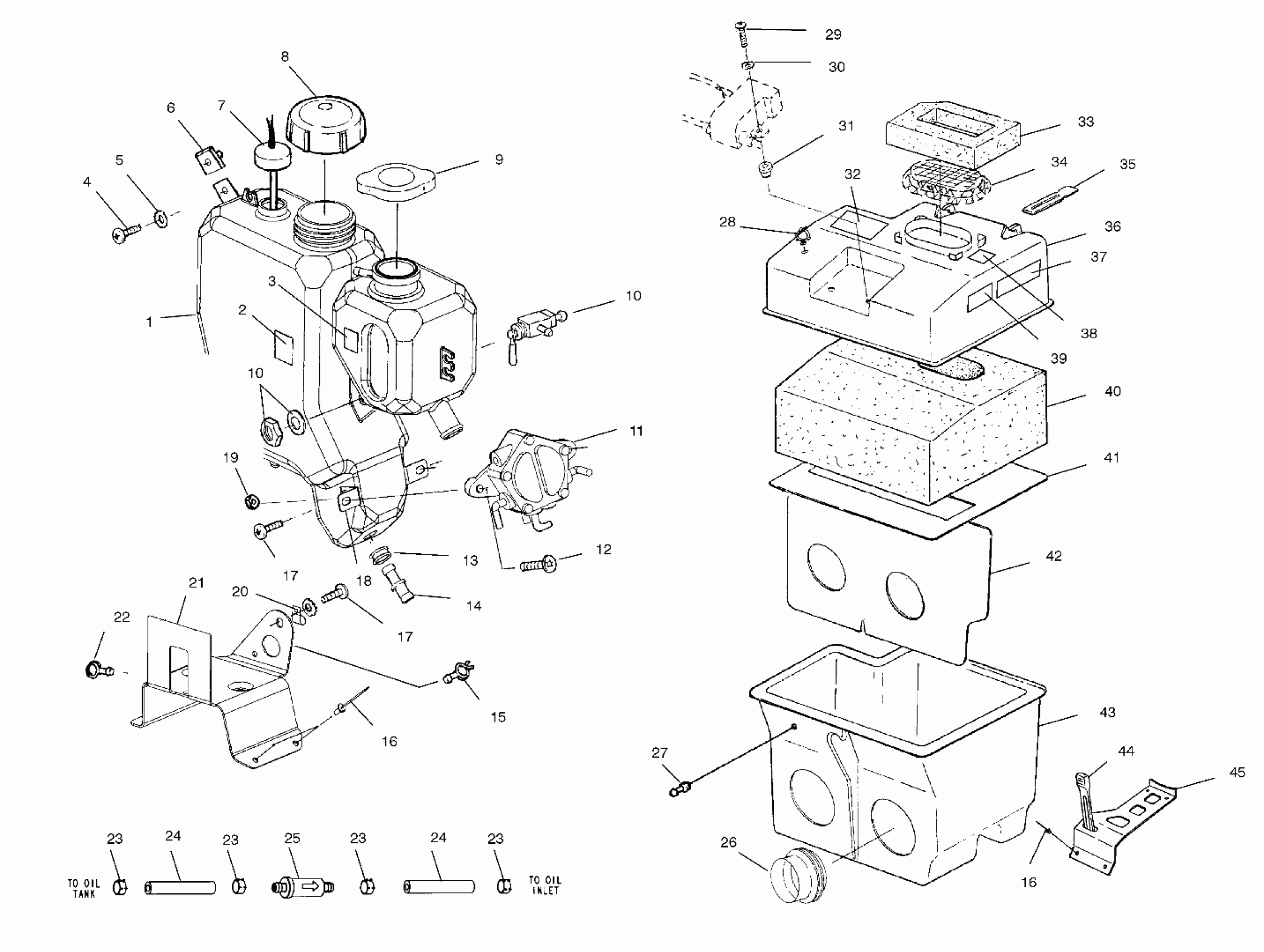

Polaris 700 SKS - 099SS7AS OIL TANK/AIR BOX - E99SS7AU (4948514851c007) Diagram

#

Description
Price

1

TANK,OIL/COOLANT COMBO. Substituted by 2201437

5432749

Unavailable

2

DECAL,FUEL SHUT-OFF

7077442

Unavailable

3

DECAL-SURGE TANK,"FULL COLD"

7078147

Unavailable

4

BOLT(10)

7512276

$4.79

5

WASHER,WROUGHT(10)

7558302

$1.59

6

Nut

7670096

$1.59

7

SENSOR,OIL LEVEL

4110134

$72.84

8

CAP,OIL,VENTED Substituted by 1240094

2511287

Unavailable

9

CAP, PRESSURE,(13 LB)

2511270

$24.27

10

Valve, Fuel (See Engine Mounting. Pg. C6, Ref. 20)

-------

Unavailable

10

Valve, Fuel (See Engine Mounting. Pg. C6, Ref. 20)

-------

Unavailable

11

Pump, Fuel (See Engine Mounting Pg. C6, Ref. 18)

-------

Unavailable

12

SCREW,(10)

7517455

$8.99

13

GROMMET-TANK FITTING(10)

7052028

$6.39

14

FTTNG,STRAIGHT,PRESS-IN

7052207

$8.79

15

CLIP,TWIST LOCK

7080745

$2.23

16

RIVET,INTERLOCK,B(50)

7661638

$1.49

16

RIVET,INTERLOCK,B(50)

7661638

$1.49

17

SCREW(10)

7517615

$3.19

17

SCREW(10)

7517615

$3.19

18

Bracket, Mount, Fuel Pump

5242680

$9.91

19

Nut, Nylok

7542122

$1.49

20

CLAMP-CABLE

7080367

$2.39

21

BRACKET, OIL/COOLANT TANK

5242688

Unavailable

22

CLIP, ROSEBUD

4020139

$4.79

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

Line, Oil

8450003-1525

Unavailable

24

Line, Oil

8450003-1525

Unavailable

25

Filter, Oil

2530009

$5.65

26

BOOT, CARB

5411109

Unavailable

27

Fitting

7052127

$3.19

28

Clip

7670102

$2.39

29

Screw

7512222

$2.39

30

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

31

NUT-WELL(10)

7541923

$5.59

32

DECAL,COOL.SYSTEM [No Longer Available]

7075359

Unavailable

33

FOAM,AIRBOX,CHIMNEY,HYB.

5811606

Unavailable

34

MESH-WIRE,FORMED

5243219

Unavailable

35

RETAINER-TAB,(10)

5411075

Unavailable

36

TOP,SILEN.INTAKE

5432828

$66.99

37

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

38

DECAL,CAUTION,AIRBOX

7075351

Unavailable

39

DECAL, GREASING [No Longer Available]

7073426

$7.27

40

FOAM,AIRBOX,TOP,INTERNAL

5811564

Unavailable

41

PLATE,SILENCER INTAKE

5850134

Unavailable

42

PLATE,SILENCER,INTAKE,VERT.

5850139

$10.71

43

SILENCER,INTAKE,DRILLED

5432368

Unavailable

44

STRAP,TIE-DOWN

5411129

$8.89

45

BRKT,SIL.MOUNT,LOW Substituted by 5243729

5241691

Unavailable
