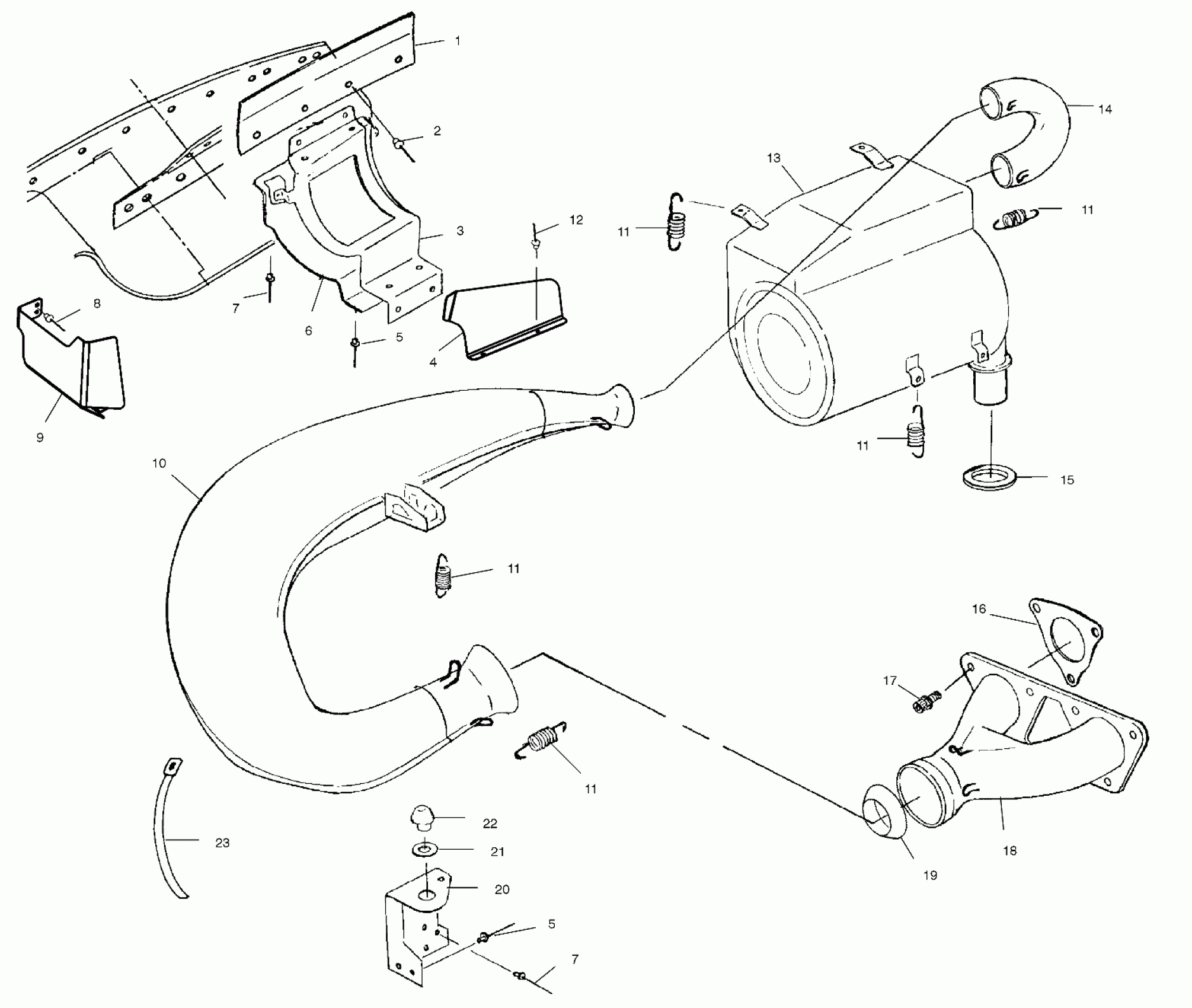

Polaris 700 SKS - 099SS7AS EXHAUST SYSTEM - 099SS7AS (4948514851c008) Diagram

#

Description
Price

1

SHIELD,HEAT,HD.GUIDE

5242183

$12.39

2

POP RIVET(50)

7621402

$1.49

3

SUPPORT,RESONATOR,BLK

5242254-029

Unavailable

4

SHIELD-HEAT,EXHAUST,SIDE

5243091

Unavailable

5

RIVET(50) Substituted by 7661130

7661643

Unavailable

5

RIVET(50) Substituted by 7661130

7661643

Unavailable

6

SHIELD,RESON/CRADLE

5241994

Unavailable

7

RIVET,INTERLOCK,B(50)

7661638

$1.49

7

RIVET,INTERLOCK,B(50)

7661638

$1.49

8

RIVET,3/16X.402(50)

7621432

$1.49

9

SHIELD-HEAT,EXHAUST,FRONT

5243090

$11.41

10

Cover, Pipe, Top

5241720

Unavailable

10

COVER, PIPE, BOTTOM

5241721

Unavailable

10

MATTE,SOUND

5830111

$86.51

10

MATTE,SOUND,BTM.

5830126

Unavailable

10

PIPE ASM,TUNED (Incl. 23)

1260764

Unavailable

10

PIPE,TUNED,BLK. Substituted by 1260764

1260763-029

Unavailable

11

SPRING-EXHAUST

7041687

$5.65

11

SPRING-EXHAUST

7041687

$5.65

11

SPRING-EXHAUST

7041687

$5.65

11

SPRING-EXHAUST

7041687

$5.65

11

SPRING-EXHAUST

7041687

$5.65

12

RIVET(50)

7621452

$1.49

13

RESONATOR,BLK

1260808-029

Unavailable

14

U-TUBE, BLK.

1260802-029

Unavailable

15

OUTLET,EXH,RUBBER

5411258

Unavailable

16

GASKET,EXHAUST Substituted by 5811952

5811274

$24.99

17

SCREW(10)

7517322

$2.39

18

MANIFOLD,BLK

1260757-029

Unavailable

19

SEAL,EXH.SOCKET

3610046

$36.41

20

BRKT,MUFFLER,FRONT-Z

5241832

$22.23

21

WASHER

7556004

Unavailable

22

DAMPENER-VIBRATION,W/RIBS

5411576

$7.99

23

CLAMP,WORM,(10) (.44 x 3.13)

7080739

$10.63

23

CLAMP,WORM,(10) (.44 x 3.69)

7080740

$13.19

23

CLAMP,WORM,(10) (.44 x 4.25)

7080741

$19.99

23

CLAMP,WORM,(10) (.44 x 6.38)

7080742

$15.03
