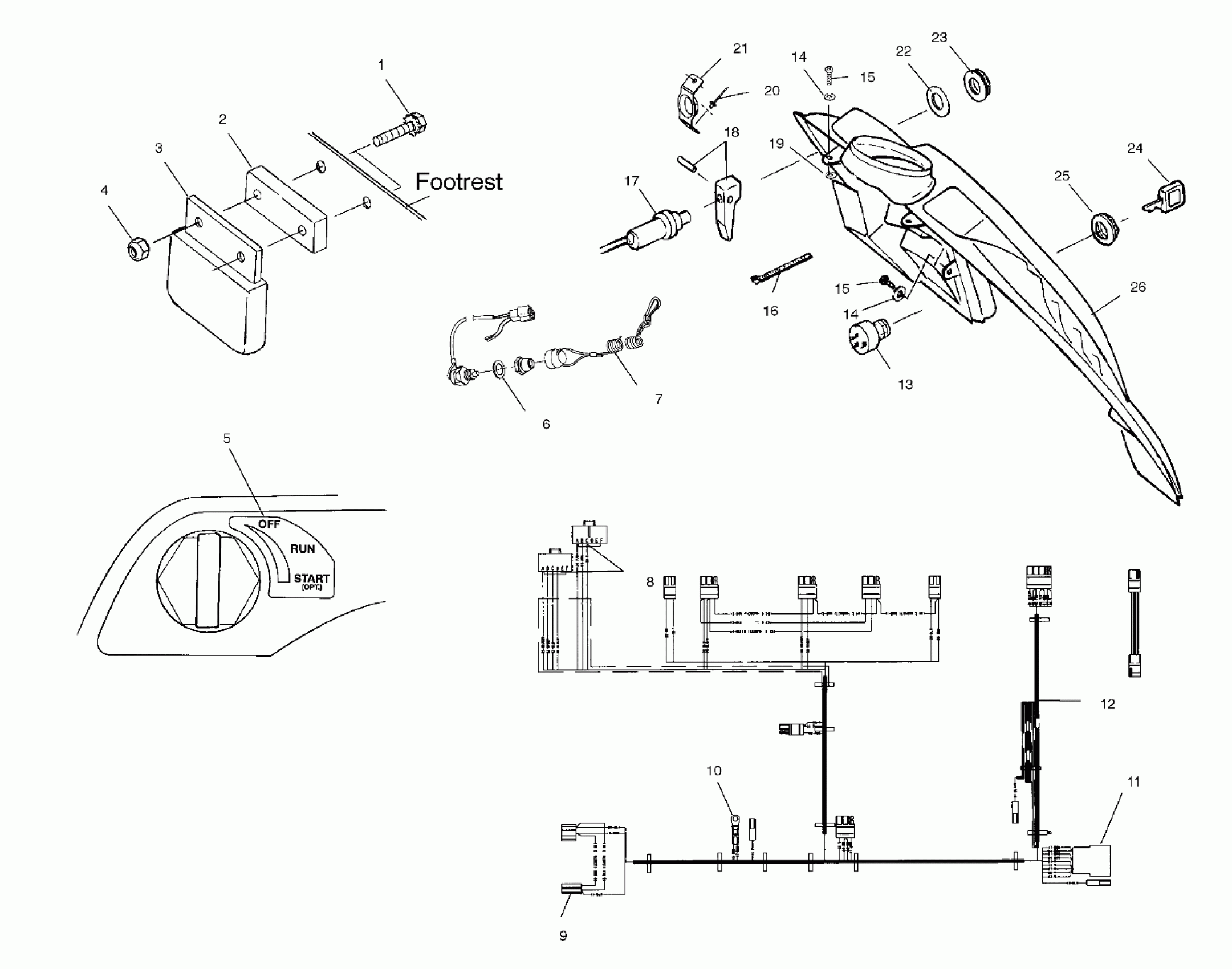

Polaris 700 SKS - 099SS7AS CONSOLE - E99SS7AU (4948514851a014) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

4

NUT(10)

7541925

$1.49

5

DECAL,CONSOLE,IGNITION

7077367

Unavailable

6

WASHER(10) (Euro)

7555817

Unavailable

7

SWITCH-TETHER,HYBRID (Euro)

4010187

Unavailable

8

SOCKET-PACKARD#12047767

4010192

Unavailable

9

HOUSING

4020063

$3.19

10

Terminal, Ring

4020092

Unavailable

11

Housing w/Receptacle

4020057

$3.51

12

HARNESS-MAIN WIRE,LO LEVEL Substituted by 2460733

2460703

$204.76

13

KIT,IGN.SWITCH

2200358

$76.89

14

WASHER(10)

7558203

$3.19

14

WASHER(10)

7558203

$3.19

15

SCREW(10)

7517441

$2.39

15

SCREW(10)

7517441

$2.39

16

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

17

CABLE,CHOKE (Incl. 18,23)

7080636

Unavailable

18

KIT-CHOKE CONTROL

2200188

$24.27

19

WASHER,NYLON

7555932

$2.39

20

RIVET, POP(50)

7621330

$1.49

21

GUIDE-RECOIL

5243049

$9.70

22

WASHER-LOCK(10)

7571610

$3.99

23

NUT,CHOKE

5432944

$8.79

24

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch bod

5410611

Unavailable

25

NUT,IGNITION

7547035

$8.79

26

CONSOLE-HYB,STD,W/PRIMER [US] NOTE: For units with a serial number in the 3400000 series, you must also order Ignition Jumper Harness PN 2460709.

5433143

Unavailable

26

CONSOLE-HYB,STD,EURO [Euro] NOTE: For units with a serial number in the 3400000 series, you must also order Ignition Jumper Harness PN 2460709.

5433152

Unavailable
