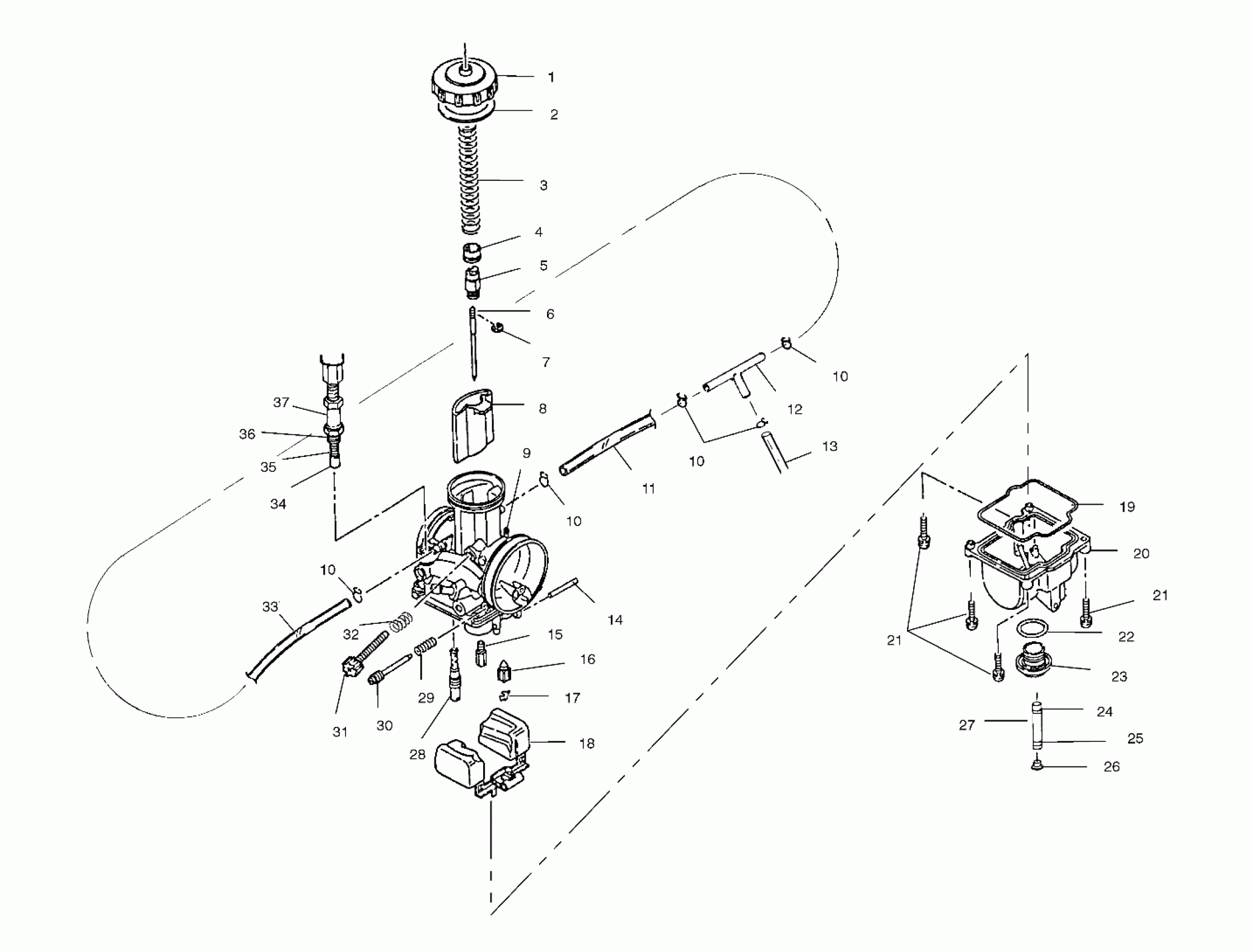

Polaris 700 SKS - 099SS7AS CARBURETOR - E99SS7AU (4948514851c014) Diagram

#

Description
Price

-

CARB.ASM,39MM,(99PWK-700XC) (PTO Side) (Incl. 1-23,28-37)

1253248

Unavailable

-

CARB,39MM 99PWK-700 XC MAG (Mag. Side) (Incl. 1-23,28-37)

1253263

Unavailable

1

TOP ASM, CARB.

3050224

$26.98

2

GASKET

3050225

$2.15

3

SPRING,THROTTLE

3050228

Unavailable

4

COLLAR

3050238

Unavailable

5

HOLDER, CABLE

3050223

$27.94

6

JET NEEDLE (R-1368G) (1368G)

3050244

Unavailable

7

CLIP,JET NEEDLE,(10)

3050222

Unavailable

8

VALVE,THROTTLE,KHN.

3050234-E02

$118.08

9

CAP-RUBBER

3050274

Unavailable

10

CLIP

3050233

Unavailable

10

CLIP

3050233

Unavailable

10

CLIP

3050233

Unavailable

10

CLIP

3050233

Unavailable

11

PIPE,BOWL VENT

3050242

Unavailable

12

T-JOINT

3050243

$12.39

13

VENT,BOWL,(SHORT)

3050248

Unavailable

14

PIN,FLOAT

3050232

$8.89

15

MAIN JET,KHN. (#185 PTO)

3050235-185

Unavailable

15

MAIN JET,KHN. (#190 Mag)

3050235-190

Unavailable

16

VALVE-FLOAT

3050273

$44.51

17

CLIP,FLOAT VALVE

3050229

$8.79

18

FLOAT,KHN.

3050213

Unavailable

19

GASKET,FLOAT BOWL

3050215

$20.22

20

CHAMBER-FLOAT

3050272

$53.17

21

SCREW,FLOAT BOWL,(10)

3050230

Unavailable

21

SCREW,FLOAT BOWL,(10)

3050230

Unavailable

22

O-RING,PLUG SCREW

3050217

$4.84

23

PLUG,SCREW

3050216

Unavailable

24

CLAMP,SPRING,(10)

7080534

$1.59

25

CLAMP,HOSE(10)

7080544

Unavailable

26

PLUG,TRAP

5431893

$12.94

27

DESC NOT_AVAILABLE

8450045-08

Unavailable

28

PILOT JET,KHN. (#38)

3050219-38

Unavailable

29

SPRING

3050227

Unavailable

30

SCREW,AIR ADJUST

3050226

Unavailable

31

ADJUSTER-IDLE,1034-867-7001

3050257

$32.37

32

SPRING

3050237

Unavailable

33

PIPE,BOWL VENT

3050231

Unavailable

34

VALVE,STARTER

3050212

Unavailable

35

SPRING

3050240

Unavailable

36

O-RING

3050241

Unavailable

37

CAP,STARTER

3050239

Unavailable
