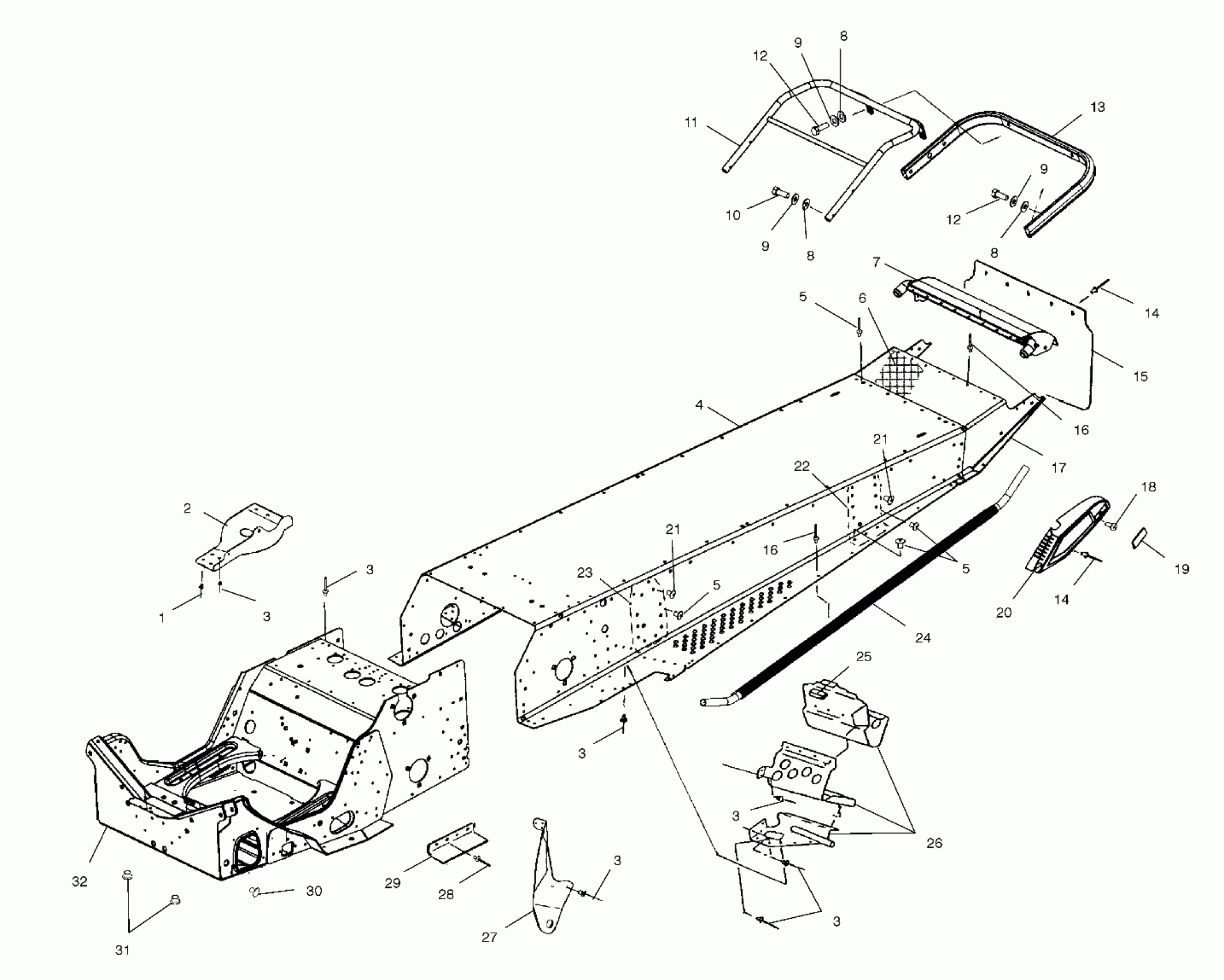

Polaris 700 RMK - S00SR7AS TUNNEL - S00SR7ASA (4954105410a005) Diagram

#

Description
Price

1

RIVET,INTERLOCK(50) Substituted by 7661130

7661639

Unavailable

2

GUARD-CHAINCASE SUMP,TUNNEL

5243419

$20.63

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

4

TUNNEL,ASM,LWT,RMK (Incl. 7,22,23)

1013208

Unavailable

5

RIVET ,(50)

7661837

$1.49

5

RIVET ,(50)

7661837

$1.49

5

RIVET ,(50)

7661837

$1.49

6

PROTECTOR-BED,RMK

5411776

$23.19

7

EXCHANGER REAR CROSSOVER

1240053

$149.99

8

WASHER(10)

7558301

$1.49

8

WASHER(10)

7558301

$1.49

8

WASHER(10)

7558301

$1.49

9

LOCK WASHER(10)

7552801

$1.59

9

LOCK WASHER(10)

7552801

$1.59

9

LOCK WASHER(10)

7552801

$1.59

10

SCREW(10)

7512126

$4.79

11

RACK,RMK,BLK

1013130-067

Unavailable

12

BOLT(10)

7512240

$3.99

12

BOLT(10)

7512240

$3.99

13

BUMPER,REAR Substituted by 2670168-067

2670168

Unavailable

14

POP RIVET(50)

7621418

$1.49

14

POP RIVET(50)

7621418

$1.49

15

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

16

RIVET-3/16(.039-250)(50)

7661079

Unavailable

16

RIVET-3/16(.039-250)(50)

7661079

Unavailable

17

CLOSE-OFF

5243390

Unavailable

18

SCREW(10)

7512017

$4.79

19

REFLECTOR ASM,RED

2670133

$5.75

20

OBS-SKIRT-SNOW,BLK,LH Substituted by 5433361-070

5433361-067

Unavailable

20

DESC NOT_AVAILABLE

5433362-067

Unavailable

21

RIVET ,(50)

7661836

$0.63

21

RIVET ,(50)

7661836

$0.63

22

WELD-SUSP,BRKT,REAR,BLK,LH

1012929-067

$31.99

22

BRKT,REAR,SUSP,RH,BLK

1012937-067

Unavailable

23

PAD,FRONT,SUSPENSION

5244287-067

Unavailable

24

EXTRUSION GRIPPER/DE-ICER

1240058

$298.99

25

EXTRUSION,CLUTCHGUARD

5521238

$6.46

26

FOOTREST,LH

1013004

Unavailable

26

FOOTREST,ASM.RH

1013005

$87.52

27

BRACE-FOOTREST/TRLG-ARM,MNT,LH Substituted by 5242494-067

5242494

Unavailable

27

BRACE,FTRST/TR.ARM,MNT,RH Substituted by 5242495-067

5242495

Unavailable

28

RIVET(50)

7621452

$1.49

29

GUARD,ADAPTER GUIDE

5222857

$12.94

30

PLUG, HOLE(10)

7080416

$5.65

31

PLUG-HOLE

7080398

$4.84

32

BULKHEAD,CRC,GEN 2 Substituted by 1013358-067

1013102-067

Unavailable
