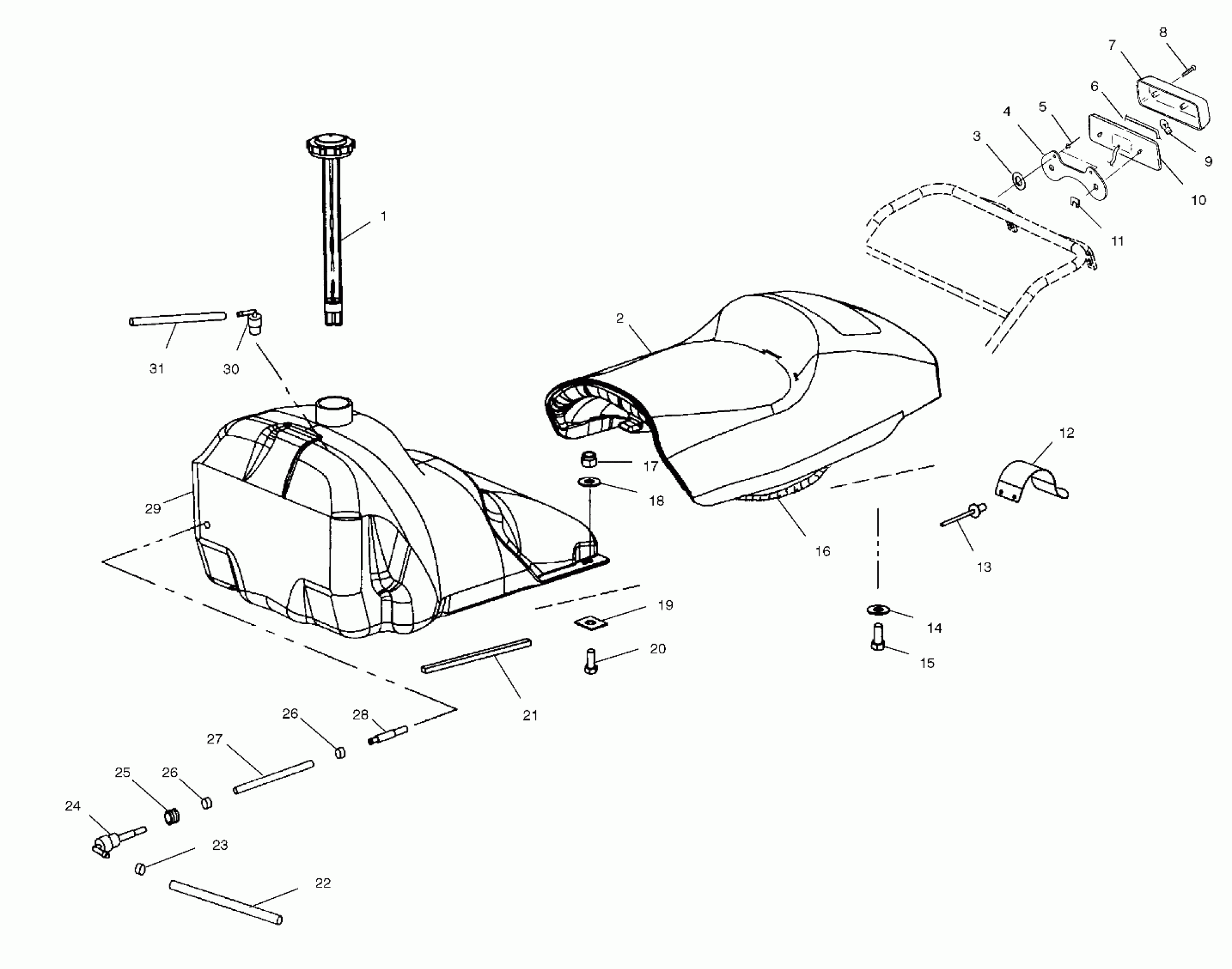

Polaris 700 RMK - S00SR7AS SEAT AND GAS TANK - S00SR7ASA (4954105410a006) Diagram

#

Description
Price

-

TAILLIGHT ASM. (Incl. 4-11)

2433009

$86.51

1

CAP,FUEL,12.5,W/GAUGE

1240066

Unavailable

2

SEAT CUSHION,GEN II,RMK ASM. (Incl. 2-12,16)

2682509

Unavailable

2

COVER,SEAT

2682510

Unavailable

3

WASHER

7556034

$2.39

4

MOUNT-TAILLIGHT

5811832

Unavailable

5

RIVET,(50)

7621341

Unavailable

6

GASKET,T/L&STOP/L

4032086

Unavailable

7

LENS,STOP&T/L.

4032085

$36.41

8

SCREW,TAIL LIGHT

7512088

$2.39

9

BULB,TAILLIGHT

4030043

$6.46

10

BACKING,(STOP&TAIL)

4032087

Unavailable

11

CLIP, RETAINER(10)

7670093

$5.99

12

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

13

RIVET(50)

7621472

$1.49

14

WASHER(10)

7558301

$1.49

15

SCREW(10)

7512242

$2.39

16

JUMPER,SEAT,TAIL LIGHT

2460686

$15.67

16

HARNESS-TAILIGHT,RMK

2460747

$24.60

17

NUT-LOCK(10)

7542122

$1.49

18

WASHER(10)

7555960

$3.99

19

SPEED NUT(10)

7670021

$6.99

20

BOLT(10)

7512193

$2.39

21

PAD-GAS TANK

5810063

$4.95

22

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

FITTING,1/4" 90� DEX

7052259

Unavailable

25

GROMMET-TANK FITTING(10)

7052028

$6.39

26

RING, COMPRESSION(10)

7080402

$1.60

26

RING, COMPRESSION(10)

7080402

$1.60

27

FUEL LINE-ESTER Substituted by 8350019-160

8350019-600

Unavailable

28

FUEL PICKUP,W/FILTER Substituted by 7052301

7052243

Unavailable

29

FUEL TANK,EDGE

2520150

$219.99

30

FITTING,90 DEG,1/8,(10)

7052095

$4.79

31

FUELLINE,3MMX7MM

8450061-600

Unavailable
