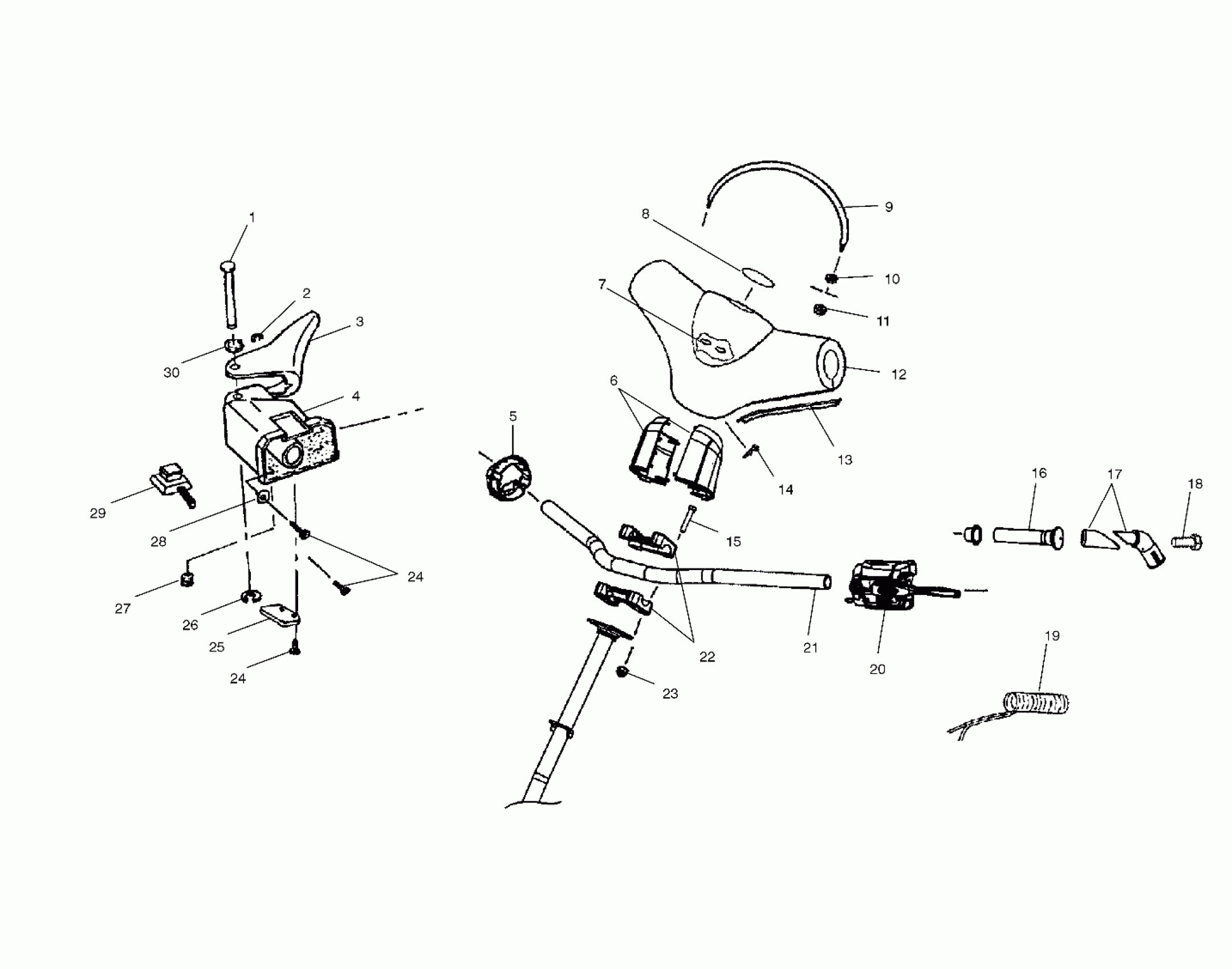

Polaris 700 RMK F/O 151 - S02NL7CS STEERING/HANDLEBAR - S02NL7CS (4970627062B02) Diagram

#

Description
Price

1

PIN-RETAINING .186X1.780-AL

7661624

$12.79

2

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

3

LEVER, THROTTLE

5432970

$29.03

3

Lever w/Heater

2010171

$84.98

4

BLOCK, THROTTLE/BRAKE

5431592

$49.99

5

Adaptor, Block

5433345

$15.99

6

Collar, Console, LH

5434145

Unavailable

6

Collar, Console, RH

5434146

Unavailable

7

Nut, Push-On

7670106

$2.39

8

Emblem, Star

5434179

Unavailable

9

Bar, Mountain

5243396-293

Unavailable

10

Nut, Jam

7547107

$3.99

11

NUT, NYLOK

7542344

$3.99

12

Cover, Handlebar

5433330

Unavailable

13

Slide, Cover

5433160-070

$28.32

14

Clip, Dart

4010287

$3.99

15

SCREW

7517238

$4.79

16

Grip, Handlebar Cut

5411692

Unavailable

17

Asm., Handlebar Hook, Red

2872482-293

Unavailable

18

SCREW, SOCKET HEAD

7517834

$7.19

19

Heater, Grip, Lo/Med/Hi

2460677

$60.70

20

ASM., CONTROL, LH [SEE BRAKE PG. A13, REF. 13]

-------

Unavailable

21

Handlebar

1820717-067

Unavailable

22

Block, Handlebar

5630187-067

$44.99

23

Nut, Nylok

7542122

$1.49

24

Screw

7511848

$3.99

24

Screw

7511848

$3.99

25

HOLDER, WIRE

5432261

$24.27

26

RING-RETAINING EXTERNAL

7710401

$3.99

27

SCREW, SET

7512465

$3.99

28

WASHER

7555727

$1.49

29

Switch, Auxiliary Shut-Off

4110106

$94.99

30

WASHER

7555730

$3.99
