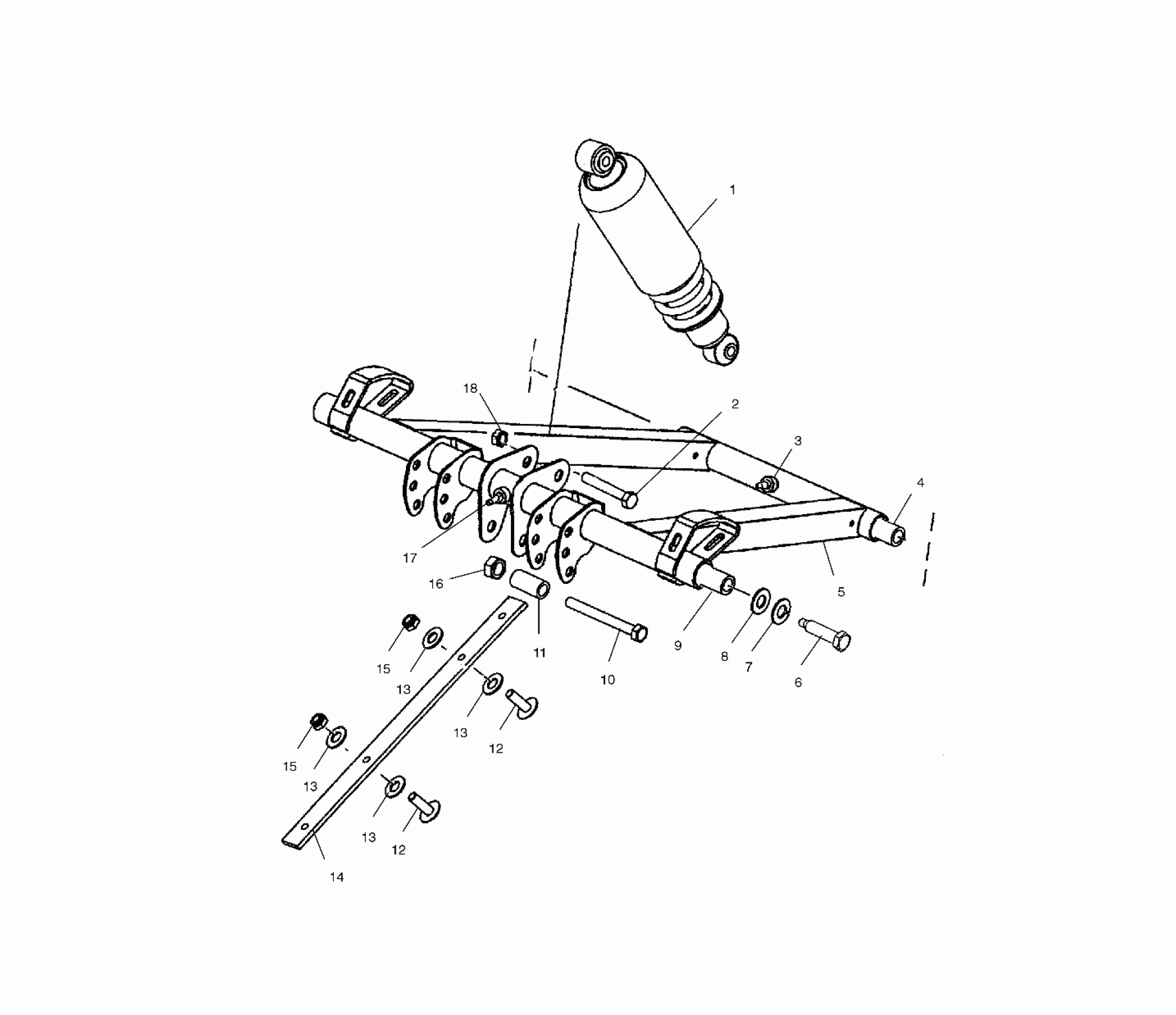

Polaris 700 RMK F/O 151 - S02NL7CS FRONT TORQUE ARM - S02NL7CS (4970627062B09) Diagram

#

Description
Price

1

SHIELD, SPRING

5433503

$24.27

1

Retainer, Spring, Slotted

5630580

Unavailable

1

RETAINER, SPRING

5245067

$23.99

1

Spring, Compression

7042050-067

$106.49

1

Shock, Front Track

7042084

Unavailable

2

SCREW

7512410

Unavailable

3

FITTING-LUBRICATION 1/4-28

7080424

$4.79

4

SHAFT

5334026

$28.32

5

Arm, Torque, Front, Yellow

1541613-216

Unavailable

6

Screw

7517435

$14.99

7

Washer, Spring Lock

7552603

$1.49

8

Washer, Flat

7555893

$1.49

9

Shaft

5020908

$69.99

10

Bolt

7512329

$3.99

11

BUSHING

5333522

$9.70

12

SCREW

7517313

$4.79

12

SCREW

7517313

$4.79

13

Washer, Flat

7556175

$5.99

13

Washer, Flat

7556175

$5.99

13

Washer, Flat

7556175

$5.99

13

Washer, Flat

7556175

$5.99

14

Strap, Limiter

5812282

$32.37

15

NUT, NYLOK

7542344

$3.99

15

NUT, NYLOK

7542344

$3.99

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

17

FITTING, ZERK

7080510

$5.59

18

Nut, FLEXLOC

7542411

$3.19
