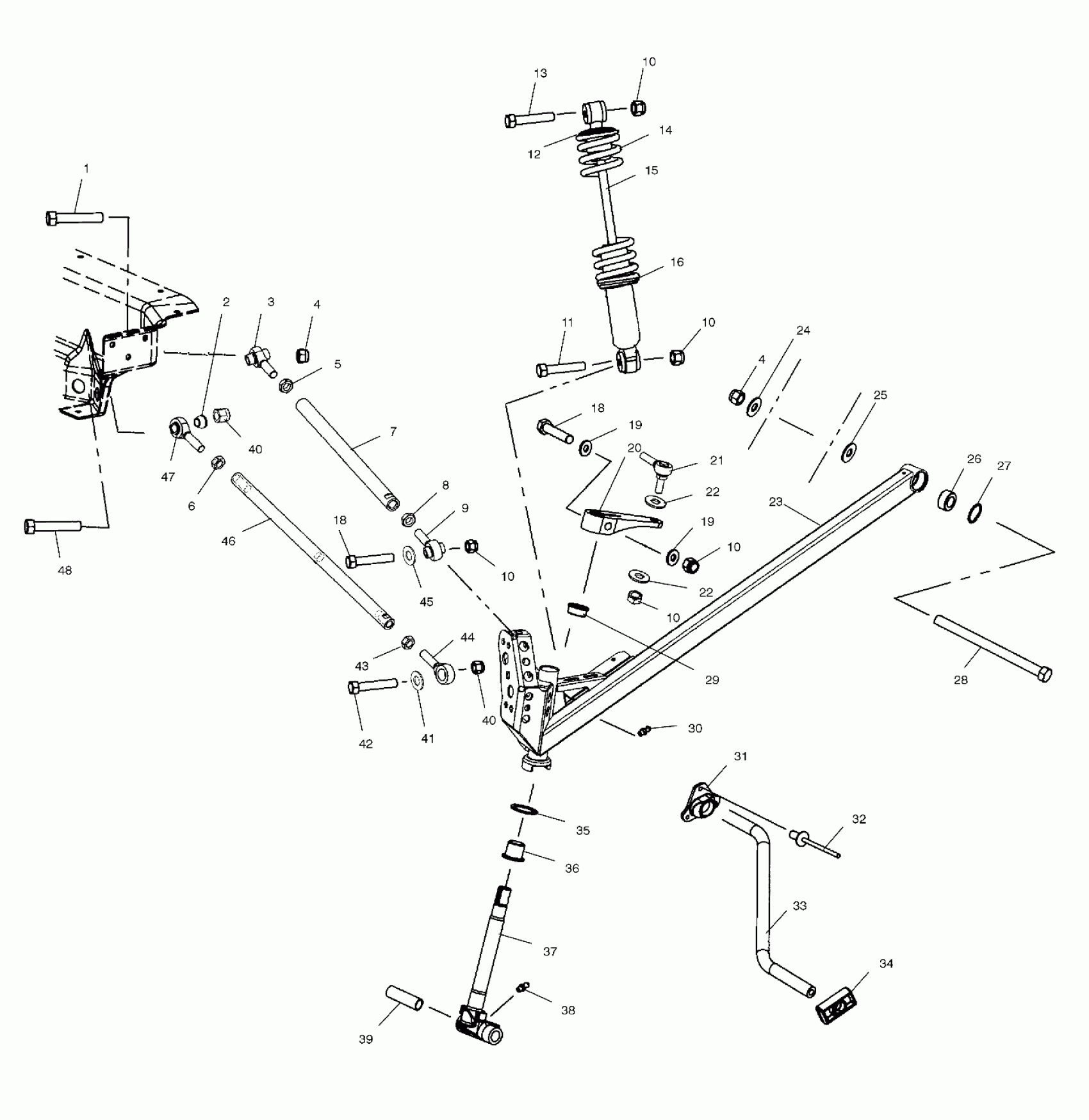

Polaris 700 RMK F/O 151 - S02NL7CS FRONT SUSPENSION - S02NL7CS (4970627062B05) Diagram

#

Description
Price

1

Bolt

7517980

$7.99

2

Bushing, Spacer

5132454

Unavailable

3

Rod End, LH

7061081

Unavailable

4

Nut, Nylok

7547066

$1.59

4

Nut, Nylok

7547066

$1.59

5

Nut, Jam, LH

7547117

Unavailable

6

Nut, Jam

7547028

$2.39

7

Tube, Radius, Upper

5133137

$104.99

8

Nut, Jam

7542520

$2.39

9

Rod End

7061061

$48.56

10

Nut, Nylok

7542439

$1.49

10

Nut, Nylok

7542439

$1.49

10

Nut, Nylok

7542439

$1.49

10

Nut, Nylok

7542439

$1.49

10

Nut, Nylok

7542439

$1.49

11

Screw

7515433

$1.59

12

Retainer, Spring, Slotted

5630580

Unavailable

13

Screw

7515415

$1.49

14

Spring, Compression

7041551-067

$74.99

15

Shock, IFS, Arvin, IFP [See Shock (IFS) Page for Service Components]

7042059

Unavailable

16

Nut, Spring Retainer

-------

Unavailable

18

SCREW

7517583

$4.35

19

WSHR-.813X.406X.105-Y

7555832

$2.39

19

WSHR-.813X.406X.105-Y

7555832

$2.39

19

WSHR-.813X.406X.105-Y

7555832

$2.39

20

Arm, Steering

5133060

$70.39

21

Rod End, RH

7061086

$48.56

22

Washer, Flat

7555797

$3.99

22

Washer, Flat

7555797

$3.99

23

Asm., Trailing Arm, Red, LH [Incl. 26,27]

1821201-293

$291.41

23

Asm., Trailing Arm, Red, RH [Incl. 26,27]

1821202-293

Unavailable

23

Asm., Trailing Arm, Yellow, LH [Incl. 26,27]

1821201-216

Unavailable

23

Asm., Trailing Arm, Yellow, RH [Incl. 26,27]

1821202-216

Unavailable

24

WASHER, FLAT

7555820

$3.99

25

Cup, Mount, Trailing Arm

5132364

$20.22

26

Bearing, Spherical

7061042

$31.99

27

Ring, Retaining

7710437

$3.19

28

Screw

7512099

$19.99

29

Bushing

3573909

$2.39

30

Fitting, Lubrication

7080433

$1.49

31

Bushing, Torsion Bar

5433814

$23.99

32

Rivet

7621452

$1.49

33

Bar, Torsion

5245217-067

Unavailable

34

Slide, Torsion Bar

5433885

Unavailable

35

Bushing

7556509

$1.59

36

BUSHING, FLANGED

3574208

$3.19

37

Shaft w/Steering Stop, Spindle

6230225-067

$219.99

38

Fitting, Lubrication

7080306

$3.19

39

Bushing

5010158

$19.99

40

Nut, Nylok

7547065

$3.99

40

Nut, Nylok

7547065

$3.99

41

Washer

7556213

$3.17

42

Bolt

7517906

Unavailable

43

Nut, Jam

7542711

$2.39

44

Rod End

7061052

$48.56

45

WASHER

7556153

$1.99

46

Tube, Radius, Lower

5132953

Unavailable

47

Rod End

7061087

$144.99

48

Bolt

7517981

$4.13
