Description

Price

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING, COVER

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING, CLUTCH, BLACK/GREEN

7042083

$56.65

6

WASHER,MULTILUBE

5430945

$1.59

6

WASHER,MULTILUBE

5430945

$1.59

7

ASM-ROLLER AND BUSHING

1321622

$32.37

8

BUTTON, GUIDE

5430445

$6.39

8

BUTTON, GUIDE

5430445

$6.39

9

Weight/Bushing, 10-56

1321684

$59.99

10

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

11

Bearing, Sleeve

3576502

$23.99

12

INSERT-MOVEABLE

5010188

$7.99

13

NUT, FLEXLOC

7541906

$3.19

14

Spacer [.050mm]

5210754

Unavailable

14

Spacer [.025 mm]

5242981

Unavailable

14

Spacer [.020mm]

5210752

Unavailable

14

Spacer [.032mm]

5210753

Unavailable

15

NUT-JAM

5020425

$23.99

16

PIN, ROLLER

5133079

$6.39

17

Kit - Shim, Drive Clutch

2200387

$24.27

18

Asm., Drive Clutch, Basic 114 [Incl. All Less 5,9]

1321928

$699.99

18

Kit, Wide Roller Spider Rebuild [Incl. 6-8,10,16,17]

2201169

$169.98

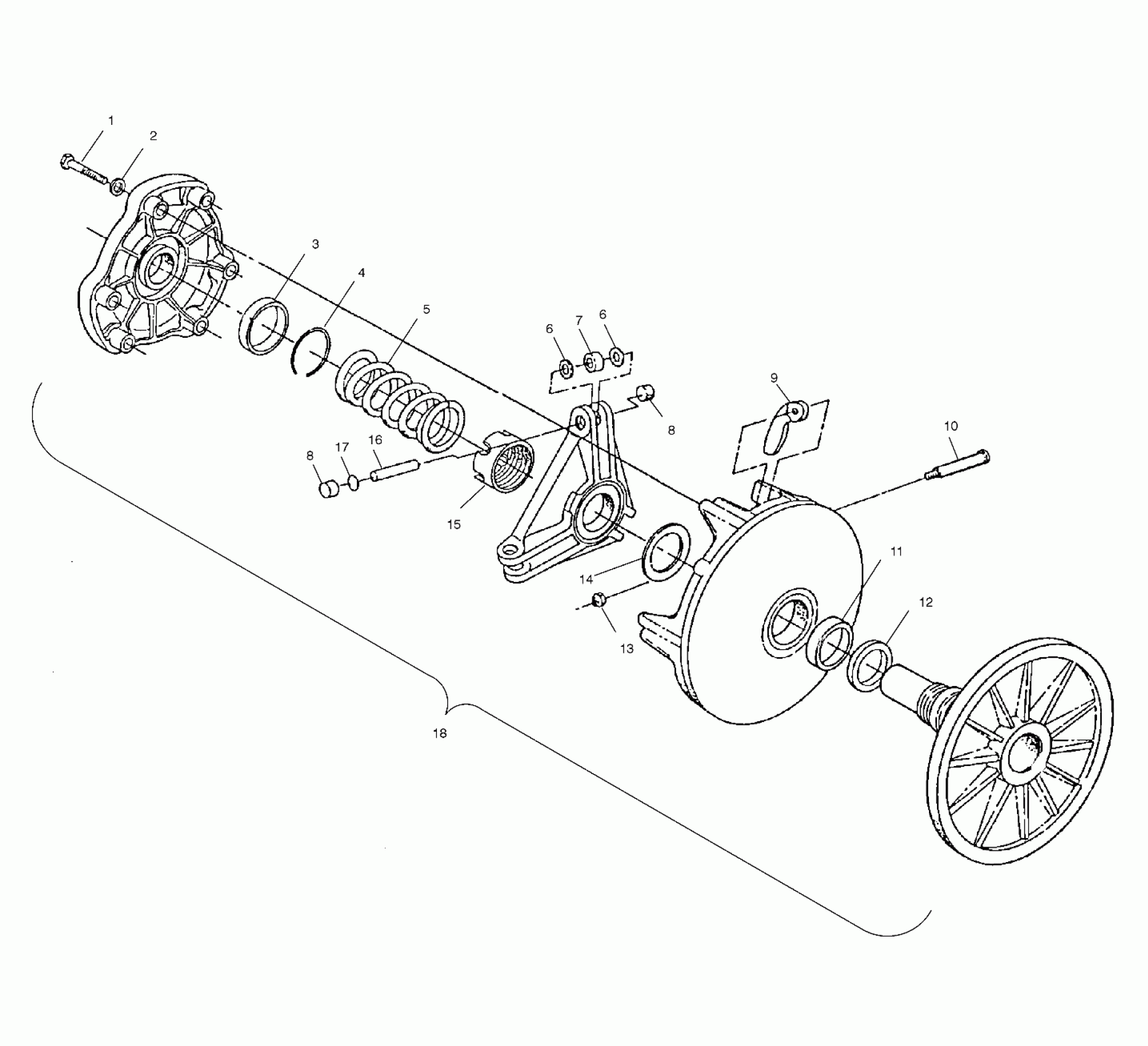

Polaris 700 RMK F/O 151 - S02NL7CS DRIVE CLUTCH - S02NL7CS (4970627062B13) Diagram

Bolt

WASHER, SPRING LOCK

BEARING, COVER

RING-RETAINING,COVER

SPRING, CLUTCH, BLACK/GREEN

WASHER,MULTILUBE

WASHER,MULTILUBE

ASM-ROLLER AND BUSHING

BUTTON, GUIDE

BUTTON, GUIDE

Weight/Bushing, 10-56

PIN-WEIGHT,HARDENED,1/4X2.00

Bearing, Sleeve

INSERT-MOVEABLE

NUT, FLEXLOC

Spacer [.050mm]

Spacer [.025 mm]

Spacer [.020mm]

Spacer [.032mm]

NUT-JAM

PIN, ROLLER

Kit - Shim, Drive Clutch

Asm., Drive Clutch, Basic 114 [Incl. All Less 5,9]

Kit, Wide Roller Spider Rebuild [Incl. 6-8,10,16,17]
