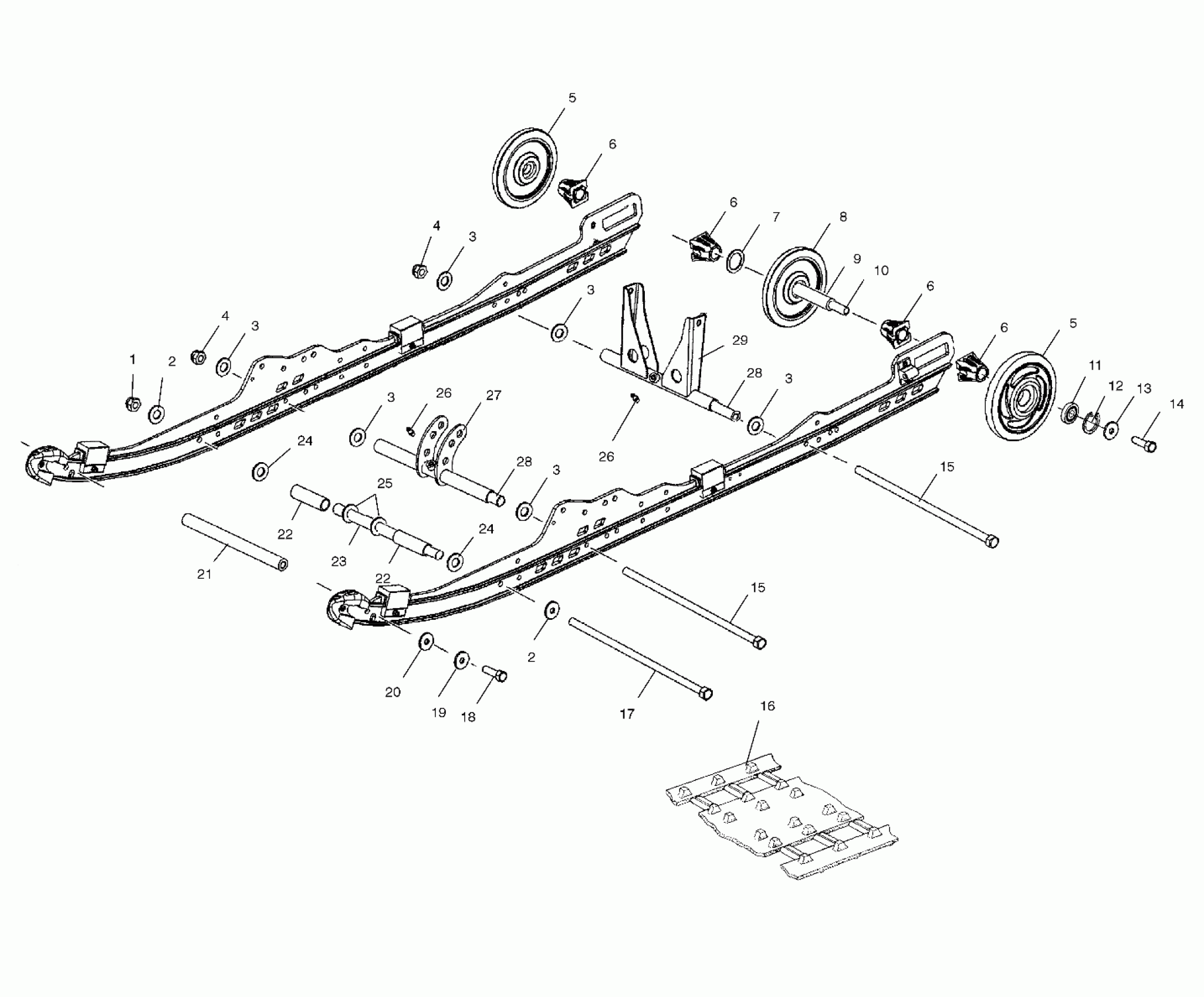

Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 - S02NK7CS SUSPENSION - S02NK7CS (4972287228B06) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

2

Washer, Flat

7555923

$2.39

2

Washer, Flat

7555923

$2.39

3

Washer, Flat

7555958

$4.99

3

Washer, Flat

7555958

$4.99

3

Washer, Flat

7555958

$4.99

3

Washer, Flat

7555958

$4.99

3

Washer, Flat

7555958

$4.99

3

Washer, Flat

7555958

$4.99

4

Nut, Nylok

7547064

Unavailable

4

Nut, Nylok

7547064

Unavailable

5

Wheel, Idler, Red

1590303-293

$48.56

5

Wheel, Idler, Red

1590303-293

$48.56

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

7

BUSHING

7555918

$1.59

8

Wheel

1594087

$72.84

9

SPACER-IDLER, LONG

5333285

$11.99

10

SHAFT, IDLER

5020744

$59.99

11

Bearing

3514012

Unavailable

12

RING-RETAINING

7710444

$8.79

13

WASHER, BELLE

7556130

$6.39

14

BOLT

7517731

$1.49

15

Screw

7517207

Unavailable

15

Screw

7517207

Unavailable

16

Track

5411915

Unavailable

17

Screw

7517353

Unavailable

18

Screw

7517247

$3.19

19

Washer, Spring Lock

7552603

$1.49

20

Washer, Flat

7555806

$1.49

21

Shaft

5020868

Unavailable

22

Spacer, Shock Centering

5334002

Unavailable

22

Spacer, Shock Centering

5334002

Unavailable

23

Shaft

5132934

Unavailable

24

WSHR-.813X.406X.105-Y

7555832

$2.39

24

WSHR-.813X.406X.105-Y

7555832

$2.39

25

Washer, Flat

7555726

$1.59

26

FITTING-LUBRICATION 1/4-28

7080424

$4.79

26

FITTING-LUBRICATION 1/4-28

7080424

$4.79

27

Arm, Pivot, Shock

1541635

Unavailable

28

Tube

5334042

Unavailable

28

Tube

5334042

Unavailable

29

Arm, Pivot, Rear

1541614

Unavailable
