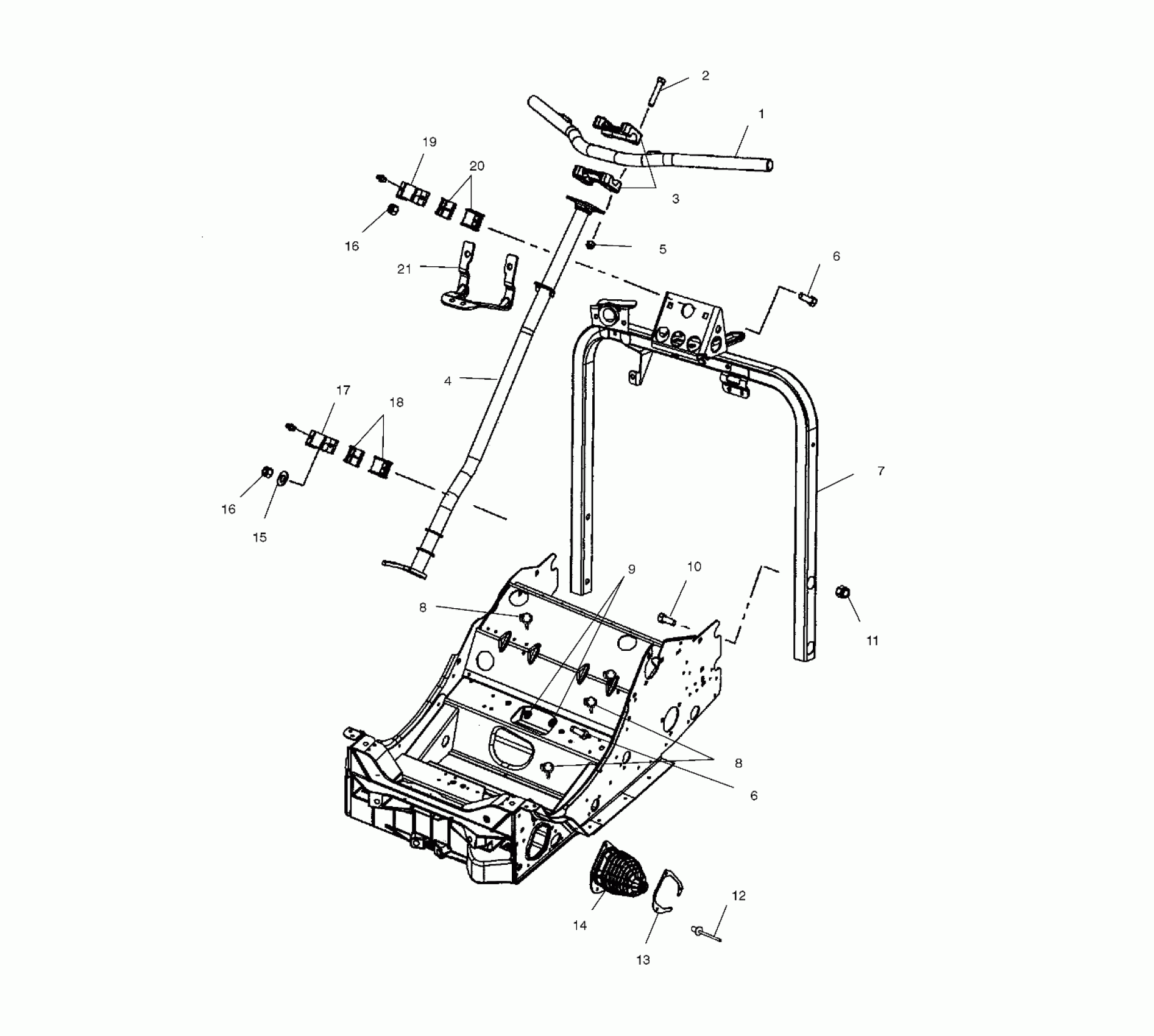

Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 - S02NK7CS STEERING/HANDLEBAR - S02NK7CS (4972287228B04) Diagram

#

Description
Price

1

Handlebar

1820717-067

Unavailable

2

SCREW

7517238

$4.79

3

Block, Handlebar

5630187-067

$44.99

4

Post, Steering

1821060-067

$194.99

5

Nut, Nylok

7542122

$1.49

6

BOLT, CARRIAGE

7517579

$6.39

6

BOLT, CARRIAGE

7517579

$6.39

7

Hoop, Steering

1013444-067

Unavailable

8

CLIP, ROSEBUD

4020139

$4.79

8

CLIP, ROSEBUD

4020139

$4.79

9

Nut, Push

7547030

$4.79

10

Bolt, Carriage

7512377

$4.79

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

12

Rivet

7621433

$1.49

13

Plate, Tie Rod Boot

5244470

Unavailable

14

Boot, Tie Rod, LH

5433532

Unavailable

14

Boot, Tie Rod, RH

5433533

Unavailable

15

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

17

FITTING-LUBRICATION 1/4-28

7080424

$4.79

17

Bracket, Steering Post

5131841

Unavailable

18

Bushing

5432785

$6.39

19

BRACKET, STEERING POST

5132967

$36.41

20

Bushing

5434167

Unavailable

21

Bracket, Console, Front

5245373

$13.99
