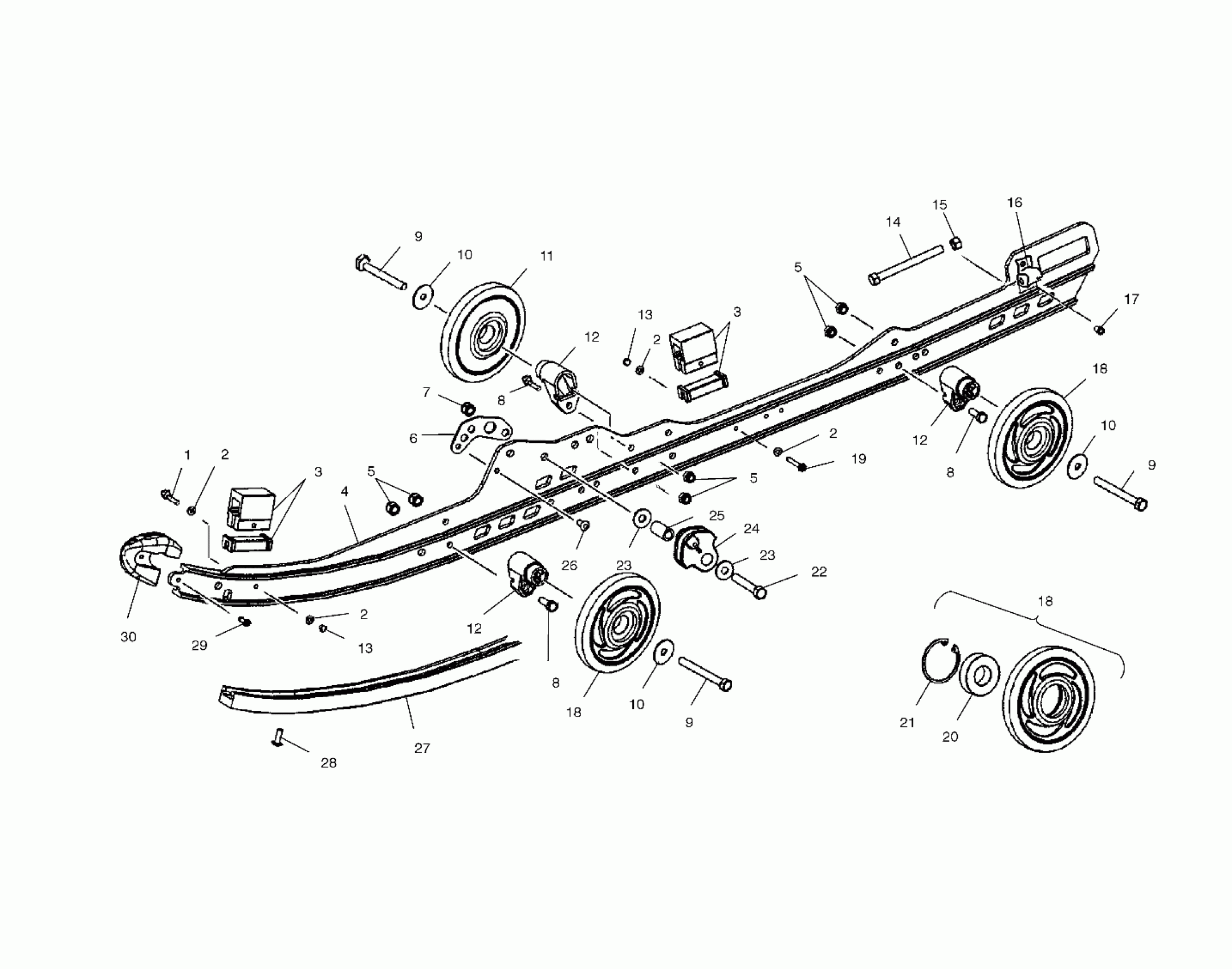

Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 - S02NK7CS RAIL MOUNTING (SUSPENSION) - S02NK7CS (4972287228B07) Diagram

#

Description
Price

1

Screw

7510504

$6.76

2

Washer, Flat

7555783

$3.99

2

Washer, Flat

7555783

$3.99

2

Washer, Flat

7555783

$3.99

2

Washer, Flat

7555783

$3.99

3

Bumper, Jounce

5521498

$8.89

3

LINER-BUMPER

5432946

$9.70

3

Bumper, Jounce

5521498

$8.89

3

LINER-BUMPER

5432946

$9.70

4

Rail, LH [Incl. 1,2,3,4,16,17,29,30]

1541611

Unavailable

4

Rail, RH [Incl. 1,2,3,4,16,17,29,30]

1541612

$364.99

5

NUT-5/16-18 NYLOK-Y

7542324

$1.49

5

NUT-5/16-18 NYLOK-Y

7542324

$1.49

5

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

Bracket, Rail Reinforcement

5245411

$9.70

7

Nut, Nylok

7542439

$1.49

8

BOLT

7515317

$4.79

8

BOLT

7515317

$4.79

8

BOLT

7515317

$4.79

9

Screw

7515346

$5.59

9

Screw

7515346

$5.59

9

Screw

7515346

$5.59

10

Washer, Spring

7556179

$7.99

10

Washer, Spring

7556179

$7.99

10

Washer, Spring

7556179

$7.99

11

Asm., Bogie Wheel

1590317

$48.56

12

Block, Wheel Mount

5631065

$28.32

12

Block, Wheel Mount

5631065

$28.32

12

Block, Wheel Mount

5631065

$28.32

13

Nut, Nylok

7541925

$1.49

13

Nut, Nylok

7541925

$1.49

14

SCREW

7517227

$7.19

15

NUT

7542404

$1.59

16

Bracket, Idler Bolt Adjust

5130530

$32.37

17

RIVET

7621501

$2.39

18

Asm., Wheel, Scrolled [Incl. 20,21]

1590318-293

Unavailable

18

Asm., Wheel, Scrolled [Incl. 20,21]

1590318-293

Unavailable

18

Asm., Wheel, Scrolled [Incl. 20,21]

1590318-293

Unavailable

19

Screw

7510504

$6.76

20

BEARING [1 PER WHEEL]

3514303

$11.99

21

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

22

Screw

7515438

$4.79

23

WASHER

7555983

Unavailable

23

WASHER

7555983

Unavailable

24

Guide, Spring, Square

5433922

Unavailable

25

SPACER

5333948

$6.39

26

RIVET

7661845

$1.49

27

Hi-Fax

5521580-309

$40.46

28

Screw

7515199

$1.49

29

RIVET

7621435

$1.49

30

Cap, Rail Tip

5434168

Unavailable
