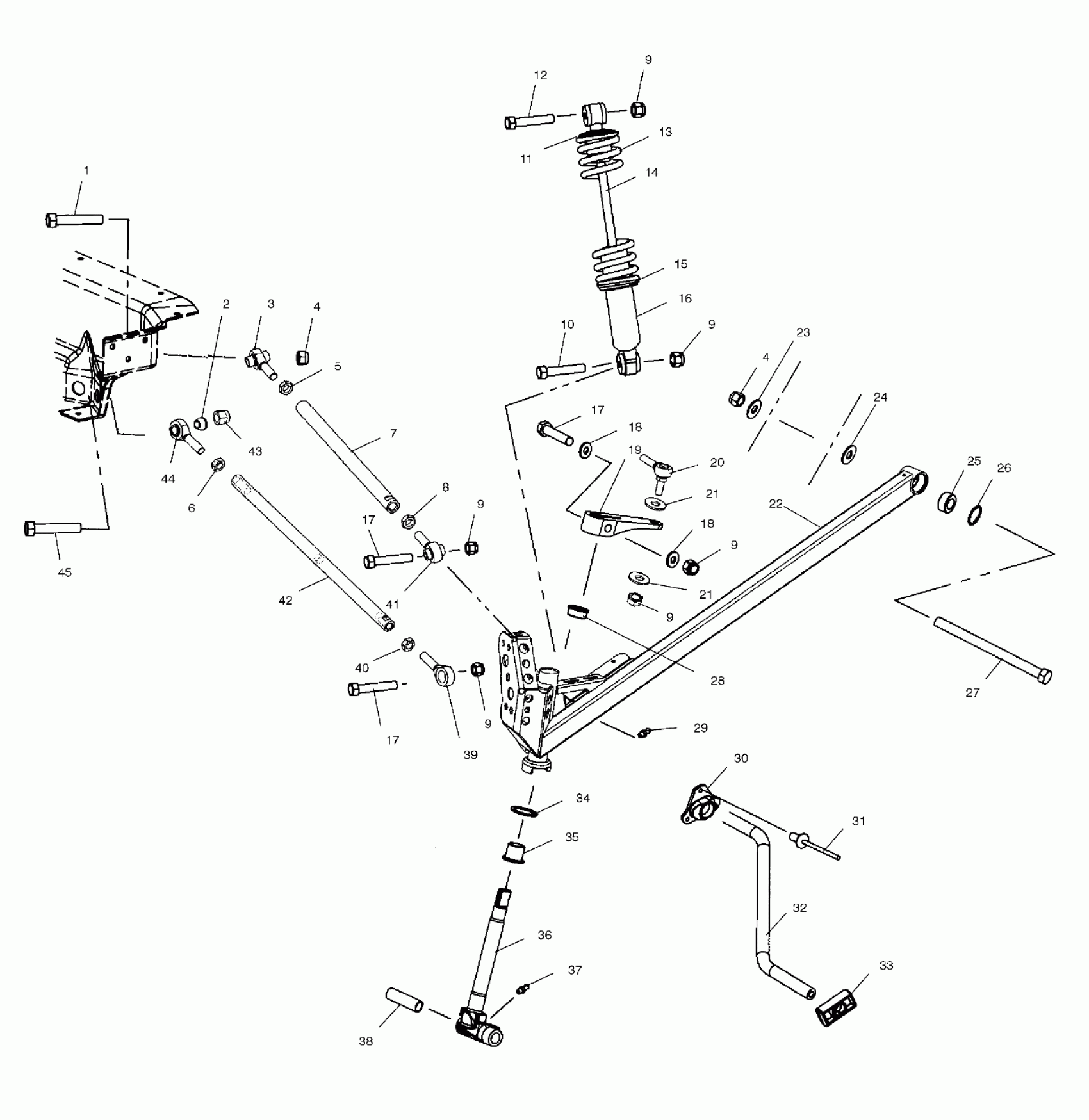

Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 - S02NK7CS FRONT SUSPENSION - S02NK7CS (4972287228B01) Diagram

#

Description
Price

1

Bolt

7512597

$4.99

2

Bushing, Spacer

5132454

Unavailable

3

Rod End, LH

7061081

Unavailable

4

Nut, Nylok

7547066

$1.59

4

Nut, Nylok

7547066

$1.59

5

Nut, Jam, LH

7547117

Unavailable

6

Nut, Jam

7547028

$2.39

7

Tube, Radius, Upper

5133137

$104.99

8

Nut, Jam

7542520

$2.39

9

Nut, Nylok

7542439

$1.49

9

Nut, Nylok

7542439

$1.49

9

Nut, Nylok

7542439

$1.49

9

Nut, Nylok

7542439

$1.49

9

Nut, Nylok

7542439

$1.49

9

Nut, Nylok

7542439

$1.49

10

Screw

7515433

$1.59

11

Retainer, Spring, Slotted

5630580

Unavailable

12

Screw

7515415

$1.49

13

Spring, Compression

7041551-293

Unavailable

14

Shock, Gas, Select, IFS

7041966

Unavailable

15

Ring, Spring Preload

5431734

$52.60

16

RETAINER, SPRING BODY, THREADED

1500063

$44.51

17

SCREW

7517583

$4.35

17

SCREW

7517583

$4.35

17

SCREW

7517583

$4.35

18

WSHR-.813X.406X.105-Y

7555832

$2.39

18

WSHR-.813X.406X.105-Y

7555832

$2.39

19

Arm, Steering

5133060

$70.39

20

Rod End, RH

7061086

$48.56

21

Washer, Flat

7555797

$3.99

21

Washer, Flat

7555797

$3.99

22

Asm., Trailing Arm, Red, LH [Incl. 25,26]

1820942-293

$291.41

22

Asm., Trailing Arm, Red, RH [Incl. 25,26]

1820943-293

Unavailable

23

WASHER, FLAT

7555820

$3.99

24

Cup, Mount, Trailing Arm

5132364

$20.22

25

Bearing, Spherical

7061016

Unavailable

26

Ring, Retaining

7710437

$3.19

27

Screw

7512099

$19.99

28

Bushing

3573909

$2.39

29

Fitting, Lubrication

7080433

$1.49

30

Bushing, Torsion Bar

5433814

$23.99

31

Rivet

7621477

$1.19

32

Bar, Torsion

5245217-067

Unavailable

33

Slide, Torsion Bar

5433885

Unavailable

34

Bushing

7556509

$1.59

35

BUSHING, FLANGED

3574208

$3.19

36

Shaft, Spindle

6230155-067

$124.99

37

Fitting, Lubrication

7080306

$3.19

38

Bushing

5010158

$19.99

39

Rod End

7061060

$48.56

40

Nut, Jam

7542711

$2.39

41

Rod End

7061061

$48.56

42

Tube, Radius, Lower

5132953

Unavailable

43

Nut, Nylok

7547065

$3.99

44

Rod End

7061082

$144.99

45

Bolt

7512684

Unavailable
