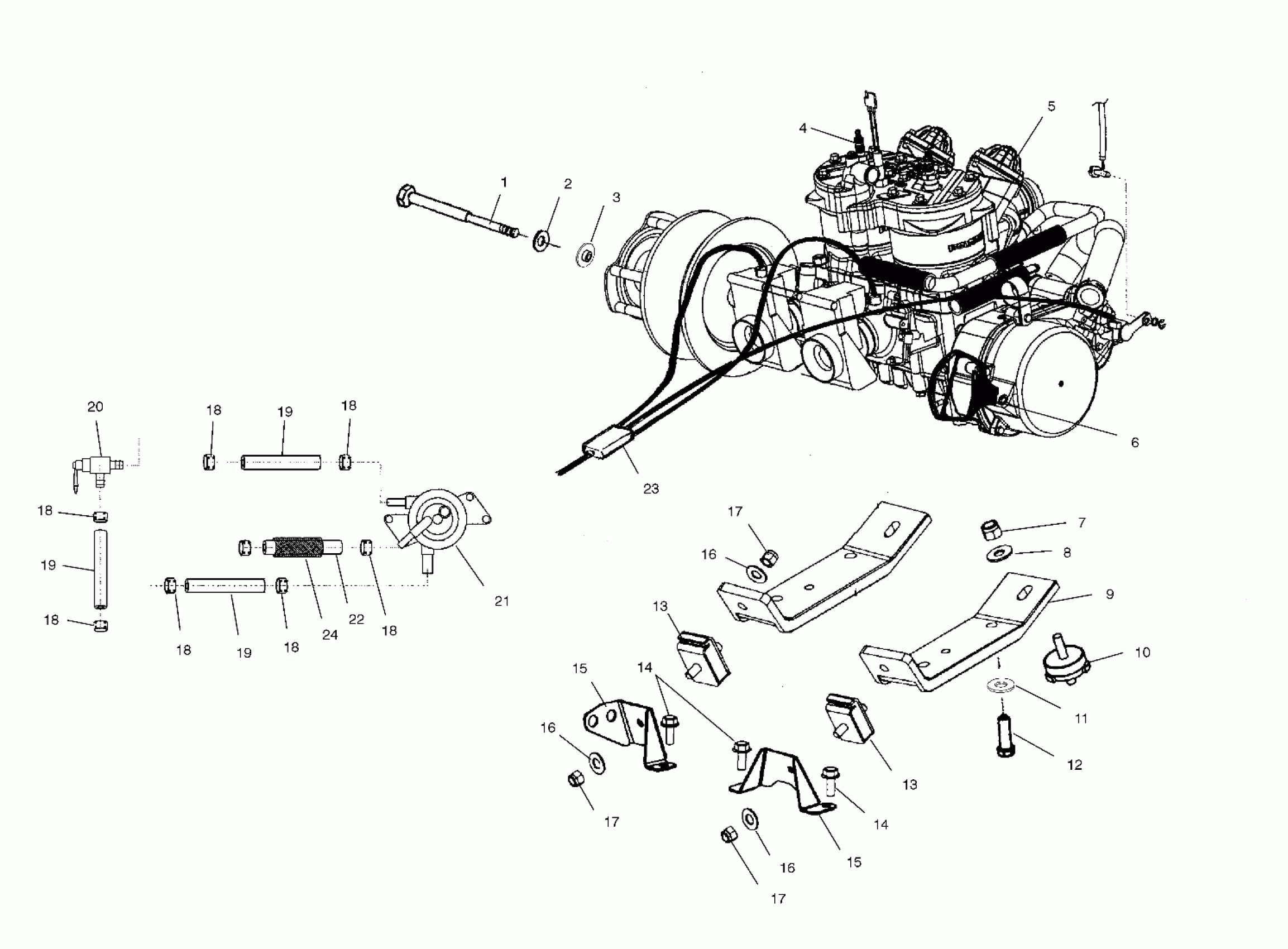

Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 - S02NK7CS ENGINE MOUNTING - S02NK7CS (4972287228C02) Diagram

#

Description
Price

1

Screw

7517501

Unavailable

2

WASHER

7556003

$6.39

3

Washer

5131872

Unavailable

4

Spark Plug, RN57YCC, Champion

3070190

$3.99

5

Engine, Short Block [S707002] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required

2201934

Unavailable

6

Handle, Recoil

5431499-070

$15.48

7

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

8

Washer, Flat

7555893

$1.49

9

Strap, Engine Mount, LH

5245462

$39.99

9

Strap, Engine Mount, RH

5245475

$41.59

10

Mount, Engine

3021290

Unavailable

11

Washer, Spring Lock

7553101

$3.99

12

Screw

7512539

$3.99

13

Mount, Engine

3021206

$60.70

13

Mount, Engine

3021206

$60.70

14

Screw

7517854

$5.59

14

Screw

7517854

$5.59

15

Bracket, Engine Mount, RH

5245044

Unavailable

15

Bracket, Engine Mount, LH

1013397

$24.27

15

Bracket, Engine Mount, RH

5245044

Unavailable

15

Bracket, Engine Mount, LH

1013397

$24.27

16

Washer, Flat

7555806

$1.49

16

Washer, Flat

7555806

$1.49

16

Washer, Flat

7555806

$1.49

17

NUT, FLEXLOC

7547008

$6.39

17

NUT, FLEXLOC

7547008

$6.39

17

NUT, FLEXLOC

7547008

$6.39

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

19

Tubing

8350017-39

Unavailable

19

Tubing

8350017-39

Unavailable

19

Tubing

8350017-39

Unavailable

20

Valve, Fuel

7052268

Unavailable

21

Pump, Fuel

2520238

Unavailable

22

Line, Fuel

8450040-600

Unavailable

23

Cable, Throttle

7080897

$64.75

24

Tubing, Convoluted

8360052-15

Unavailable
