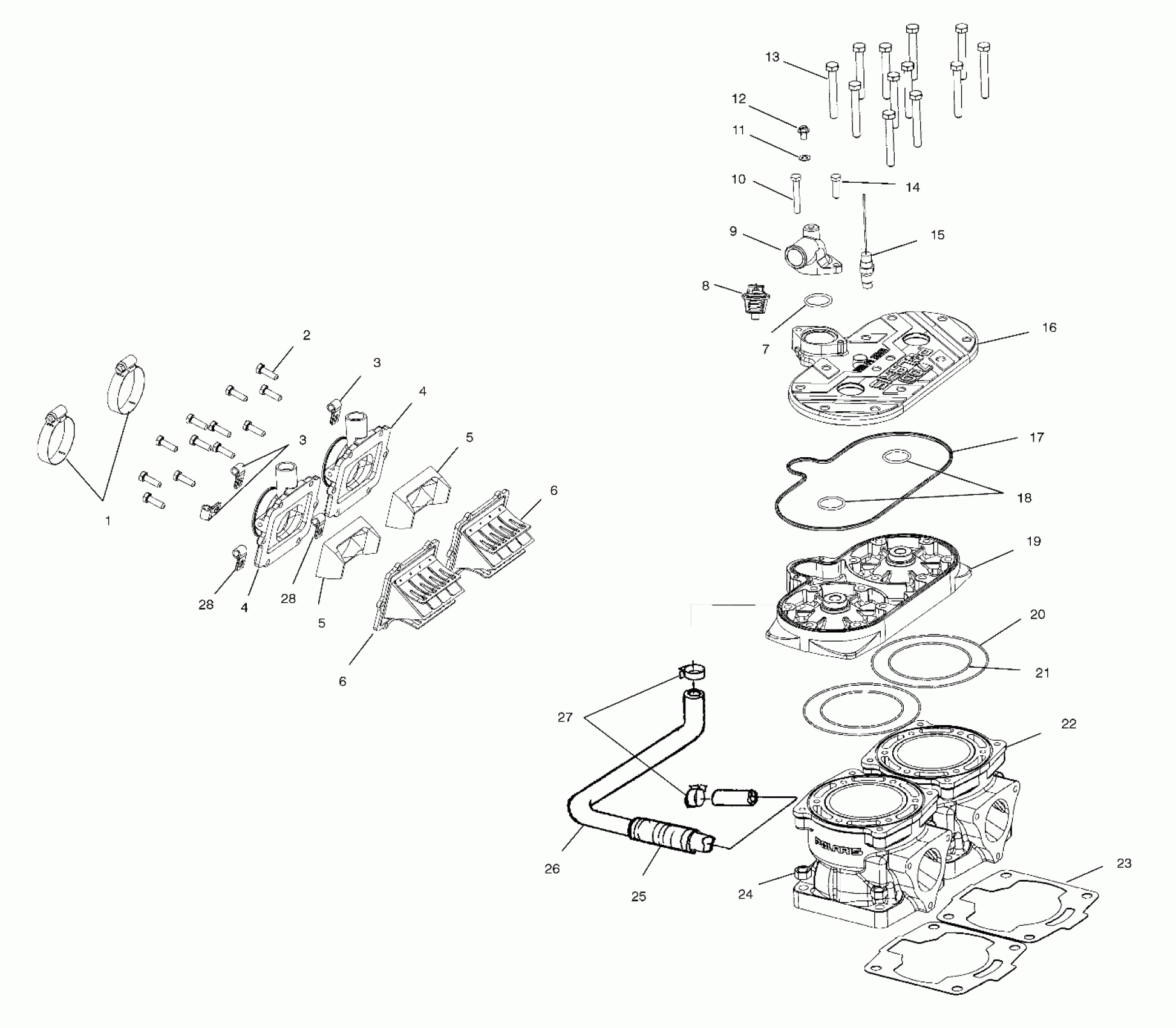

Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 - S02NK7CS CYLINDER - S02NK7CS (4972287228C04) Diagram

#

Description
Price

1

Clamp, Hose

7080681

$9.59

2

SCREW

7517398

$3.19

3

CLAMP, HOSE

7080683

$2.39

3

CLAMP, HOSE

7080683

$2.39

4

Adapter, Carb

1253327

$104.99

4

Adapter, Carb

1253327

$104.99

5

Stuffer, Reed Block

5433151

Unavailable

5

Stuffer, Reed Block

5433151

Unavailable

6

Asm., Reed Valve

1201825

$134.99

6

Asm., Reed Valve

1201825

$134.99

7

O-Ring

5411521

$24.19

8

Thermostat

7052258

$48.56

9

Cover, Thermostat

5630992

Unavailable

10

SCREW

7516818

$5.59

11

WASHER, FLAT

7555998

$1.49

12

SCREW, BLEED

7517679

$13.59

13

SCREW

7517534

$4.79

14

SCREW

7516822

$2.39

15

Sensor, Temperature

4010251

$36.41

16

Cover, Head

5631201-093

Unavailable

17

Seal

5411294

Unavailable

18

O-Ring

5410917

$1.49

19

Head, Cylinder

3021210

Unavailable

20

O-Ring

5410931

Unavailable

21

O-RING

5410932

$20.22

22

Cylinder

3021203

$397.21

23

Gasket, Cylinder Base

5811538

Unavailable

24

NUT

7547013

$1.99

25

Conduit

5521398-96

Unavailable

26

Hose, Bypass

5411536

Unavailable

27

Clamp

7080810

$2.39

28

Clamp, Hose

7080880

$5.59

28

Clamp, Hose

7080880

$5.59
