STEERING/HANDLEBAR - S02NK7CS/CSA (4969546954B02)

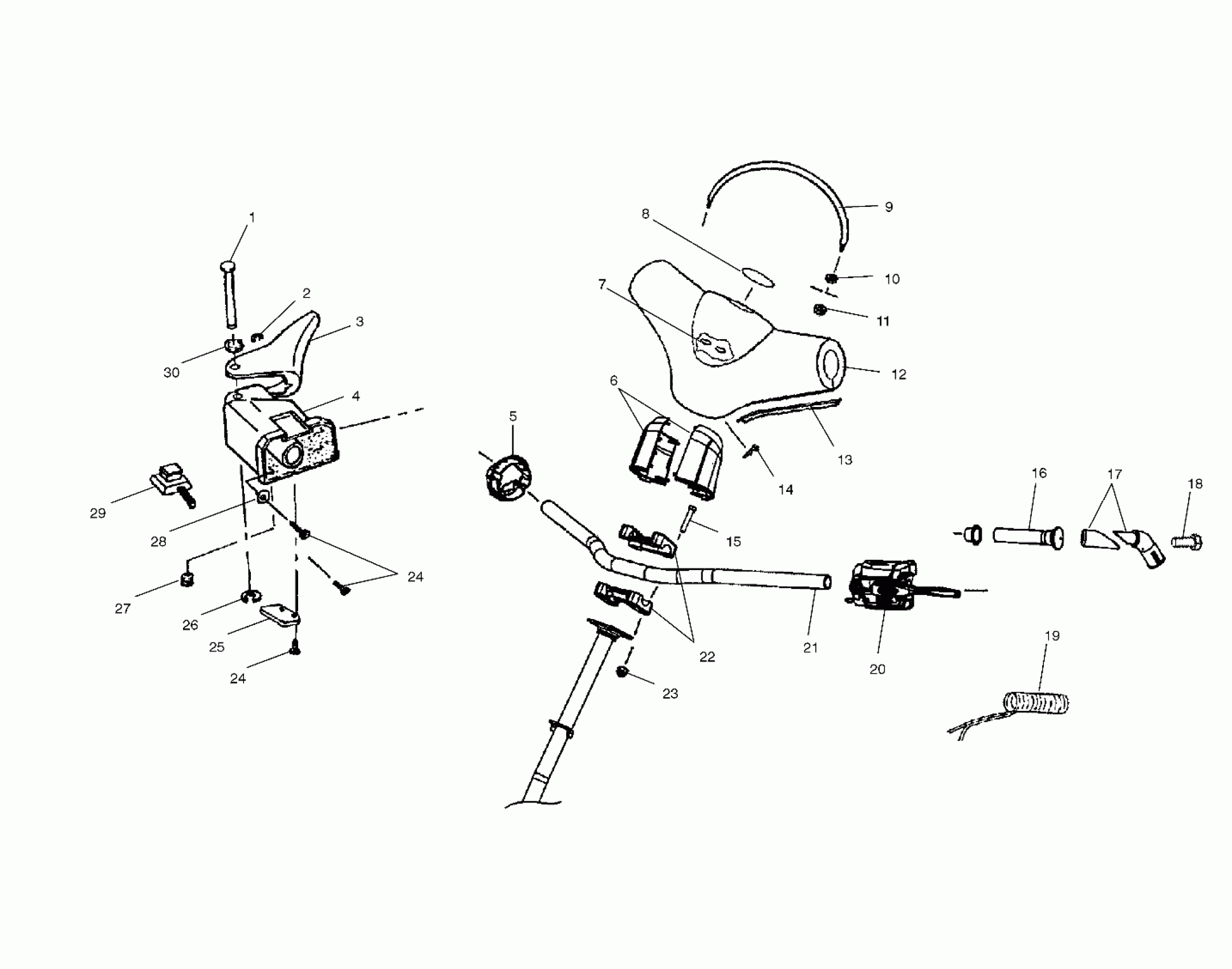

Polaris 700 RMK 144 STOCK - S02NK7CSA STEERING/HANDLEBAR - S02NK7CS/CSA (4969546954B02) Diagram
#
Description
Price
1
PIN-RETAINING .186X1.780-AL
7661624
$12.79
2
RET.RING-INDUSTRIAL(2000-25)-Z
7710503
$3.99
3
LEVER, THROTTLE
5432970
$29.03
3
Lever w/Heater
2010171
$84.98
4
BLOCK, THROTTLE/BRAKE
5431592
$49.99
5
Adaptor, Block
5433345
$15.99
6
Collar, Console, LH
5434145
Unavailable
6
Collar, Console, RH
5434146
Unavailable
7
Nut, Push-On
7670106
$2.39
8
Emblem, Star
5434179
Unavailable
9
Bar, Mountain
5243396-070
$76.89
10
Nut, Jam
7547107
$3.99
11
NUT, NYLOK
7542344
$3.99
12
Cover, Handlebar
5433330
Unavailable
13
Slide, Cover
5433160-070
$28.32
14
Clip, Dart
4010287
$3.99
15
SCREW
7517238
$4.79
16
Grip, Handlebar Cut
5411692
Unavailable
17
Asm., Handlebar Hook [Black]
1253274-070
Unavailable
17
Asm., Handlebar Hook [Red]
2872482-293
Unavailable
18
SCREW, SOCKET HEAD
7517834
$7.19
19
Heater, Grip, Lo/Med/Hi
2460677
$60.70
20
ASM., CONTROL, LH [SEE BRAKE PG. A14, REF. 13]
-------
Unavailable
21
Handlebar
1820717-067
Unavailable
22
Block, Handlebar
5630187-067
$44.99
23
Nut, Nylok
7542122
$1.49
24
Screw
7511848
$3.99
24
Screw
7511848
$3.99
25
HOLDER, WIRE
5432261
$24.27
26
RING-RETAINING EXTERNAL
7710401
$3.99
27
SCREW, SET
7512465
$3.99
28
WASHER
7555727
$1.49
29
Switch, Auxiliary Shut-Off
4110106
$94.99
30
WASHER
7555730
$3.99
