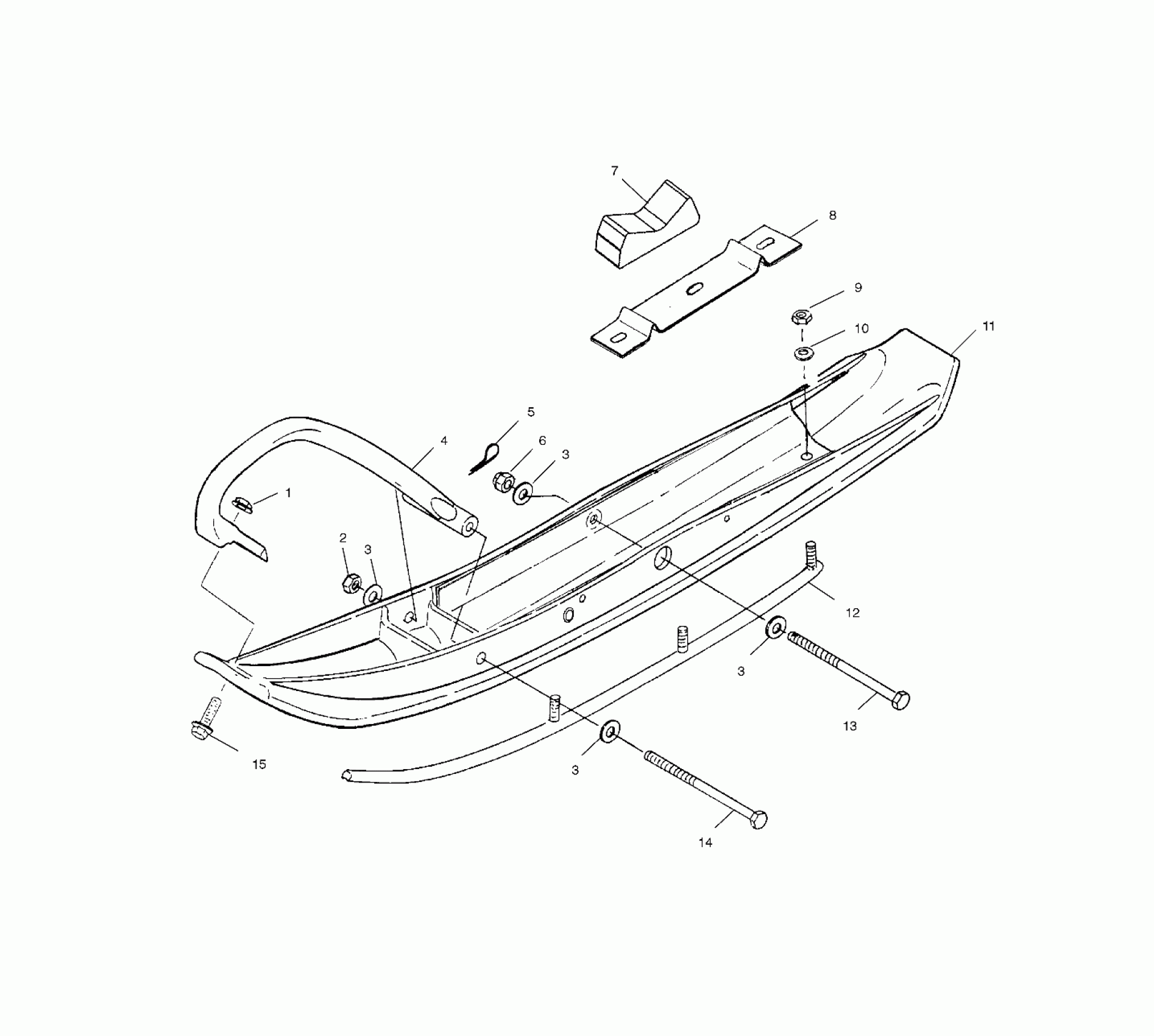

Polaris 700 RMK 144 STOCK - S02NK7CSA SKI - S02NK7CS/CSA (4969546954B07) Diagram

#

Description
Price

1

Nut, Flange

7542321

$1.49

2

Nut, Nylok

7542439

$1.49

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

4

Toe, Ski, Plastic [Black]

5434165-070

$40.46

4

Toe, Ski, Plastic [Red]

5434165-293

$40.46

4

Toe, Ski, Plastic [Yellow]

5434165-216

$40.46

5

Pin, Cotter

7661209

Unavailable

6

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

7

Stop, Rubber

5412018

$24.27

8

Support, Ski, Rubber

5241912-067

Unavailable

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

11

Ski, LH

1820667-070

Unavailable

11

Ski, RH

1820668-070

Unavailable

12

Kit, Skag, 3-inch, 90 Degree

2872566

$55.99

13

Screw

7512596

$19.99

14

Screw

7515514

$7.19

15

Screw

7515307

$3.99
