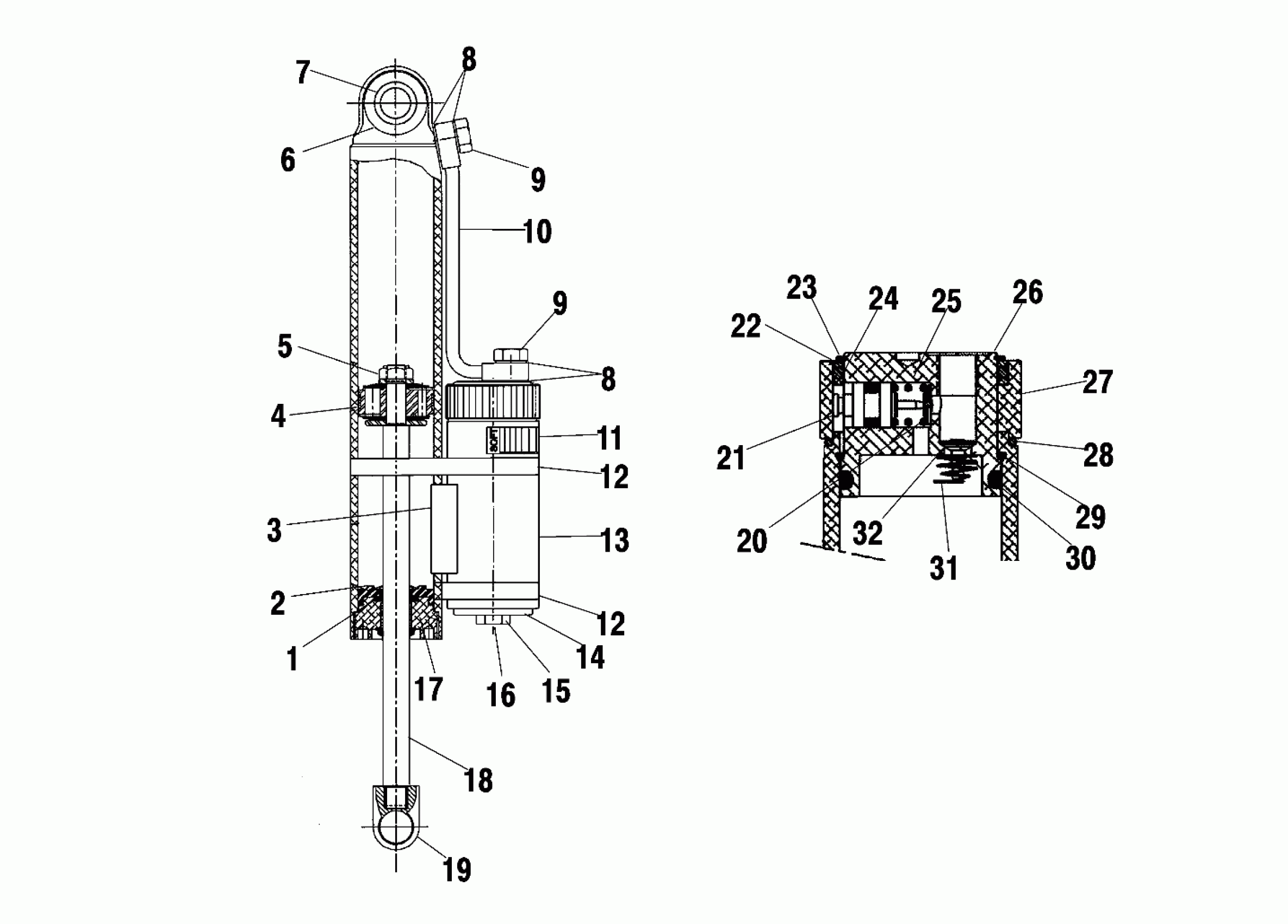

Polaris 700 RMK 144 STOCK - S02NK7CSA SHOCK (REAR TRACK) - S02NK7CS(A)/S02NL7CS/S02NK8CS(A)/S02NL8CS(A)/S02NM8CS (4900010001S03) Diagram

#

Description
Price

-

IFP

1700023

$45.59

-

Band, Wear

1700032

$24.99

-

O-Ring

1700048

$11.60

-

Shock, Rear Track, IFP

7041968

Unavailable

1

Seal, Rod

1700021

$20.22

2

Seal, Cap

1700022

Unavailable

3

Isolator

1700162

Unavailable

4

Washer, Back-Up

1700078

$9.59

4

Band, Wear

1700031

$28.32

4

Washer, Top-Out

1700077

$10.39

4

Subasm., Piston

1700110

$34.71

5

Nut

1700057

$9.59

6

Bushing

1700073

$11.99

7

Sleeve

1700069

$15.99

8

Washer, Copper

1700168

$15.87

8

Washer, Copper

1700168

$15.87

9

Bolt, Banjo

1700169

Unavailable

9

Bolt, Banjo

1700169

Unavailable

10

Line, Pressure

1700167

Unavailable

11

Label, Adjustment

1700166

Unavailable

12

Clamp, Hose

1700063

Unavailable

12

Clamp, Crimp

1700163

$10.63

12

Clamp, Hose

1700063

Unavailable

12

Clamp, Crimp

1700163

$10.63

13

Cylinder, Reservoir

1700165

$78.39

14

Cap w/Valve, End

1700164

$59.03

15

Asm., Pressure Valve

1700053

Unavailable

15

O-Ring

1700045

$6.63

16

Screw, Valve

1700055

$9.59

17

Asm., Cylinder Head

1700007

$106.49

18

Shaft, Rear Track Shock

1700183

Unavailable

19

Mount, Upper

1700024

Unavailable

20

Valve, Metering

1700177

$9.91

21

Asm., Plunger

1700174

$21.27

22

Spacer

1700173

$9.67

23

Ring, Retaining

1700175

$17.59

24

O-Ring

1700051

Unavailable

25

Spring, Compression

1700176

$9.11

26

Housing, Adjuster

1700181

$74.39

27

Knob, Adjuster

1700172

$36.31

28

O-Ring

1700171

$4.99

29

Circlip

1700170

$11.43

30

O-Ring

1700149

Unavailable

31

Spring, Replenishing Valve

1700179

$9.52

32

Valve, Replenishing

1700178

$11.51
