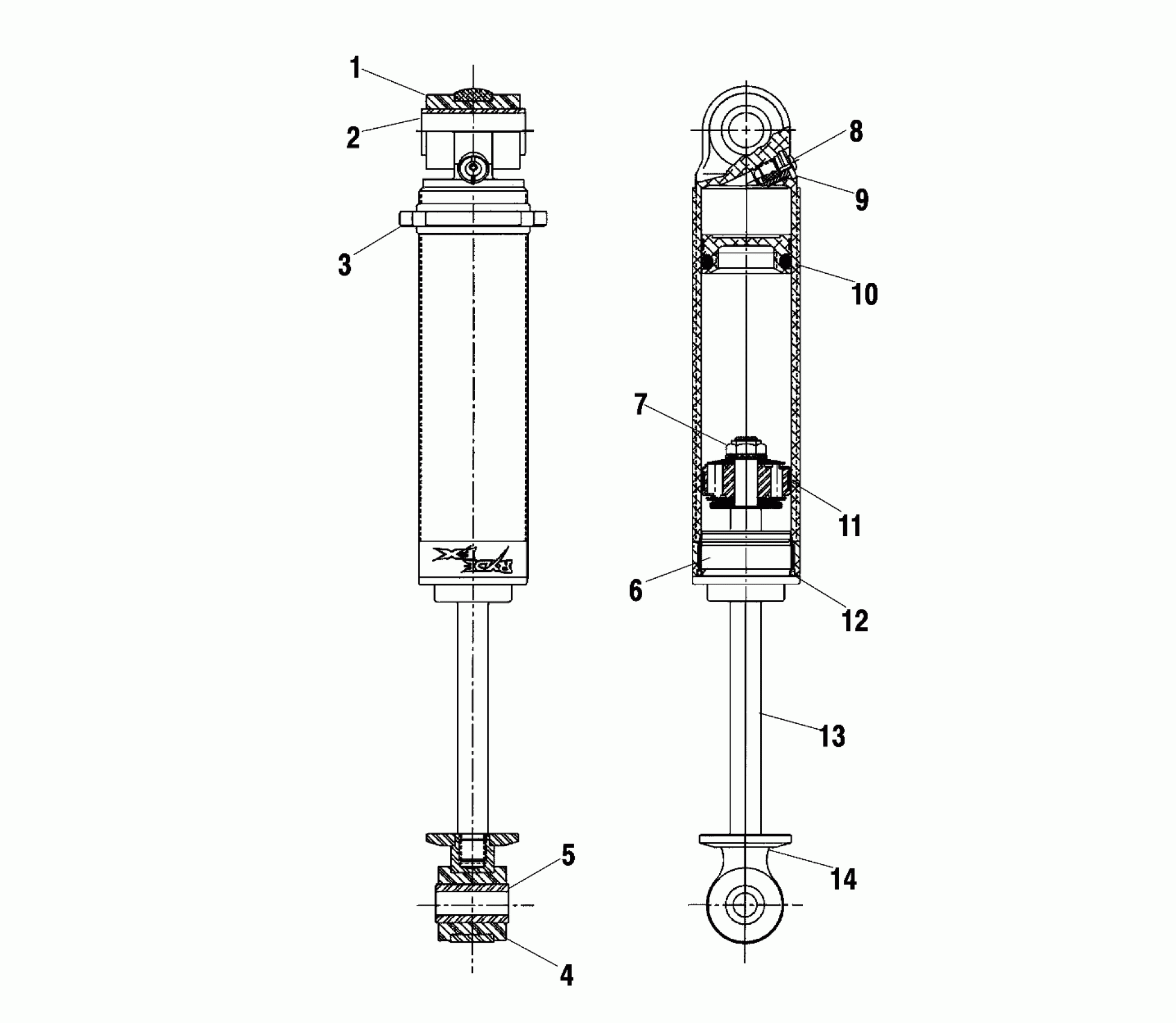

Polaris 700 RMK 144 STOCK - S02NK7CSA SHOCK (FRONT TRACK) - S02NK7CS(A)/S02NL7CS/S02NK8CS(A)/S02NL8CS(A)/S02NM8CS (4900010001S02) Diagram

#

Description
Price

-

Shock, Front Track, IFP

7042084

Unavailable

1

Bushing

1700074

Unavailable

2

Sleeve

1700161

Unavailable

3

Nut, Spring Retainer

1700033

$23.81

4

Bushing

1700036

$7.99

5

Sleeve

1700157

$11.99

6

Asm., Cylinder Head

1700156

$74.99

7

Nut

1700057

$9.59

8

Screw, Valve

1700056

$6.94

9

O-Ring

1700047

$7.13

9

Asm., Pressure Valve

1700076

Unavailable

10

IFP

1700023

$45.59

10

Band, Wear

1700032

$24.99

10

O-Ring

1700048

$11.60

11

Washer, Back-Up

1700078

$9.59

11

Band, Wear

1700031

$28.32

11

Washer, Top-Out

1700077

$10.39

11

Subasm., Piston

1700103

Unavailable

12

O-Ring

1700051

Unavailable

13

Shaft, Front Track Shock

1700182

$60.70

14

Mount, Upper

1700011

$56.65
