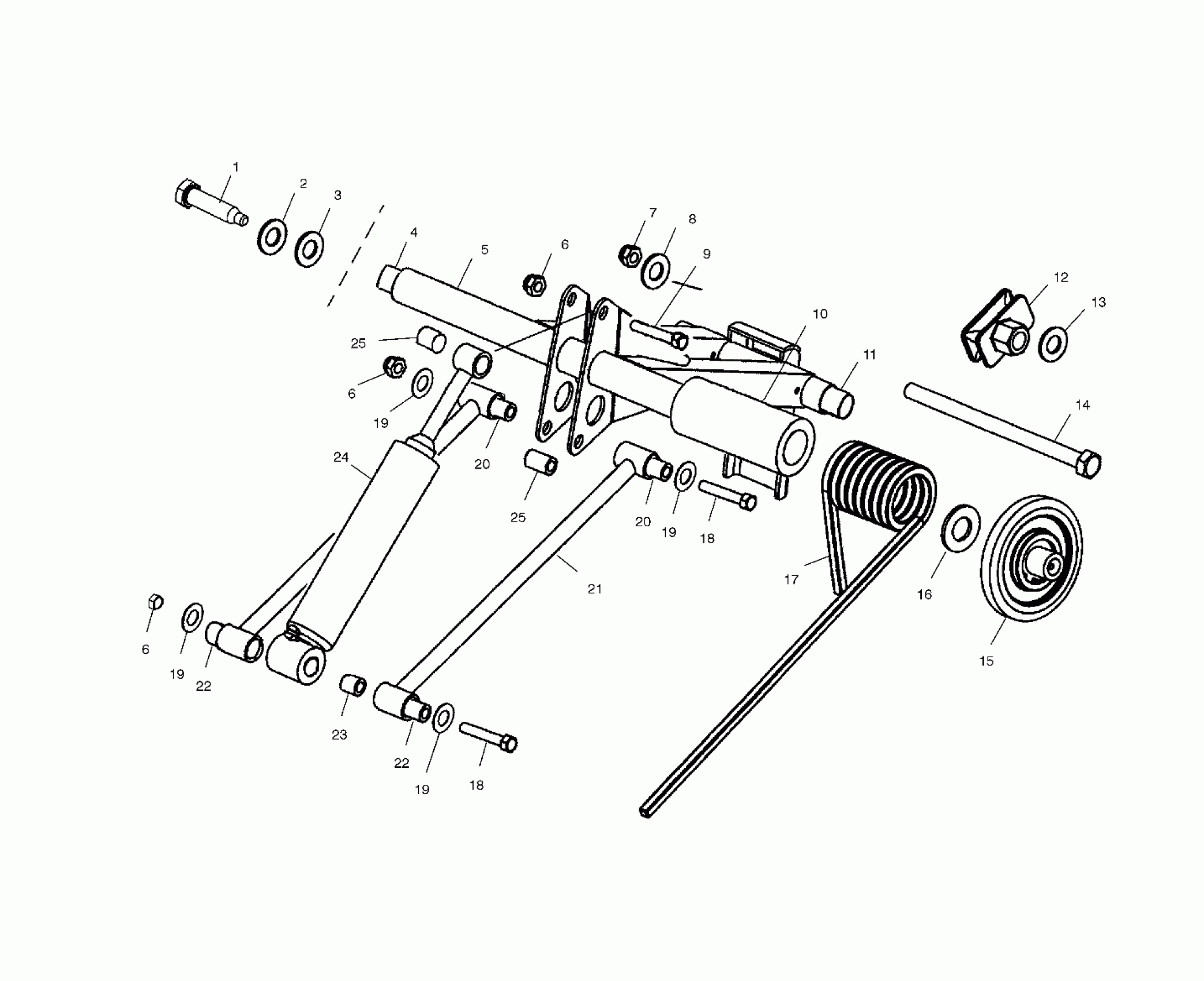

Polaris 700 RMK 144 STOCK - S02NK7CSA REAR TORQUE ARM - S02NK7CS/CSA (4969546954B11) Diagram

#

Description
Price

1

Screw

7517435

$14.99

2

Washer, Spring Lock

7552603

$1.49

3

Washer, Flat

7555893

$1.49

4

Shaft

5133165

Unavailable

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

Arm, Torque, Rear, Red

1541615-293

Unavailable

5

Arm, Torque, Rear, Yellow

1541615-216

Unavailable

6

Nut, FLEXLOC

7542411

$3.19

6

Nut, FLEXLOC

7542411

$3.19

6

Nut, FLEXLOC

7542411

$3.19

7

Nut, Nylok

7547064

Unavailable

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

9

SCREW

7512410

Unavailable

10

SLEEVE-TORSION SPRING RMK

5434337

$7.99

11

SHAFT

5333997

$94.99

12

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

13

CLIP-PUSH ON

7080394

$2.39

14

SCREW

7517908

$10.39

15

Wheel w/Collar, Carrier

1541285

Unavailable

16

Bushing

7556301

$3.19

17

Spring, Torsion, RH (Opt.)[.374/47]

7042082-067

Unavailable

17

Spring, Torsion, LH (Std.)[.359/47]

7042068-067

Unavailable

17

Spring, Torsion, RH (Std.)[.359/47]

7042069-067

Unavailable

17

Spring, Torsion, LH (Opt.)[.375/47]

7042079-067

$113.32

17

Spring, Torsion, RH (Opt.)[.375/47]

7042080-067

$113.32

17

Spring, Torsion, LH (Opt.)[.374/47]

7042081-067

$139.99

18

Screw

7515496

$9.59

18

Screw

7515496

$9.59

19

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

19

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

19

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

19

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

20

Bushing

5133101

$7.99

20

Bushing

5133101

$7.99

21

Rod, Shock

1541631-067

Unavailable

22

Bushing

5132391

$7.99

22

Bushing

5132391

$7.99

23

SLEEVE

5333905

$15.99

24

Shock, Track, Rear

7042058

$214.99

25

BUSHING

5010422

$11.99

25

BUSHING

5010422

$11.99
