- 700 RMK 144 STOCK - S02NK7CSA
CHASSIS - S02NK7CS/CSA (4969546954A03)

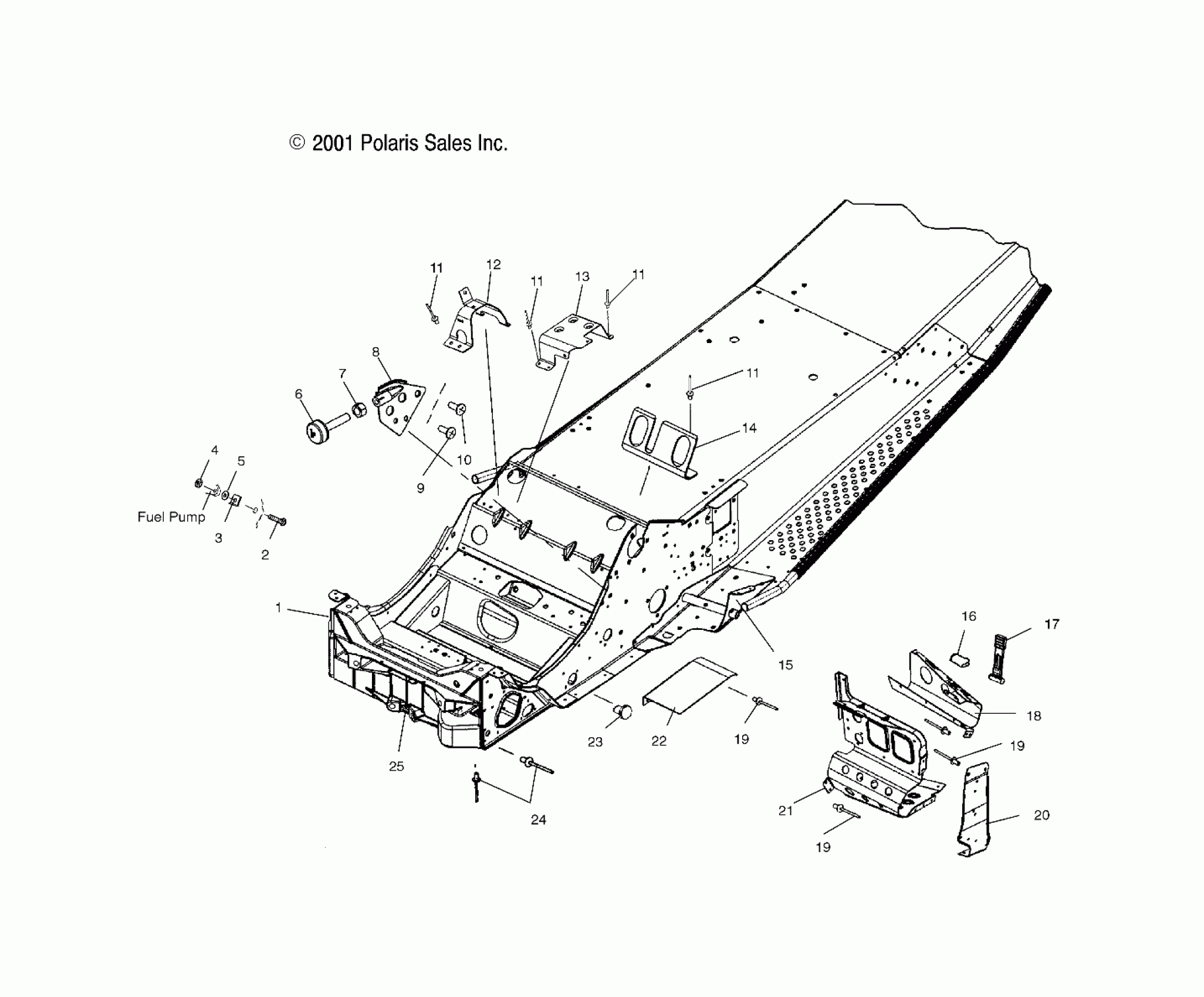

Polaris 700 RMK 144 STOCK - S02NK7CSA CHASSIS - S02NK7CS/CSA (4969546954A03) Diagram
#
Description
Price
1
Asm., Chassis
1013452-309
Unavailable
2
Bolt, Carriage
7512275
$3.99
3
Nut, Speed
7670021
$6.99
4
Nut, Nylok
7542122
$1.49
5
Washer, Nylon
7555932
$2.39
6
Stop, Torque
3021104
$20.22
7
NUT
7542404
$1.59
8
Stop, Torque
1013379
Unavailable
9
Screw
7517854
$5.59
10
SCREW
7517632
$5.59
11
Rivet
7621432
$1.49
11
Rivet
7621432
$1.49
11
Rivet
7621432
$1.49
11
Rivet
7621432
$1.49
12
Bracket, Jackshaft Shield
5245003
$13.19
13
Bracket, Oil Tank
5245202
$17.43
14
Bracket, Air Box
5245725
$18.10
15
Kit, Trailing Arm Support, LH
2202059
$213.00
15
Kit, Trailing Arm Support, RH
2202060
Unavailable
16
EXTRUSION, CLUTCH GUARD
5521238
$6.46
17
STRAP-AIRBOX TOP
5433150
$24.27
18
Mount, Console, Toe Clip, LH
5245457
Unavailable
18
Mount, Console, Toe Clip, RH
5245458
Unavailable
19
RIVET-3/16-.090-.290
7661637
$1.49
19
RIVET-3/16-.090-.290
7661637
$1.49
19
RIVET-3/16-.090-.290
7661637
$1.49
20
Support, Footrest, LH
5242741
$19.68
20
Support, Footrest, RH
5242742
$32.37
21
Footrest, LH
5245288
Unavailable
21
Footrest, RH
5242740
Unavailable
22
Guard, Adapter
5221583
$11.59
23
PLUG, HOLE
7080416
$5.65
24
Rivet
7661639
Unavailable
25
Bulkhead, Front
5132292
$115.99
