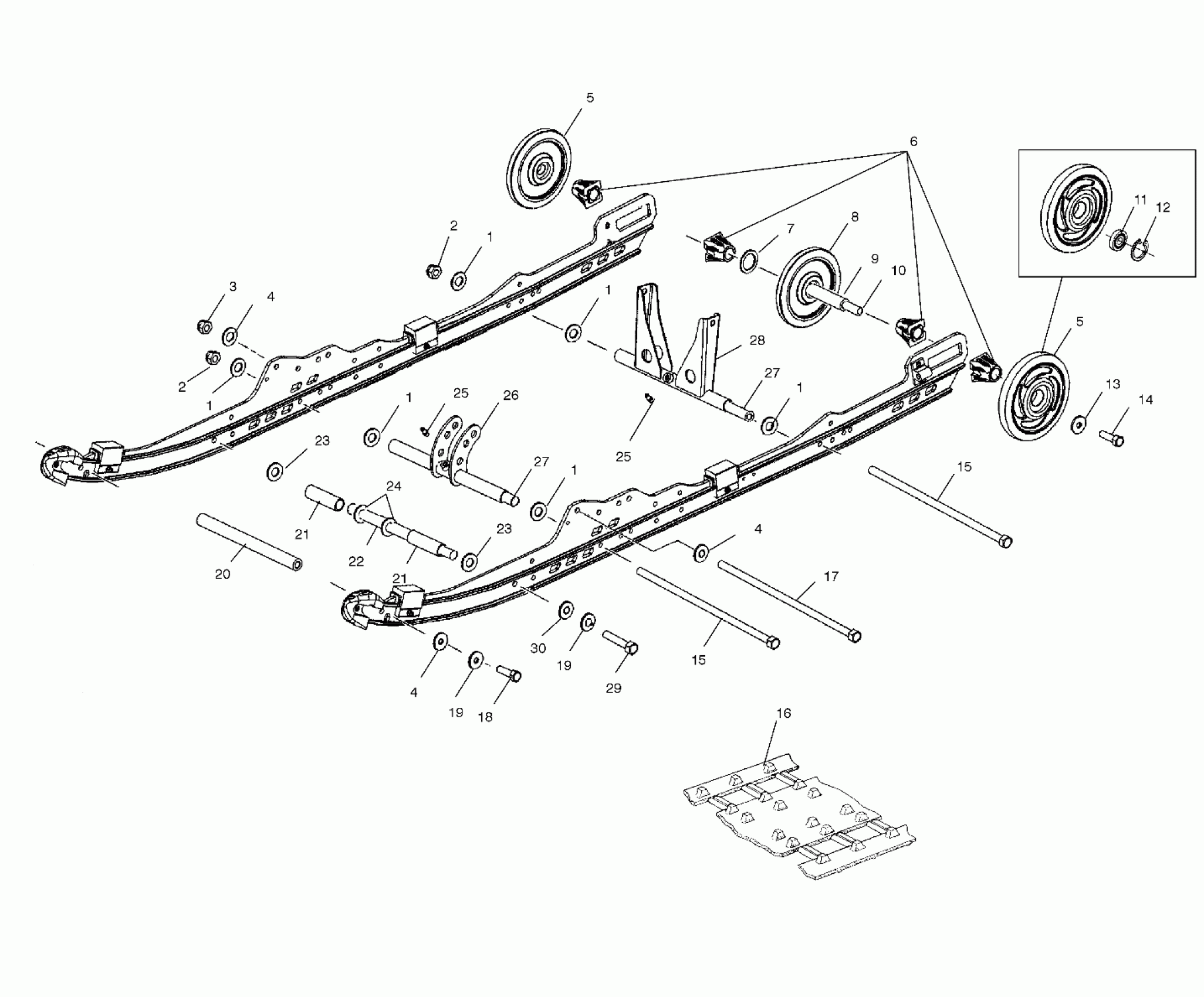

Polaris 700 RMK 136 - S02NJ7CS SUSPENSION - S02NJ7CS/CSA (4970567056B07) Diagram

#

Description
Price

1

WASHER, FLAT

7556216

$4.79

1

WASHER, FLAT

7556216

$4.79

1

WASHER, FLAT

7556216

$4.79

1

WASHER, FLAT

7556216

$4.79

1

WASHER, FLAT

7556216

$4.79

1

WASHER, FLAT

7556216

$4.79

2

Nut, Nylok

7547064

Unavailable

2

Nut, Nylok

7547064

Unavailable

3

Nut, Nylok

7542439

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

5

Wheel, Red [Incl. 11,12]

1590303-293

$48.56

5

Wheel, Red [Incl. 11,12]

1590303-293

$48.56

6

SPACER-IDLER

5432535

$11.99

7

BUSHING

7555918

$1.59

8

Wheel

1594087

$72.84

9

SPACER-IDLER, LONG

5333285

$11.99

10

SHAFT, IDLER

5020744

$59.99

11

BEARING

3514384

$19.84

12

RING-RETAINING

7710444

$8.79

13

WASHER, BELLE

7556130

$6.39

14

BOLT

7517731

$1.49

15

Screw

7517996

Unavailable

15

Screw

7517996

Unavailable

16

Track

5411519

Unavailable

17

SCREW

7517921

$23.99

18

Screw

7517247

$3.19

19

Washer, Spring Lock

7552603

$1.49

19

Washer, Spring Lock

7552603

$1.49

20

Shaft

5020868

Unavailable

21

Spacer, Shock Centering

5334062

$11.99

21

Spacer, Shock Centering

5334062

$11.99

22

SHAFT

5133188

$40.46

23

WSHR-.813X.406X.105-Y

7555832

$2.39

23

WSHR-.813X.406X.105-Y

7555832

$2.39

24

Washer, Flat

7556210

$3.99

25

FITTING-LUBRICATION 1/4-28

7080424

$4.79

25

FITTING-LUBRICATION 1/4-28

7080424

$4.79

26

Arm, Pivot, Shock

1541635

Unavailable

27

Tube

5334042

Unavailable

27

Tube

5334042

Unavailable

28

Arm, Pivot, Rear

1541614

Unavailable

29

Screw

7517857

$5.59

30

WASHER

7556042

Unavailable
