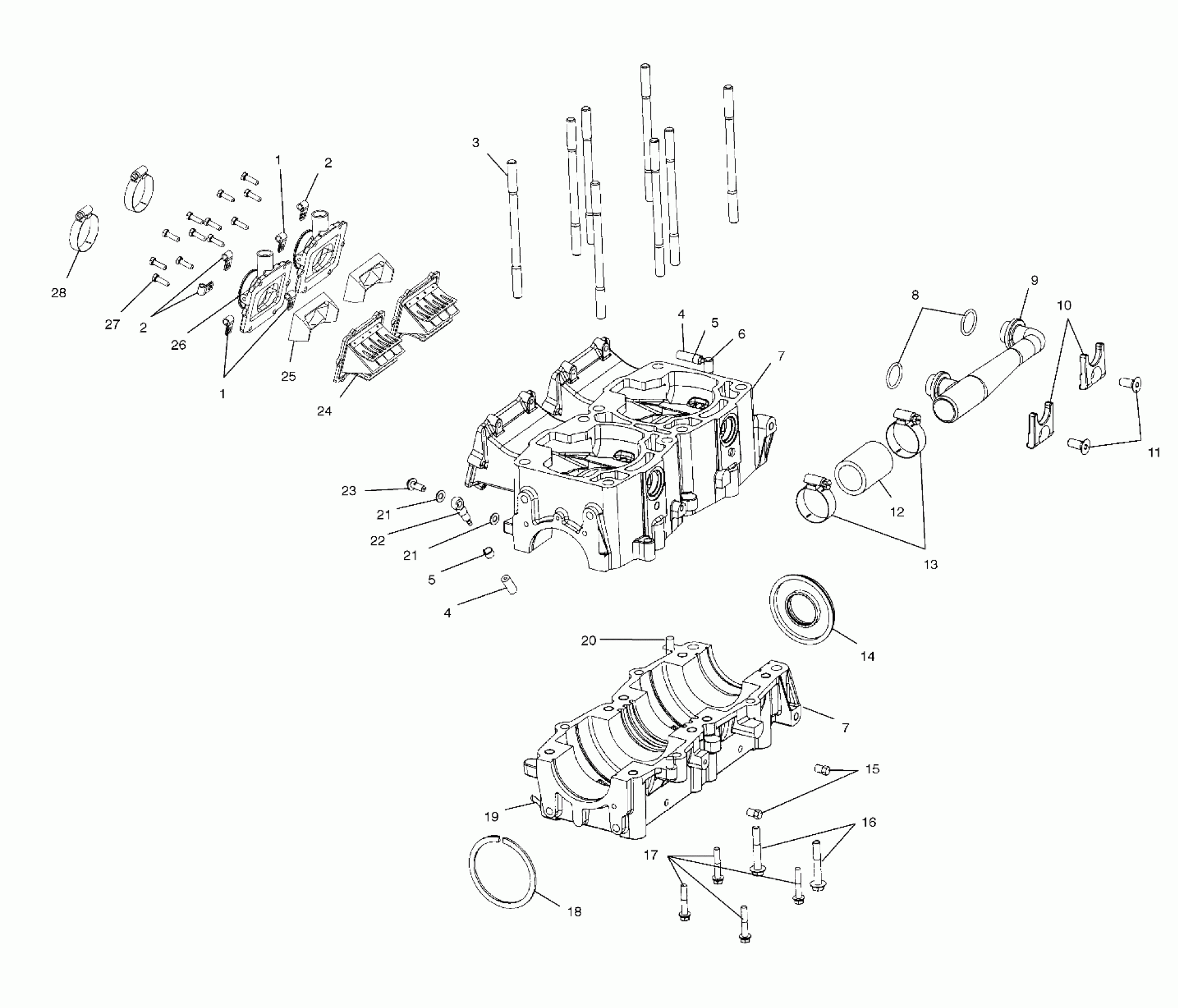

Polaris 700 RMK 136 - S02NJ7CS CRANKCASE - S02NJ7CS/CSA (4970567056C04) Diagram

#

Description
Price

1

Clamp, Hose

7080880

$5.59

1

Clamp, Hose

7080880

$5.59

2

CLAMP, HOSE

7080683

$2.39

2

CLAMP, HOSE

7080683

$2.39

3

Stud

5131677

Unavailable

4

LINE, FUEL

8450061-600

Unavailable

4

LINE, FUEL

8450061-600

Unavailable

5

Clamp

7080603

$1.59

5

Clamp

7080603

$1.59

6

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

7

Kit, Crankcase [Incl. 3,7,16,17,20]

2201930

$764.99

7

Kit, Crankcase [Incl. 3,7,16,17,20]

2201930

$764.99

8

O-Ring

5411125

Unavailable

9

Manifold, Inlet

5630610

$49.59

10

Retainer, Manifold

5243431

$14.75

11

Screw

7516736

Unavailable

12

Hose

8450068-04

Unavailable

13

CLAMP-HOSE, 1.750-SS

7080560

$11.19

14

Seal

5411394

$29.99

15

Plug

7051529

$15.99

16

Screw

7516919

Unavailable

17

SCREW

7516732

$1.59

18

Ring, Retaining

7710441

Unavailable

19

Fitting

7052145

$9.59

20

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

21

WASHER, FLAT

7555998

$1.49

21

WASHER, FLAT

7555998

$1.49

22

Valve, Check

7052160

Unavailable

23

Screw

7517319

$19.99

24

Asm., Reed Valve

1201825

$134.99

25

Stuffer, Reed Block

5433151

Unavailable

26

Adapter, Carb

1253327

$104.99

27

SCREW

7517398

$3.19

28

Clamp, Hose

7080681

$9.59
