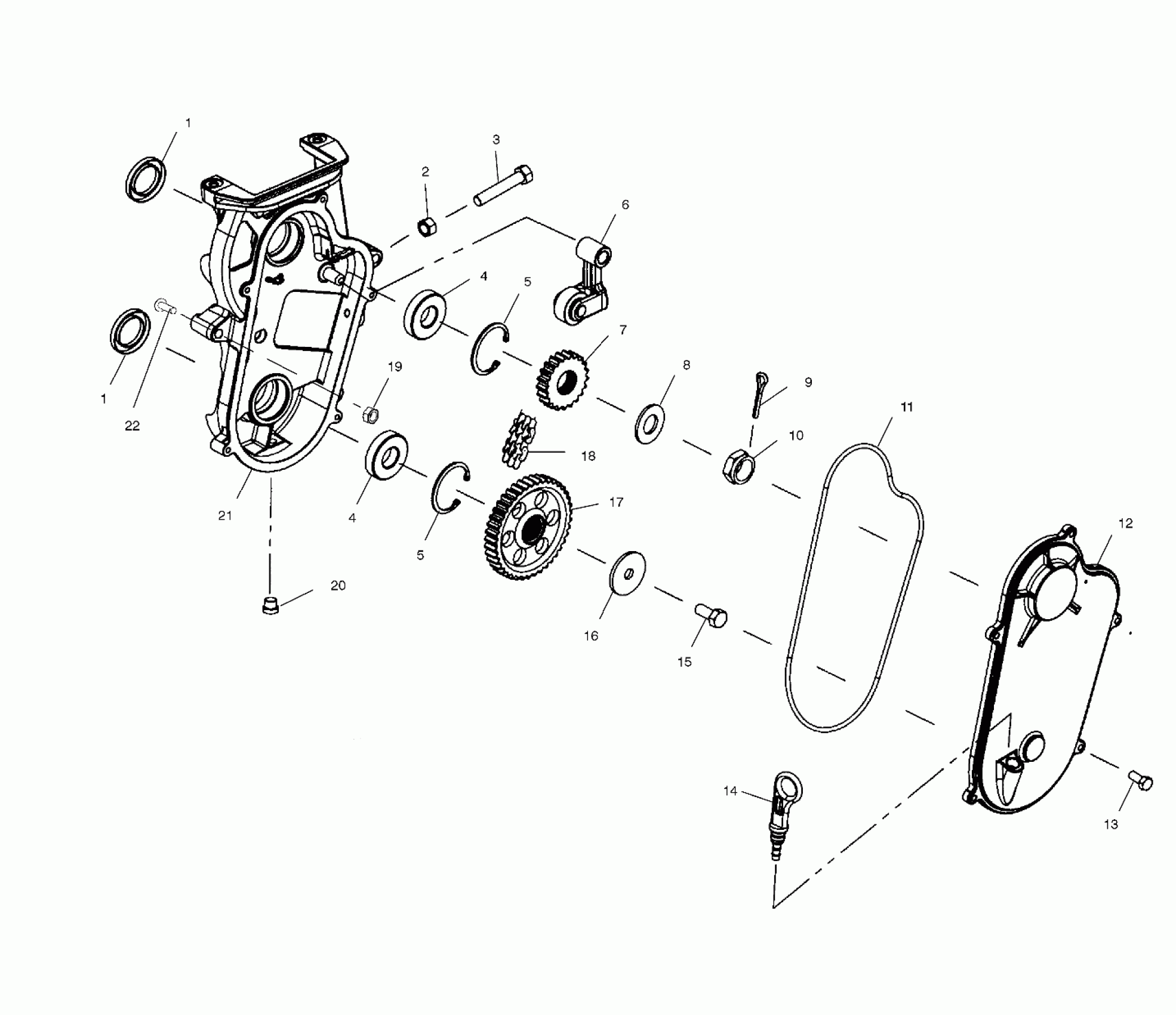

Polaris 700 RMK 136 - S02NJ7CS CHAINCASE - S02NJ7CS/CSA (4970567056B11) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

1

SEAL-OIL

3610030

$20.22

2

Nut

5132237

$9.59

3

Screw

7512470

Unavailable

4

BEARING, BALL

3514309

$15.87

4

BEARING, BALL

3514309

$15.87

5

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

5

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

Pin, Chain Tightener

7662210

Unavailable

6

Bearing, Chaincase Idler

3553002

$11.99

6

Wheel, Idler

5630123

Unavailable

6

WASHER, THRUST

7558702

$1.59

6

Asm., Tightener

1332213

$159.99

7

SPROCKET, 21T, 3/4W

3221097

$49.99

8

Washer, Spring

7571620

$7.19

9

PIN, COTTER

7661401

$1.49

10

Nut, FLEXLOC

7542811

Unavailable

11

Gasket, Chaincase

5411497

$20.22

12

Cover, Chaincase

5132368

$148.79

13

SCREW

7512242

$2.39

14

Dipstick

1332250

$44.99

15

Screw

7515350

$3.97

16

Washer, Spring

7571618

$6.39

17

Sprocket, 41T, 3/4W

3222101

$40.46

18

CHAIN, 74P, 3/4W

3221109

$164.99

19

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

20

PLUG

7052115

$5.65

21

Chaincase

5132773

Unavailable

22

Screw

7515477

$34.99
