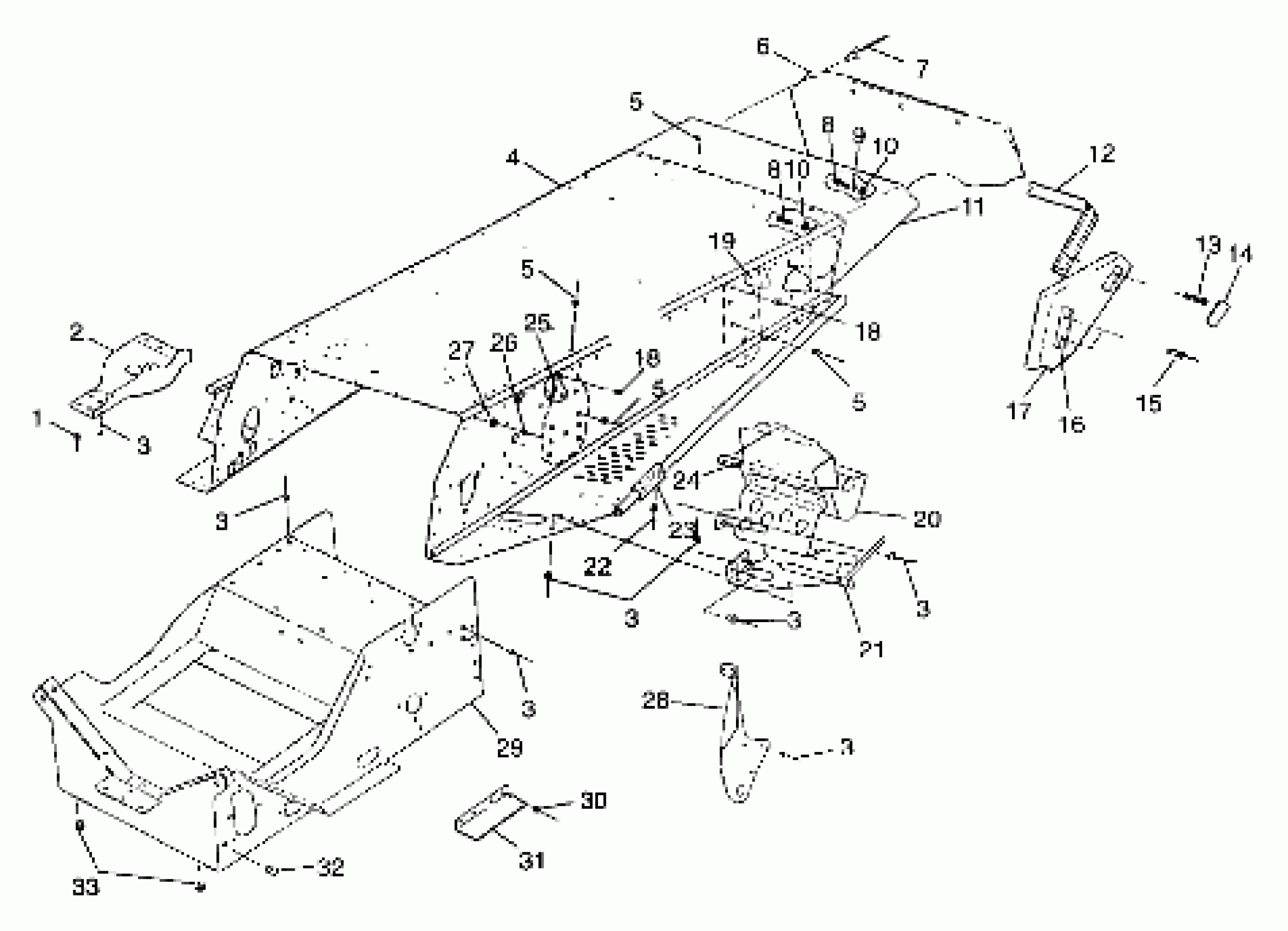

Polaris 700 RMK - 099SR7ASA TUNNEL - 099SR7ASA (4948524852a005) Diagram

#

Description
Price

1

RIVET(50) Substituted by 7661130

7661643

Unavailable

2

GUARD,C/C.SUMP,TUNNEL Substituted by 5243419

5241915

$20.48

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

4

TUNNEL ASM,X10,136 (Incl. 11,19,25)

1012746-067

Unavailable

5

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

5

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

5

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

5

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

6

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

7

POP RIVET(50)

7621418

$1.49

8

BOLT(10)

7512240

$3.99

8

BOLT(10)

7512240

$3.99

9

LOCK WASHER(10)

7552801

$1.59

10

WASHER(10)

7558301

$1.49

10

WASHER(10)

7558301

$1.49

11

PANEL,TUNNEL BACK

1012580-067

Unavailable

12

BUMPER,REAR,BLACK Substituted by 2670168

2670169

Unavailable

13

SCREW(10)

7512084

$1.49

14

REFLECTOR ASM,RED

2670133

$5.75

15

RIVET,(50)

7621515

$3.99

16

SUPPORT,HAND-HOLD

5131546

$18.23

17

COVER,LH,BUMPER,W/HANDLE

5432562

$28.15

17

COVER,RH,BUMPER,W/HANDLE

5432563

$28.15

18

RIVET,SEMI-TUBE,(50)

7661841

$1.49

18

RIVET,SEMI-TUBE,(50)

7661841

$1.49

19

BRKT,LH,R.SUSP.

1012578-067

$82.39

19

BRKT,RH,R.SUSP.

1012579-067

$62.39

20

FOOTREST ASM,LH,BLK.

1012681

Unavailable

20

FOOTREST ASM,RH,BLK.

1012682

$95.24

21

SUPPORT,TUNNEL,LH,BLK.

1012812-067

$32.37

21

SUPPORT,TUNNEL,RH,BLK

1012813-067

Unavailable

22

RIVET,INTERLOCK(50) Substituted by 7661130

7661639

Unavailable

23

GRIP-TUNNEL ROLL,BLK

5243112-067

Unavailable

24

EXTRUSION,CLUTCHGUARD

5521238

$6.46

25

PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067

5241303-067

Unavailable

25

PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067

5241304-067

Unavailable

26

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

27

SNAP-MALE(10)

7080227

Unavailable

28

BRACE,LH,F'REST/TRLG ARM,BLK

5242477-067

Unavailable

28

BRACE,RH,F'REST/TRLG ARM,BLK

5242478-067

Unavailable

29

BULKHEAD,CRC,HYB,BLK. Substituted by 1013102-067

1012665-067

Unavailable

30

RIVET(50)

7621452

$1.49

31

GUARD,ADAPTER GUIDE

5222857

$12.94

32

PLUG, HOLE(10)

7080416

$5.65

33

PLUG-HOLE

7080398

$4.84
