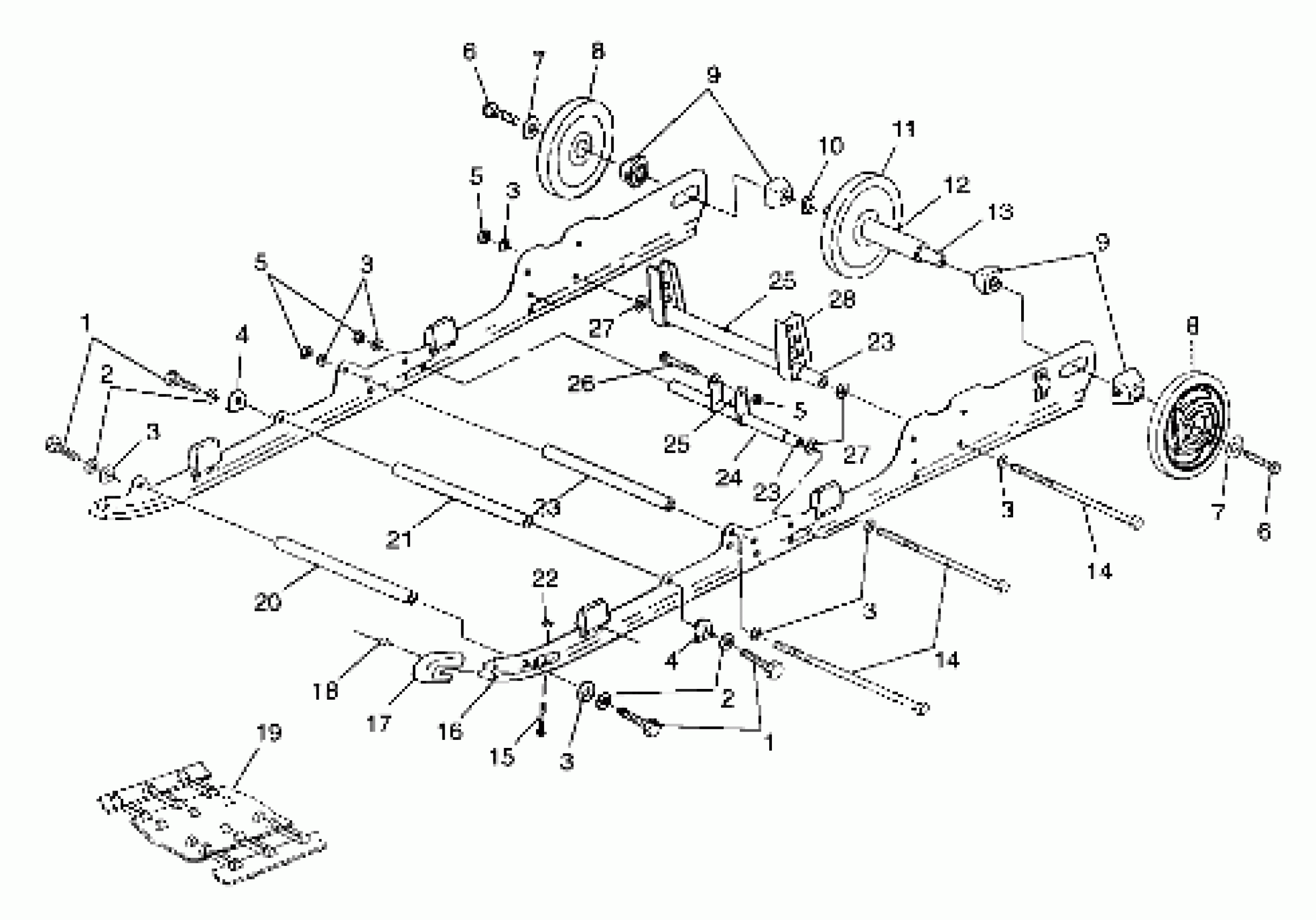

Polaris 700 RMK - 099SR7ASA SUSPENSION - 099SR7ASA (4948524852b012) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

5

NUT LOCK(10)

7542411

$3.19

5

NUT LOCK(10)

7542411

$3.19

5

NUT LOCK(10)

7542411

$3.19

6

BOLT(10)

7515526

$1.19

6

BOLT(10)

7515526

$1.19

7

WASHER(10) Substituted by 7556130

7571629

Unavailable

7

WASHER(10) Substituted by 7556130

7571629

Unavailable

8

WHEEL,IDLER,SCRL,M.BLUE

1594083-107

Unavailable

8

WHEEL,IDLER,SCRL,M.BLUE

1594083-107

Unavailable

9

SPACER-IDLER

5432535

$11.99

9

SPACER-IDLER

5432535

$11.99

10

BUSHING(10)

7555918

$1.59

11

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

12

SPACER-IDLER, LONG

5333285

$11.99

13

SHAFT,IDLER

5020744

$59.99

14

Screw

7517353

Unavailable

14

Screw

7517353

Unavailable

15

Screw (See Footnote) (See Rail Mounting - Suspension Pg. B13, Ref. 21)

-------

Unavailable

16

SLIDER,WHI.,(2)

5521452

$40.46

17

Cover, Rail Tip (See Footnote) (See Rail Mounting - Suspension Pg. B13, Ref. 22)

-------

Unavailable

18

Rivet, Pop (See Footnote) (See Rail Mounting - Suspension Pg. B13, Ref. 23)

-------

Unavailable

19

TRACK,136"X1.75,CAMO Substituted by 5411519 (099SR7AS)

5411237

Unavailable

19

Clip, Slide

5241473

Unavailable

19

Clip, Guide

5241474

Unavailable

19

TRACK,136X15X2,DEEPLUG (099SR7ASA)

5411428

Unavailable

20

SHAFT,PIVOT ARM

5020723

$29.99

21

SHAFT,PIVOT ARM

5020724

$29.99

22

Nut (See Footnote) (See Rail Mounting - Suspension Pg. B13, Ref. 24)

-------

Unavailable

23

SHAFT

5333404

$24.27

23

SHAFT

5333404

$24.27

23

SHAFT

5333404

$24.27

24

ARM,SHOCK PIVOT

1541001-067

$43.65

25

ZERK,FITTING,THREADED(10)

7080433

$1.49

25

ZERK,FITTING,THREADED(10)

7080433

$1.49

26

BOLT(10)

7515472

$2.39

27

WASHER(10)

7555893

$1.49

27

WASHER(10)

7555893

$1.49

28

ARM,REAR PIVOT

1541241-067

$40.79
