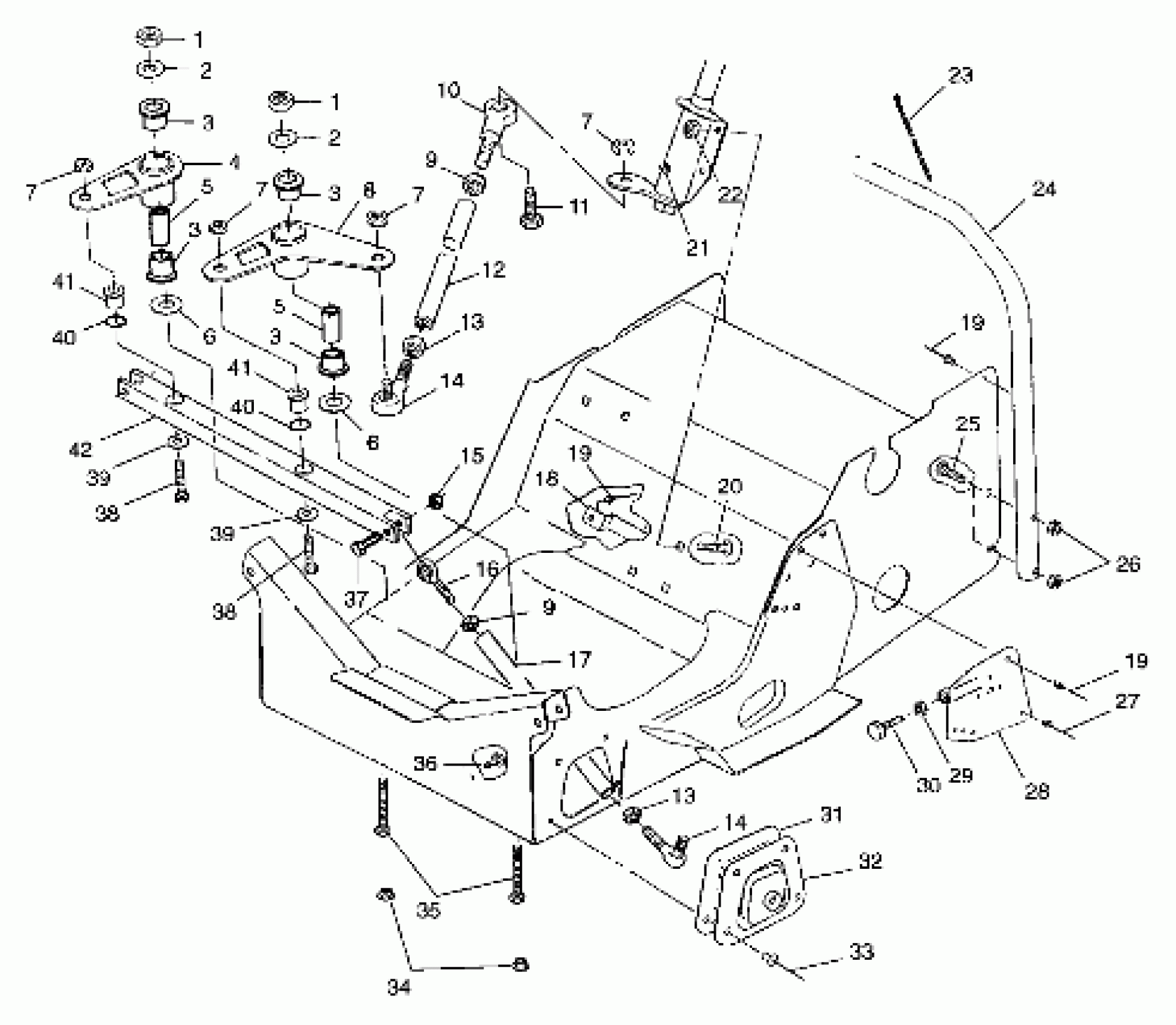

Polaris 700 RMK - 099SR7ASA STEERING - 099SR7ASA (4948524852b003) Diagram

#

Description
Price

1

NUT,FLEX LOCK(10)

7547029

Unavailable

1

NUT,FLEX LOCK(10)

7547029

Unavailable

2

WASHER(10)

7555721

$1.49

2

WASHER(10)

7555721

$1.49

3

BUSHING

3563907

$3.99

3

BUSHING

3563907

$3.99

3

BUSHING

3563907

$3.99

3

BUSHING

3563907

$3.99

4

ZERK,FITTING,THREADED(10)

7080433

$1.49

4

IDLER ARM (Incl. 3,5)

1820579

$49.59

5

Spacer

5010468

Unavailable

5

Spacer

5010468

Unavailable

6

WASHER(10)

7556053

$2.63

6

WASHER(10)

7556053

$2.63

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

8

ZERK,FITTING,THREADED(10)

7080433

$1.49

8

ARM,PITMAN ASM. (Incl. 3,5)

1822562

Unavailable

9

NUT

7542424

$1.49

9

NUT

7542424

$1.49

10

ROD END, LH.

7060164

$48.56

11

BOLT(10)

7512404

$3.99

12

ROD,DRAGLINK

5333411

Unavailable

13

NUT HEX(10)

7542401

$2.39

13

NUT HEX(10)

7542401

$2.39

14

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

14

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

15

NUT LOCK(10)

7542411

$3.19

16

ROD END,LH

7060166

$48.56

17

ROD,TIE,BLK

5020885-067

Unavailable

18

BRKT,BOLT RETAINER

5241997

$1.44

19

RIVET,INTERLOCK,B(50)

7661638

$1.49

19

RIVET,INTERLOCK,B(50)

7661638

$1.49

19

RIVET,INTERLOCK,B(50)

7661638

$1.49

20

BOLT,(10)

7517428

$2.39

21

FITTING,LUB/VEN(10)

7080561

$4.79

22

NUT FLEX-LOC(10)

7542303

$6.39

23

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

24

STEERING HOOP,BLK Substituted by 1013153-067

1012795-067

$41.59

25

BOLT-CARRIAGE(10)

7512275

$3.99

26

NUT, LOCK(10)

7542103

$5.59

27

RIVET(50) Substituted by 7661130

7661643

Unavailable

28

Stop, Torque

1012618

Unavailable

29

NUT(10)

7542404

$1.59

30

STOP,TORQUE,COURSE Substituted by 3021081

3110078

$36.41

31

BOOT,TIEROD,MOD

5411249

Unavailable

32

PLATE,BOOT,MOD

5211796-067

$31.35

33

POP RIVET(50)

7621323

$1.49

34

PLUG,HOLE(10)

7080689

$5.75

35

SCREW(10)

7517328

$13.19

36

CLIP, PLASTIC(10)

4020139

$4.79

37

SCREW(10)

7515434

Unavailable

38

BOLT(10)

7515415

$1.49

38

BOLT(10)

7515415

$1.49

39

WASHER(10)

7555893

$1.49

39

WASHER(10)

7555893

$1.49

40

O-RING

5411220

$6.46

40

O-RING

5411220

$6.46

41

TUBE,SPACER

5010384

Unavailable

41

TUBE,SPACER

5010384

Unavailable

42

RACK ASM,STEERING

1822408

Unavailable
