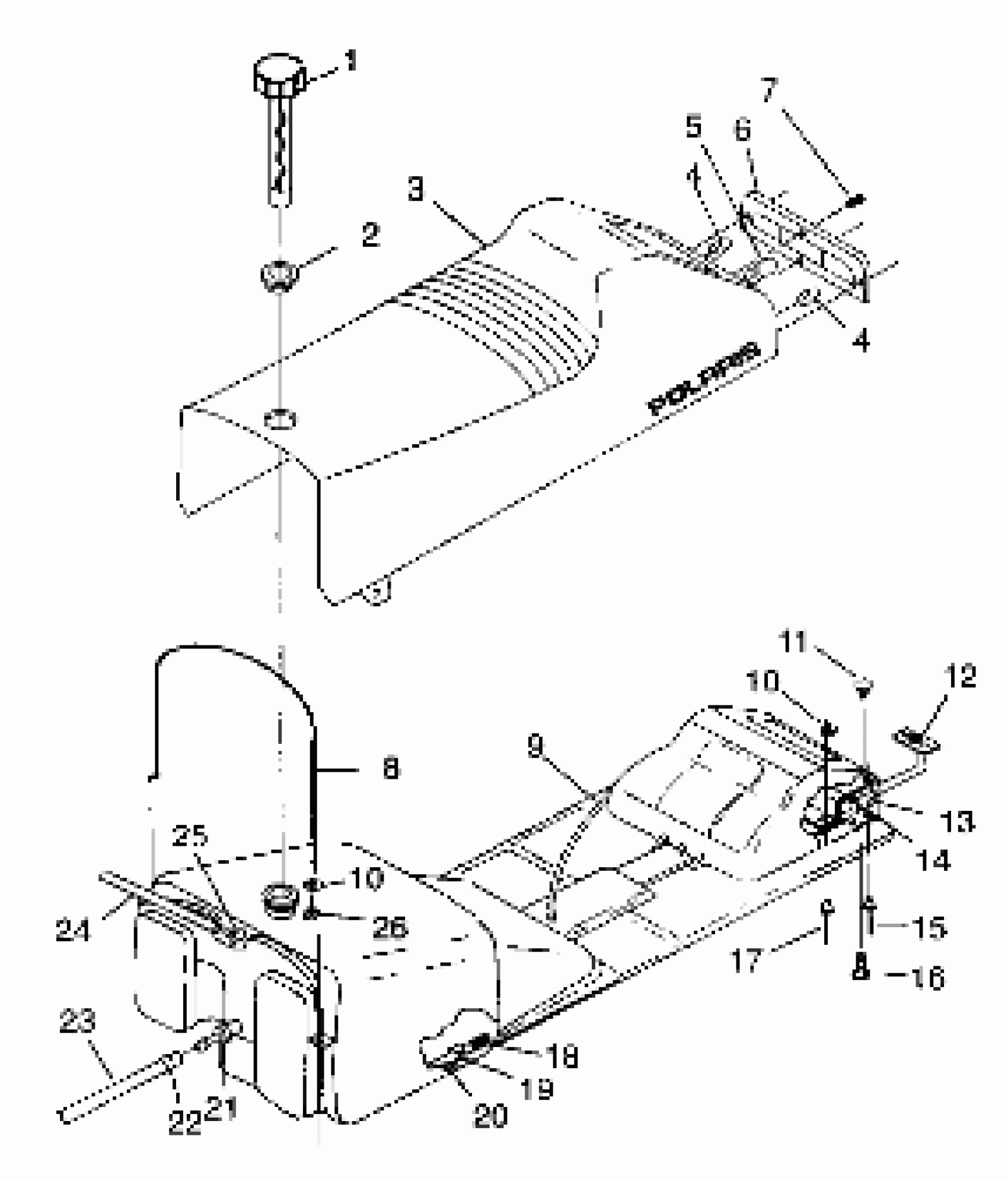

Polaris 700 RMK - 099SR7ASA SEAT and GAS TANK - 099SR7ASA (4948524852a006) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GROMMET,FUELTANK

5410842

Unavailable

3

COVER ASM,SEAT,LONG

2682396

Unavailable

3

SEAT ASM,LONG (Incl. 4-15,17-21,25,26)

2682397

Unavailable

4

BULB,TAILLIGHT(10)

4030024

$4.84

4

BULB,TAILLIGHT(10)

4030024

$4.84

5

Bulb, Brakelight

4030045

Unavailable

6

LENS,TAILLIGHT

5430423

Unavailable

7

SCREW(10)

7511840

Unavailable

8

CABLE,TANK,RETENTION

7080559

Unavailable

9

HARNESS,TAILLIGHT

2460398

Unavailable

10

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

10

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

11

CLIP,DART,(10)

7670097

Unavailable

12

NUT,RETAINER-WELD.(10)

7542147

$17.59

13

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

14

COVER,T/L PROTECTOR

5431436

$21.43

15

RIVET(50)

7621301

$3.99

16

SCREW,(10)

7517371

Unavailable

17

RIVET(50)

7621464

$3.99

18

FUELPICKUP,W/STRAINER

7052037

$12.94

19

RING, COMPRESSION(10)

7080402

$1.60

20

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

21

FITTING,OUT,90 DEG,,DOUBLE

7052143

Unavailable

22

HOSE CLAMP, RED

7080003

$1.49

23

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

24

FUELLINE,3MMX7MM

8450061-600

Unavailable

25

FITTING,90 DEG,1/8,(10)

7052095

$4.79

26

NUT(10)

7541925

$1.49
