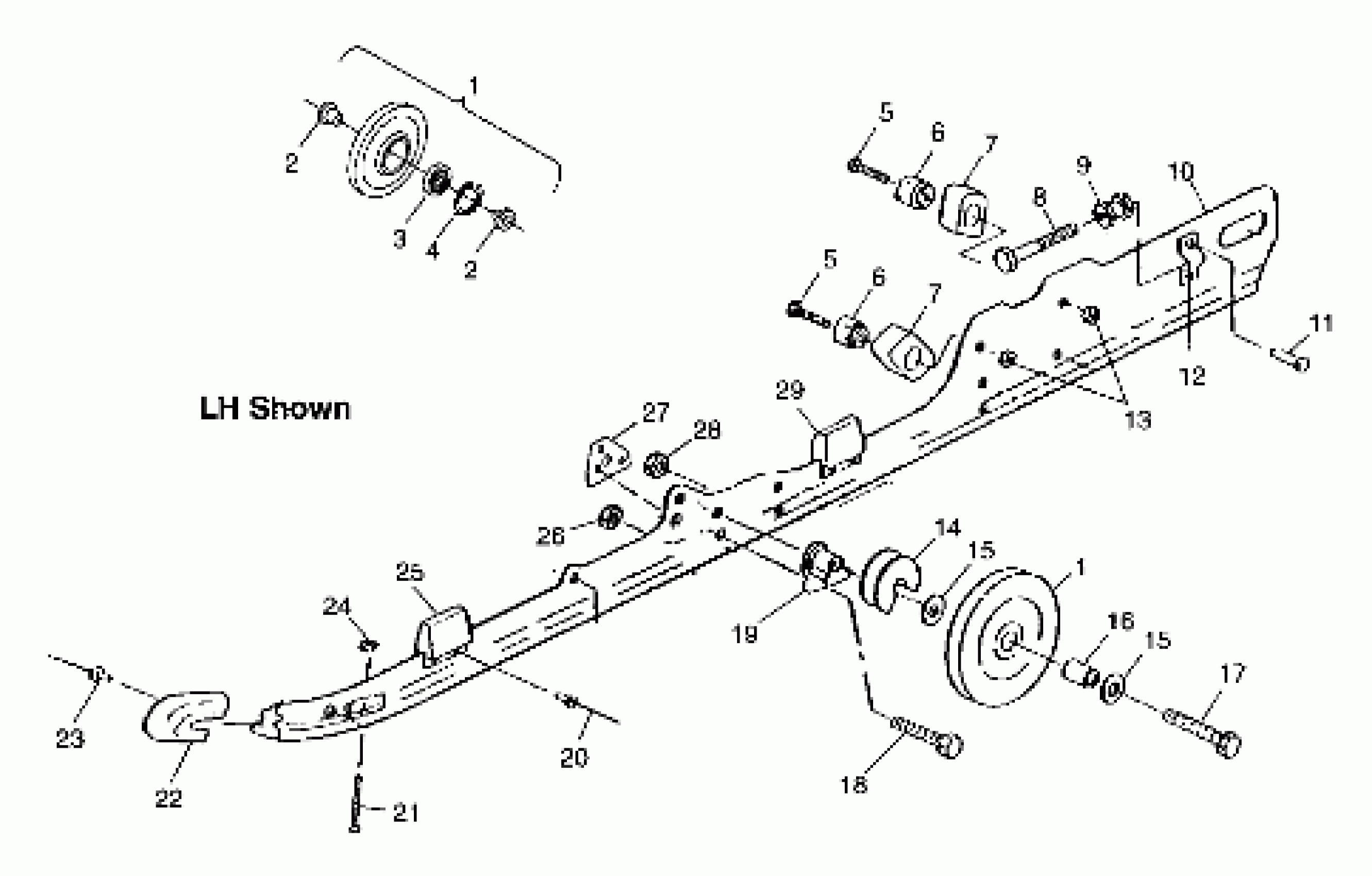

Polaris 700 RMK - 099SR7ASA RAIL MOUNTING (SUSPENSION) - 099SR7ASA (4948524852b013) Diagram

#

Description
Price

1

WHEEL,BOGIE,SCRL,M.BLUE (Incl. 2-4)

1594082-107

Unavailable

1

WHEEL,BOGIE,SCRL,M.BLUE (Incl. 2-4)

1594082-107

Unavailable

2

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

2

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

3

BEARING (1 per Wheel)

3514303

$11.99

4

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

5

BOLT,(10)

7515545

$5.59

5

BOLT,(10)

7515545

$5.59

6

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

6

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

7

BUMPER,F.PIVOT ARM

5410925

$12.94

7

BUMPER,F.PIVOT ARM

5410925

$12.94

8

BOLT, ADJUSTER(10)

7515455

$29.99

9

NUT,TENSIONER ADJ.

5020943

$20.22

10

RAIL ASM,LH,X-10,136 (Incl. 11,12,20,22,23,25,29)

1541155

Unavailable

10

RAIL ASM,RH,X-10,136 (Incl. 11,12,20,22,23,25,29)

1541156

$319.99

11

RIVET,(50)

7621501

$2.39

12

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

13

NUT LOCK(10)

7542411

$3.19

14

ROLLER,SPRING,SQ. Substituted by 5433575

5433025

Unavailable

15

WASHER, FLAT(10)

7555852

$2.39

15

WASHER, FLAT(10)

7555852

$2.39

16

SPACER, WHEEL

5333116

$7.99

17

BOLT(10)

7512538

$6.39

18

BOLT(10)

7512404

$3.99

19

SPACER

5630399

$11.99

20

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

21

BOLT(10)

7515175

$3.99

22

COVER,RAIL TIP

5433005

Unavailable

23

RIVET(50)

7621435

$1.49

24

NUT-LOCK(10)

7542122

$1.49

25

REINF., BUMPER

5222629

$13.75

25

BUMPER, RAIL

5810554

$7.27

26

NUT-LOCK(10)

7542439

$1.49

27

PLATE,RAILSUPPORT,136"

5211843

Unavailable

28

NUT, NYLOCK(10)

7542525

$4.79

29

REINF., BUMPER

5222629

$13.75

29

BUMPER,SUSPENSION

5811097

Unavailable
