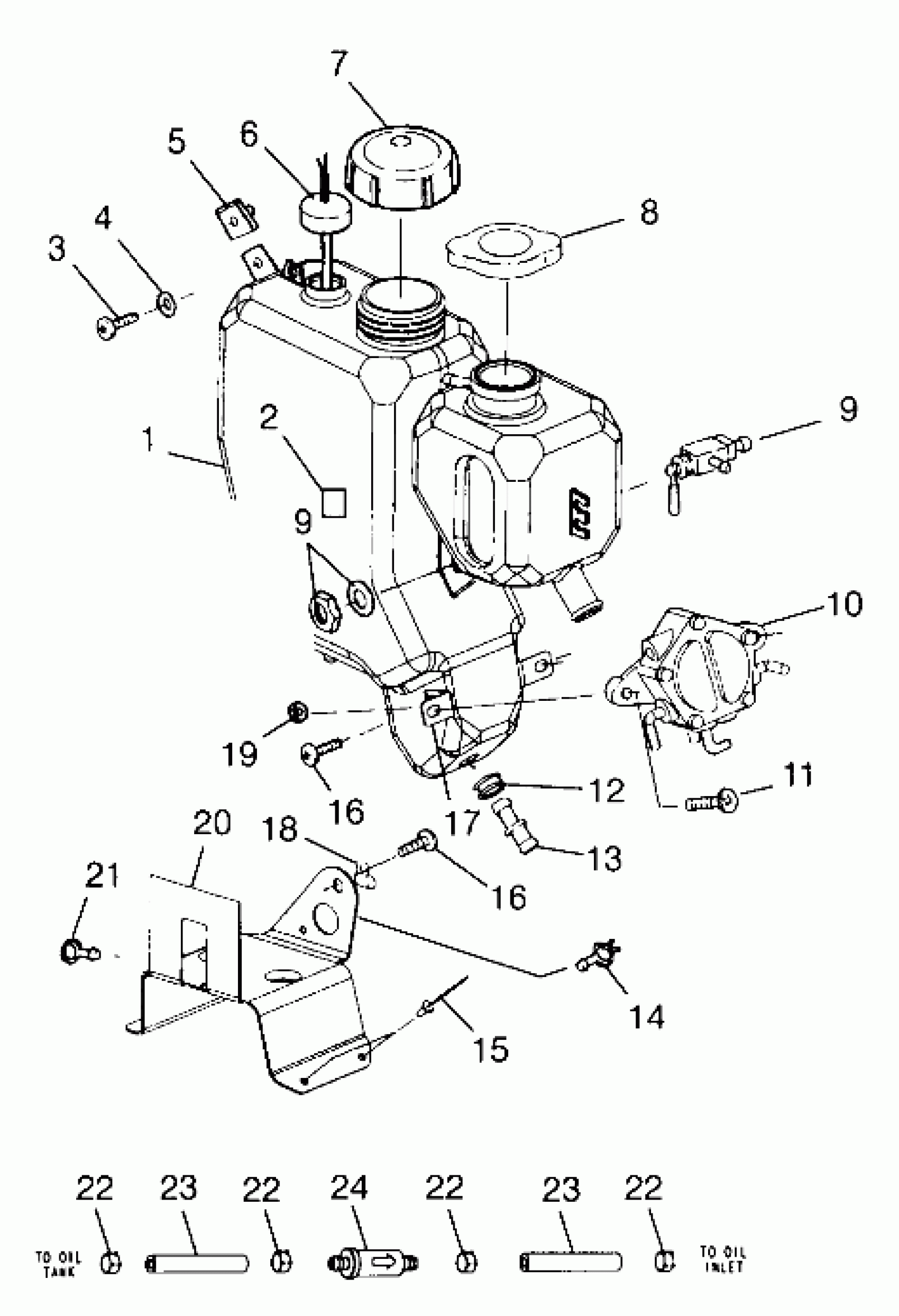

Polaris 700 RMK - 099SR7ASA OIL TANK - 099SR7ASA (4948524852b010) Diagram

#

Description
Price

1

TANK,OIL/COOLANT COMBO. Substituted by 2201437

5432749

Unavailable

2

DECAL,FUEL SHUT-OFF

7077442

Unavailable

3

BOLT(10)

7512276

$4.79

4

WASHER,WROUGHT(10)

7558302

$1.59

5

Nut

7670096

$1.59

6

SENSOR,OIL LEVEL

4110134

$72.84

7

CAP,OIL,VENTED Substituted by 1240094

2511287

Unavailable

8

CAP, PRESSURE,(13 LB)

2511270

$24.27

9

Valve, Fuel (See Footnote) (See Engine Mounting Pg. C6, Ref. 20)

-------

Unavailable

9

Valve, Fuel (See Footnote) (See Engine Mounting Pg. C6, Ref. 20)

-------

Unavailable

10

Pump, Fuel (See Footnote) (See Engine Mounting Pg. C6, Ref. 18)

-------

Unavailable

11

SCREW,(10)

7517455

$8.99

12

GROMMET-TANK FITTING(10)

7052028

$6.39

13

FTTNG,STRAIGHT,PRESS-IN

7052207

$8.79

14

CLIP,TWIST LOCK

7080745

$2.23

15

RIVET,INTERLOCK,B(50)

7661638

$1.49

16

SCREW(10)

7517615

$3.19

16

SCREW(10)

7517615

$3.19

17

BRKT,FUEL PUMP MOUNT-Z

5242680

$9.91

18

CLAMP-CABLE

7080367

$2.39

19

NUT-LOCK(10)

7542122

$1.49

20

BRKT,OIL/COOL.TANK,ALUM

5242688

Unavailable

21

CLIP, PLASTIC(10)

4020139

$4.79

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

23

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

24

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65
