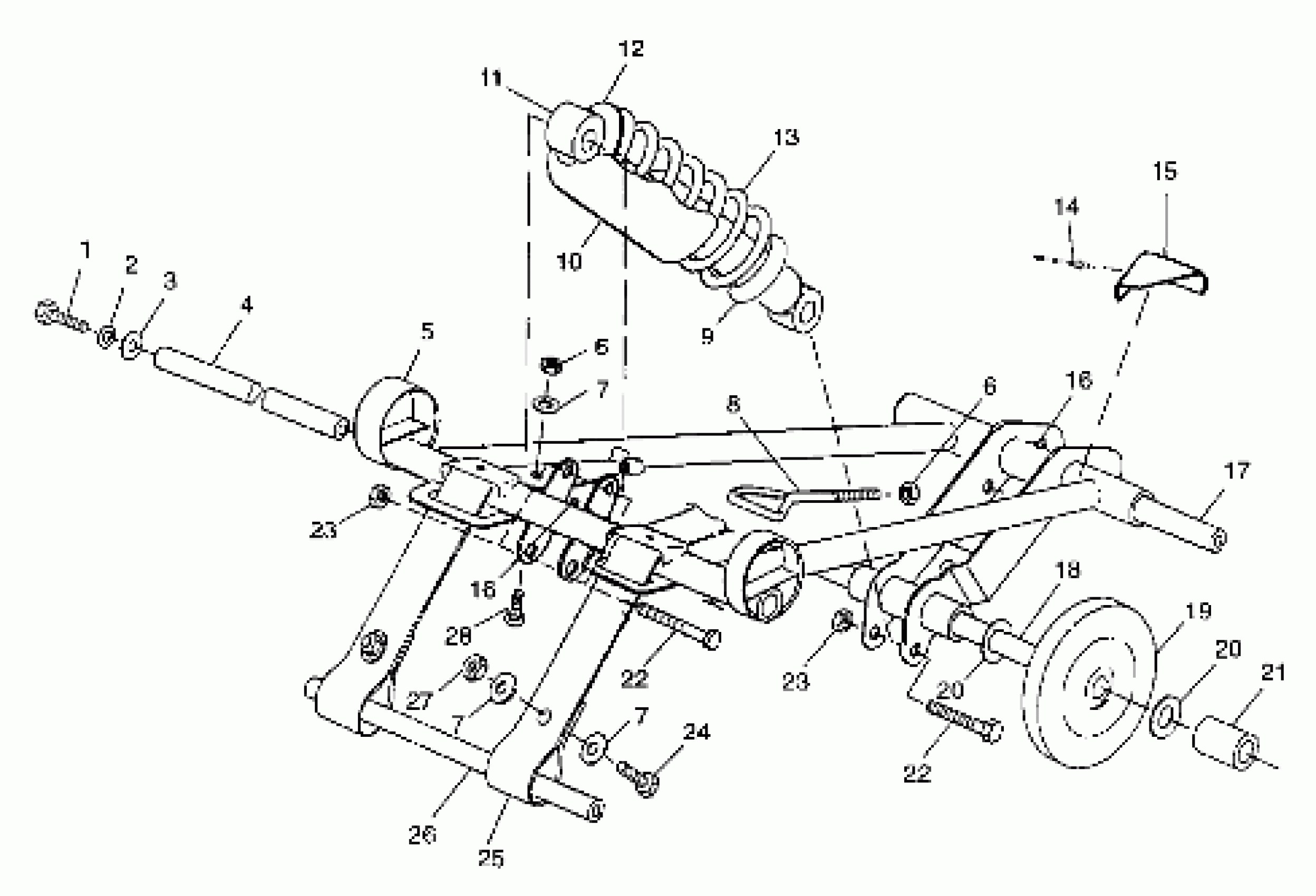

Polaris 700 RMK - 099SR7ASA FRONT TORQUE ARM - 099SR7ASA (4948524852b014) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

Shaft

5020908

$69.99

5

ARM ASM,FRONT TORQUE Substituted by 1541466-067 (Incl. 15)

1541314

Unavailable

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

WASHER(10)

7555716

$1.59

7

WASHER(10)

7555716

$1.59

7

WASHER(10)

7555716

$1.59

8

BOLT,EYE

7010050

Unavailable

9

RETAINER,SPRING Substituted by 5245067

5241276-067

Unavailable

10

SHIELD-SPRING

5430671

$24.27

11

SHOCK,FRT.TRACK,X10,136

7041745

Unavailable

12

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

13

SPRING,BLACK,COMP.

7041253-067

$95.22

14

RIVET(50)

7621431

$1.49

15

PROTECTOR,LH,TRACK,LWT

5242928

Unavailable

15

PROTECTOR,RH,TRACK,LWT

5242929

Unavailable

16

ZERK,FITTING,THREADED(10)

7080433

$1.49

16

ZERK,FITTING,THREADED(10)

7080433

$1.49

17

Shaft (See Footnote) (See Suspension Pg. B12, Ref. 23)

-------

Unavailable

18

Shaft (See Footnote) (See Suspension Pg. B12, Ref. 21)

-------

Unavailable

19

WHEEL, IDLER

1543018

$56.65

20

MACHINERY BUSHING(10)

7556301

$3.19

20

MACHINERY BUSHING(10)

7556301

$3.19

21

SPACER, OUTER

5332784

Unavailable

22

BOLT Substituted by 7515491

7515433

$1.59

22

BOLT Substituted by 7515491

7515433

$1.59

23

NUT LOCK(10)

7542411

$3.19

23

NUT LOCK(10)

7542411

$3.19

24

SCREW ,(10)

7517313

$4.79

25

STRAP,LIMITER,FRONT

5411045

Unavailable

26

Shaft, Pivot Arm (See Footnote) (See Suspension Pg. B12, Ref. 20)

-------

Unavailable

27

NUT,NYLOC,(10)

7542344

$3.99

28

BOLT(10)

7512377

$4.79
