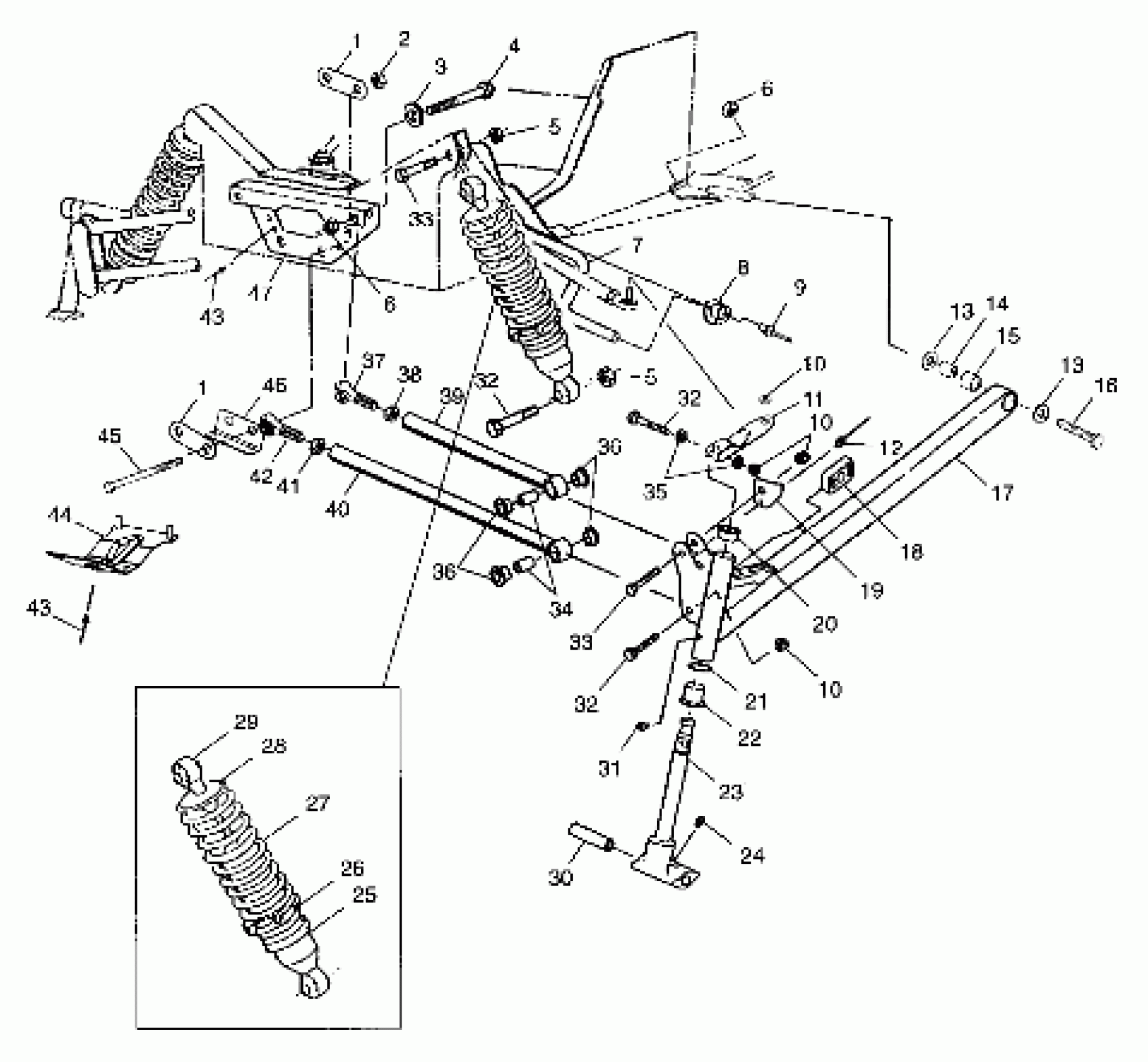

Polaris 700 RMK - 099SR7ASA FRONT SUSPENSION - 099SR7ASA (4948524852b001) Diagram

#

Description
Price

1

STRAP,SPACER BOTTOM

5211345

$12.99

1

STRAP,SPACER BOTTOM

5211345

$12.99

2

NUT FLEX,(10)

7542703

Unavailable

3

WASHER THRUST(10)

7558702

$1.59

4

BOLT(10)

7512551

Unavailable

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

6

NUT, LOCK,(10)

7542503

$10.39

6

NUT, LOCK,(10)

7542503

$10.39

7

BAR,SWAY

5224757-067

Unavailable

8

BUSHING,SWAY BAR

5432412

$15.99

9

RIVET,(50)

7621477

$1.19

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

11

ARM,LH,STRG,BLK.

5241660-067

Unavailable

11

ARM,RH,STRG,BLK.

5241661-067

Unavailable

12

RIVET(50) Substituted by 7661130

7661643

Unavailable

13

WASHER(10)

7555721

$1.49

13

WASHER(10)

7555721

$1.49

14

TUBE, BUSHING

5010310

$9.70

15

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

16

BOLT(10)

7512557

$7.60

17

ARM,TRLG,LH,CRC. Substituted by 2201470 (Incl. 13,15)

1822517

Unavailable

17

ARM,TRLG,RH,CRC. Substituted by 2201471 (Incl. 13,15)

1822518

Unavailable

18

SLIDE,SWAYBAR,9/16

5432674

Unavailable

19

STOP,LH,STRG,BLK

5241777-067

$15.08

19

STOP,RH,STRG,BLK.

5241778-067

$18.23

20

BUSHING-FLANGE

3573909

$2.39

21

WASHER SPECIAL(10)

7556509

$1.59

22

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

23

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

24

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

25

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

26

RING,SPRING PRELOAD ADJ.

5431734

$52.60

27

SPRING,COMPRESSION

7041551-067

$74.99

28

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

29

SHOCK,GAS,IFS

7041543

$179.99

30

BUSHING,PIVOT,(10)

5010158

$19.99

31

ZERK,FITTING,THREADED(10)

7080433

$1.49

32

BOLT Substituted by 7515491

7515433

$1.59

32

BOLT Substituted by 7515491

7515433

$1.59

32

BOLT Substituted by 7515491

7515433

$1.59

33

BOLT(10)

7515415

$1.49

33

BOLT(10)

7515415

$1.49

34

BUSHING-RADIUS ROD,(10)

5010127

$7.99

35

WSHR-.813X.406X.105-Y

7555832

$2.39

36

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

36

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

37

ROD,END,7/16 LINED Substituted by 7061049

7061010

Unavailable

38

NUT JAM(10)

7542520

$2.39

39

ROD,RAD,UPPER,BLK

1822446-067

Unavailable

40

ROD,RAD,LOWER,BLK

1822444-067

$60.70

41

NUT-JAM(10)

7542711

$2.39

42

RODEND,1/2,W/LINER,1.05 WIDE Substituted by 7061052

7061027

$48.56

43

RIVET,INTERLOCK,B(50)

7661638

$1.49

43

RIVET,INTERLOCK,B(50)

7661638

$1.49

44

BRACE-PAN,LOWER,BLK

5242575-067

$24.27

45

BOLT(10)

7512684

Unavailable

46

BRKT,RAD.ROD,BTM.

5242578

$44.99

47

BRACE,FR.BULKH.,BLK Substituted by 5242112-067

5241641-067

Unavailable
