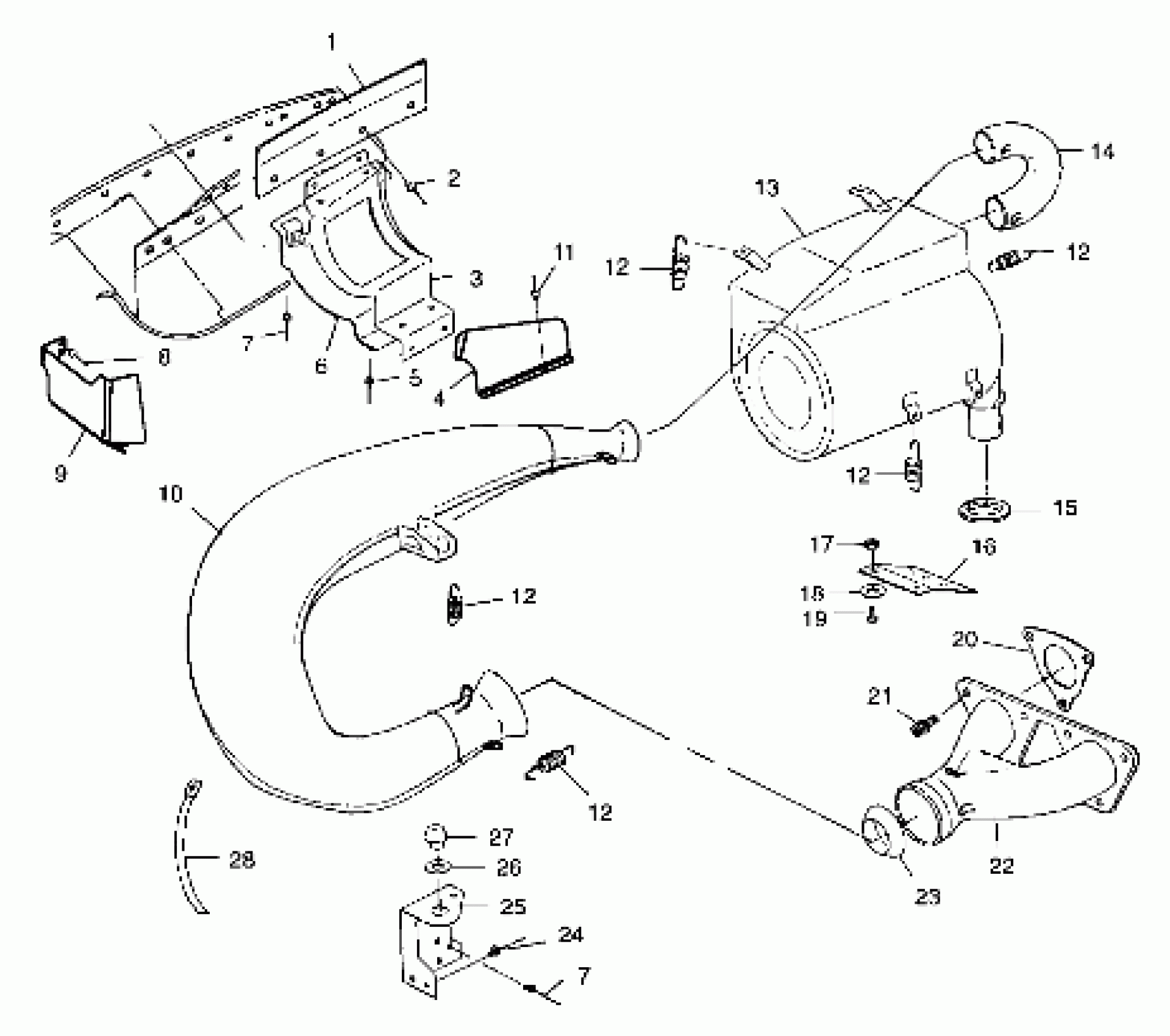

Polaris 700 RMK - 099SR7ASA EXHAUST SYSTEM - 099SR7ASA (4948524852c005) Diagram

#

Description
Price

1

SHIELD,HEAT,HD.GUIDE

5242183

$12.39

2

POP RIVET(50)

7621402

$1.49

3

SUPPORT,RESONATOR,BLK

5242254-029

Unavailable

4

SHIELD-HEAT,EXHAUST,SIDE

5243091

Unavailable

5

PIN,GROOVE,3/16 Substituted by 3233067

7661634

Unavailable

6

SHIELD,RESON/CRADLE

5241994

Unavailable

7

RIVET,INTERLOCK,B(50)

7661638

$1.49

7

RIVET,INTERLOCK,B(50)

7661638

$1.49

8

RIVET,3/16X.402(50)

7621432

$1.49

9

SHIELD-HEAT,EXHAUST,FRONT

5243090

$11.41

10

COVER,TUNED PIPE,TOP

5241720

Unavailable

10

COVER,TUNED PIPE,BTM. Substituted by 5244476

5241721

Unavailable

10

PIPE ASM,TUNED (Incl. 28)

1260764

Unavailable

11

RIVET(50)

7621433

$1.49

12

SPRING-EXHAUST

7041687

$5.65

12

SPRING-EXHAUST

7041687

$5.65

12

SPRING-EXHAUST

7041687

$5.65

12

SPRING-EXHAUST

7041687

$5.65

12

SPRING-EXHAUST

7041687

$5.65

13

RESONATOR,BLK

1260808-029

Unavailable

14

U-TUBE, BLK.

1260802-029

Unavailable

15

OUTLET,EXH,RUBBER

5411258

Unavailable

16

Deflector, Snow

5222615-067

$20.63

17

NUT, LOCK(10)

7542103

$5.59

18

WASHER,WROUGHT(10)

7558302

$1.59

19

BOLT(10)

7512193

$2.39

20

GASKET,EXHAUST Substituted by 5811952

5811274

$24.99

21

SCREW(10)

7517322

$2.39

22

MANIFOLD,BLK

1260757-029

Unavailable

23

SEAL,EXH.SOCKET

3610046

$36.41

24

RIVET(50) Substituted by 7661130

7661643

Unavailable

25

BRKT,MUFFLER,FRONT-Z

5241832

$22.23

26

WASHER

7556004

Unavailable

27

DAMPNER, VIB.

5410467

$8.79

28

CLAMP,WORM,(10) (.44 x 3.13)

7080739

$10.63

28

CLAMP,WORM,(10) (.44 x 3.69)

7080740

$13.19

28

CLAMP,WORM,(10) (.44 x 4.25)

7080741

$19.99

28

CLAMP,WORM,(10) (.44 x 6.38)

7080742

$15.03
