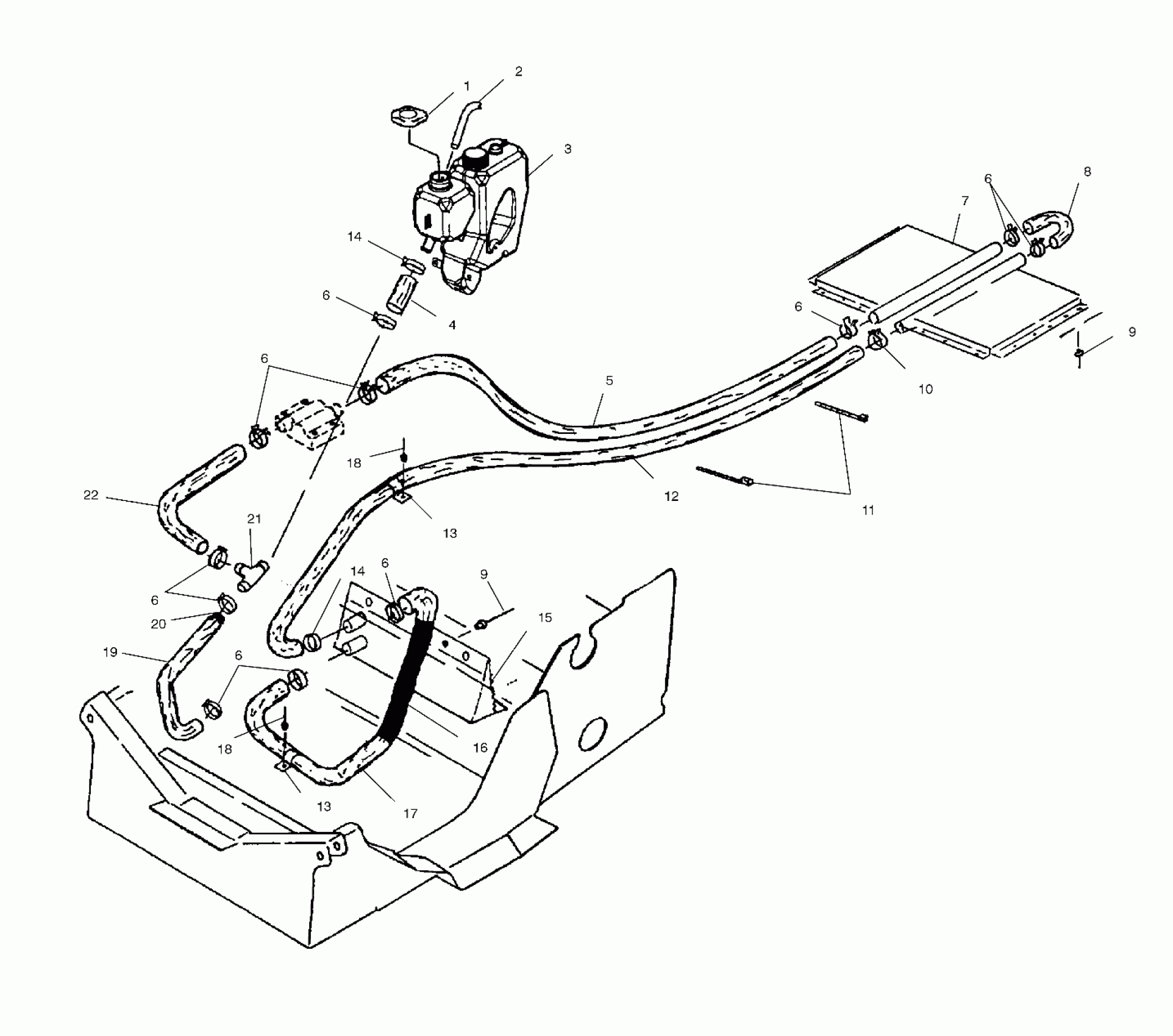

Polaris 700 RMK - 099SR7ASA COOLING SYSTEM - 099SR7ASA (4948524852b007) Diagram

#

Description
Price

1

Cap, Pressure (See Oil Tank Pg. B10, Ref. 8)

-------

Unavailable

2

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

3

Tank, Oil/Coolant (See Oil Tank Pg. B10, Ref.1)

-------

Unavailable

4

HOSE,TEE/BOTTLE(SN70)

5411481

Unavailable

5

HOSE,(BRK.COOL.-REAR)

5411217

Unavailable

6

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

6

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

6

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

6

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

6

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

6

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

6

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

7

EXCHANGER,R.COOLING

2511301

$226.99

8

HOSE,COOLING

5410758

Unavailable

9

RIVET,INTERLOCK,B(50)

7661638

$1.49

9

RIVET,INTERLOCK,B(50)

7661638

$1.49

10

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

HOSE,(B'HD COOL.-REAR)

5411216

$70.39

13

CLAMP, 1"HOSE(10)

7080585

$3.99

13

CLAMP, 1"HOSE(10)

7080585

$3.99

14

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

14

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

15

EXCHANGER,CLOSE-OFF

2511304

$399.99

16

TUBING-CONVOLUTED 1"X16"

5521488

Unavailable

17

HOSE,ENG.OUT/BTM.CLSEOFF

5411462

Unavailable

18

POP RIVET(50)

7621425

$1.49

18

POP RIVET(50)

7621425

$1.49

19

HOSE,TEE/PUMP IN(SN70)

5411480

Unavailable

20

SPRING,HOSE RETAINER

7042041

Unavailable

21

CONNECTOR, TEE,(1 IN.)

7052087

Unavailable

22

HOSE,TEE/BRK.COOLER(SN70)

5411482

Unavailable
