Description

Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

4

NUT(10)

7541925

$1.49

5

DECAL,CONSOLE,IGNITION

7077367

Unavailable

6

SOCKET-PACKARD#12047767

4010192

Unavailable

7

HOUSING

4020063

$3.19

8

Terminal, Ring

4020092

Unavailable

9

Housing w/Receptacle

4020057

$3.51

10

HARNESS-MAIN WIRE,LO LEVEL Substituted by 2460733

2460703

$204.76

11

KIT,IGN.SWITCH

2200358

$76.89

12

WASHER(10)

7558203

$3.19

12

WASHER(10)

7558203

$3.19

13

SCREW(10)

7517441

$2.39

13

SCREW(10)

7517441

$2.39

14

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

15

CABLE,CHOKE (Incl. 16,21)

7080636

Unavailable

16

KIT-CHOKE CONTROL

2200188

$24.27

17

WASHER,NYLON

7555932

$2.39

18

RIVET, POP(50)

7621330

$1.49

19

GUIDE-RECOIL

5243049

$9.70

20

WASHER-LOCK(10)

7571610

$3.99

21

NUT,CHOKE

5432944

$8.79

22

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

5410611

Unavailable

23

NUT,IGNITION

7547035

$8.79

24

CONSOLE-HYB,STD,W/PRIMER

5433143

Unavailable

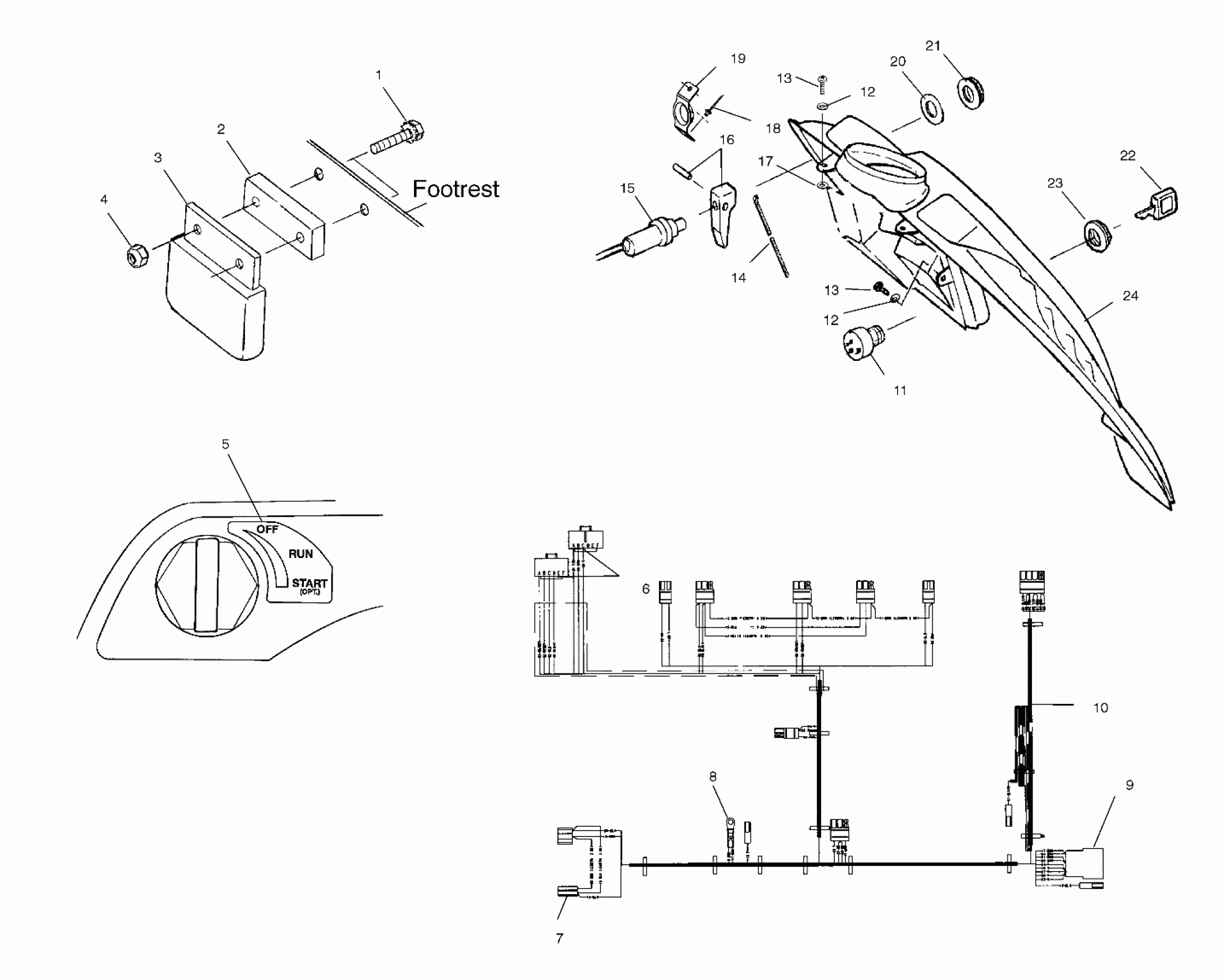

Polaris 700 RMK - 099SR7ASA CONSOLE - 099SR7ASA (4948524852a013) Diagram

BOLT(10)

SPACER,REGULATOR

REGULATOR,(14.3VAC),LR-7

NUT(10)

DECAL,CONSOLE,IGNITION

SOCKET-PACKARD#12047767

HOUSING

Terminal, Ring

Housing w/Receptacle

HARNESS-MAIN WIRE,LO LEVEL Substituted by 2460733

KIT,IGN.SWITCH

WASHER(10)

WASHER(10)

SCREW(10)

SCREW(10)

CABLE TIE-RELEASABLE,5 1/2"(10)

CABLE,CHOKE (Incl. 16,21)

KIT-CHOKE CONTROL

WASHER,NYLON

RIVET, POP(50)

GUIDE-RECOIL

WASHER-LOCK(10)

NUT,CHOKE

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

NUT,IGNITION

CONSOLE-HYB,STD,W/PRIMER
