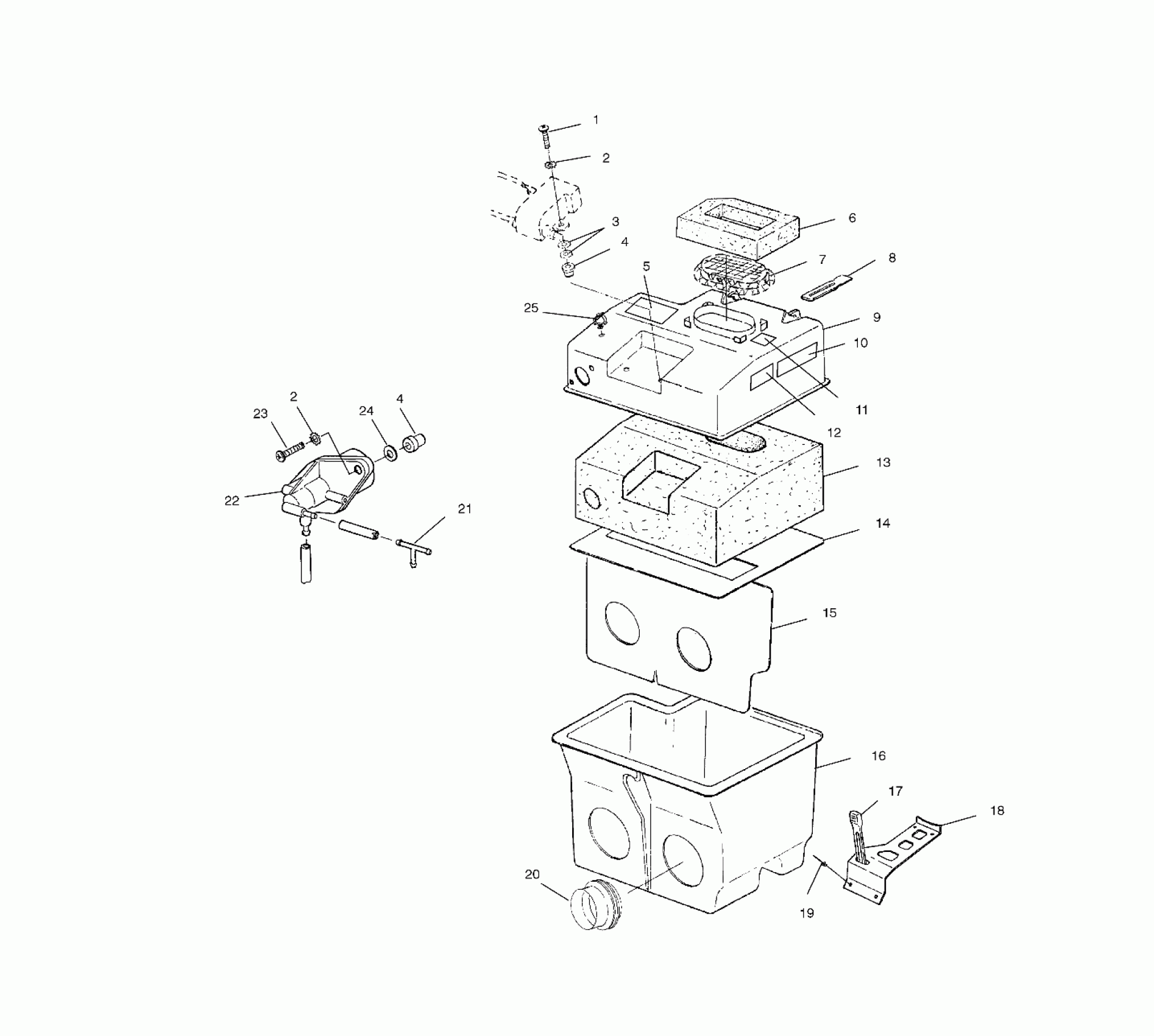

Polaris 700 RMK - 099SR7ASA AIR BOX - 099SR7ASA (4948524852b011) Diagram

#

Description
Price

1

BOLT(10)

7512281

$3.99

2

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

2

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

3

WASHER,NYLON

7555932

$2.39

4

NUT-WELL(10)

7541923

$5.59

4

NUT-WELL(10)

7541923

$5.59

5

DECAL,COOL.SYSTEM [No Longer Available]

7075359

Unavailable

6

FOAM,AIRBOX,CHIMNEY,HYB.

5811606

Unavailable

7

MESH-WIRE,FORMED

5243219

Unavailable

8

RETAINER-TAB,(10)

5411075

Unavailable

9

TOP,SILENCER INTAKE,ACCS

5433169

Unavailable

10

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

11

DECAL,CAUTION,AIRBOX

7075351

Unavailable

12

DECAL, GREASING [No Longer Available]

7073426

$7.27

13

FOAM,AIRBOX,TOP,ACCS.

5811648

Unavailable

14

PLATE,SILENCER INTAKE

5850134

Unavailable

15

PLATE,SILENCER,INTAKE,VERT.

5850139

$10.71

16

SILENCER,INTAKE,DRILLED,ACCS Substituted by 5433538

5432963

Unavailable

17

STRAP,TIE-DOWN

5411129

$8.89

18

BRKT,SIL.MOUNT,LOW Substituted by 5243729

5241691

Unavailable

19

RIVET,INTERLOCK,B(50)

7661638

$1.49

20

BOOT,CARB

5411109

Unavailable

21

FITTING, T

3050141

$9.59

22

ACCS.ASM,(99 700RMK)

1251086

$308.99

22

GROMMET,ACCS.

5410982

$5.03

23

SCREW

7517377

$4.79

24

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

25

CLIP,SILENCER,(10)

7670102

$2.39
