Description

Price

-

Asm., Rail, M-10, LH [Incl. 1-3,11,15,16,25,34]

1541676-309

$354.99

-

Asm., Rail, M-10, RH [Incl. 1-3,11,15,16,25,34]

1541677-309

$354.99

1

Nut, Nylok

7541925

$1.49

1

Nut, Nylok

7541925

$1.49

2

Washer, Flat

7555783

$3.99

2

Washer, Flat

7555783

$3.99

2

Washer, Flat

7555783

$3.99

2

Washer, Flat

7555783

$3.99

3

Cap, Rail Tip

5433735

$20.22

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

6

Block, Rail Support

5132577

Unavailable

7

Plate, Rail Support

5244651

$9.84

8

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

9

BEARING [1 PER WHEEL]

3514303

$11.99

10

Asm., Wheel, Scrolled [Incl. 8,9]

1590275-312

Unavailable

10

Asm., Wheel, Scrolled [Incl. 8,9]

1590275-312

Unavailable

11

Bumper, Rail Jounce

5411947

$12.39

12

Screw

7512392

$4.79

13

Screw

7517773

$28.56

14

Nut, Tension Adjust

5132712

Unavailable

15

RIVET

7621501

$2.39

16

Block, Idler Bolt Adjust

5132611

$34.71

17

Guide, Slider, LH

5631103

$51.59

17

Guide, Slider, RH

5631104

Unavailable

18

Plate, Coupler Block

5245045

Unavailable

19

Bolt

7512310

$2.39

20

Block, Slider, Long, M-10, LH

5434239

$19.60

20

Block, Slide, Long, M-10, RH

5434240

$16.47

21

Block, Shock Pivot Threaded

5132584

$45.99

22

Bolt

7515511

$3.99

23

NUT

7542404

$1.59

24

Spacer

5133009

$2.22

25

Bolt

7511967

$5.43

26

CLAMP, RESERVOIR

5132832

$23.99

27

BOLT

7515319

$4.79

28

BOLT

7515382

$2.39

29

Washer, Spring

7576179

Unavailable

30

RIVET

7661845

$1.49

31

Mount, Wheel

5131314

$53.59

32

Bolt

7512329

$3.99

33

Hi-Fax, M-10, Basic

5521563-309

$36.41

34

Bolt

7511930

$2.39

35

Screw

7515199

$1.49

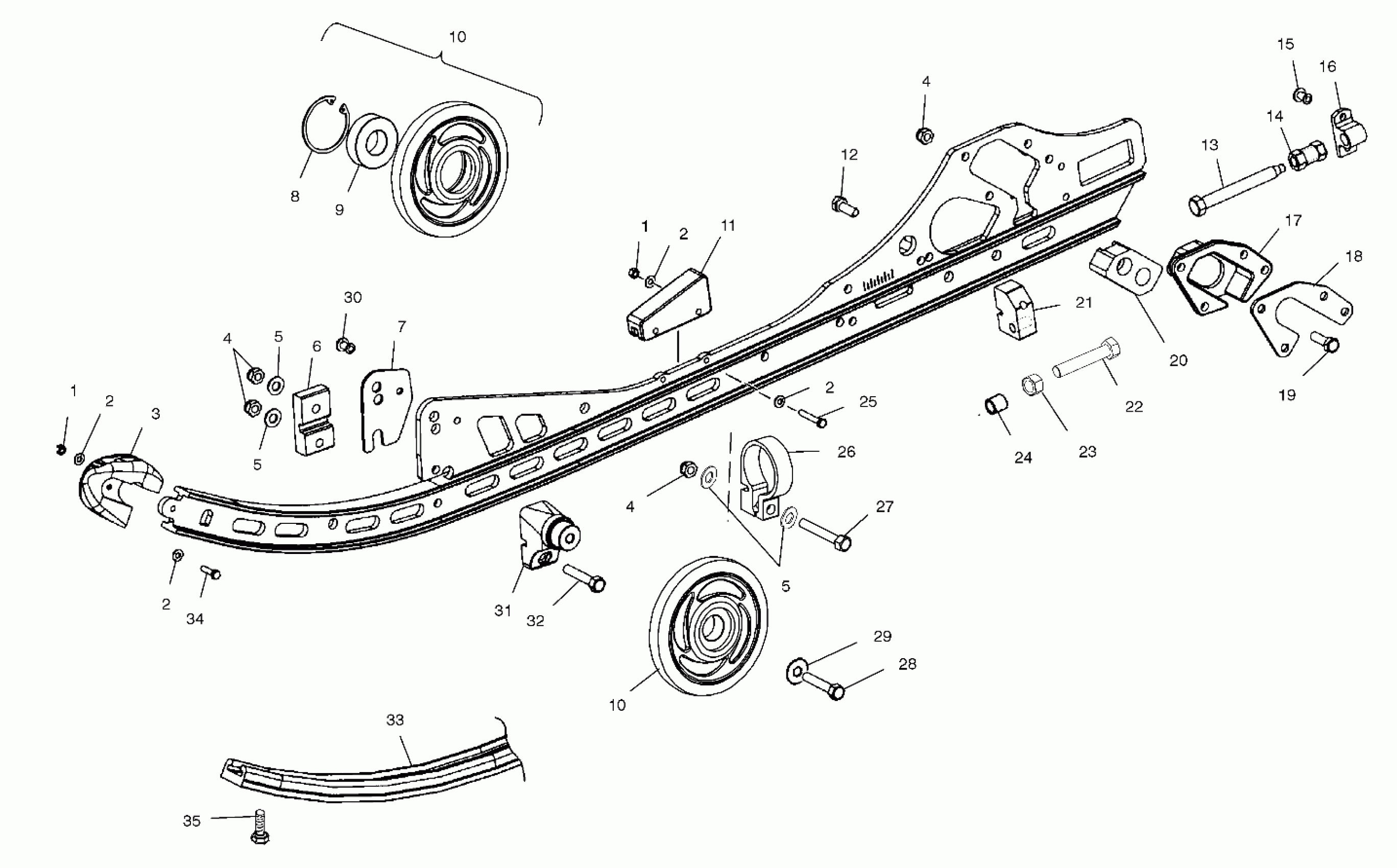

Polaris 700 CLASSIC BUILT BEFORE 1/1/01 - S02ND7CS RAIL MOUNTING (SUSPENSION) - S02ND7CS (4972227222B06) Diagram

Asm., Rail, M-10, LH [Incl. 1-3,11,15,16,25,34]

Asm., Rail, M-10, RH [Incl. 1-3,11,15,16,25,34]

Nut, Nylok

Nut, Nylok

Washer, Flat

Washer, Flat

Washer, Flat

Washer, Flat

Cap, Rail Tip

NUT-5/16-18 NYLOK-Y

NUT-5/16-18 NYLOK-Y

NUT-5/16-18 NYLOK-Y

WASHER-.344X.688X.063 FL-Y

WASHER-.344X.688X.063 FL-Y

WASHER-.344X.688X.063 FL-Y

Block, Rail Support

Plate, Rail Support

RET.RING-TRUARC [1 PER WHEEL]

BEARING [1 PER WHEEL]

Asm., Wheel, Scrolled [Incl. 8,9]

Asm., Wheel, Scrolled [Incl. 8,9]

Bumper, Rail Jounce

Screw

Screw

Nut, Tension Adjust

RIVET

Block, Idler Bolt Adjust

Guide, Slider, LH

Guide, Slider, RH

Plate, Coupler Block

Bolt

Block, Slider, Long, M-10, LH

Block, Slide, Long, M-10, RH

Block, Shock Pivot Threaded

Bolt

NUT

Spacer

Bolt

CLAMP, RESERVOIR

BOLT

BOLT

Washer, Spring

RIVET

Mount, Wheel

Bolt

Hi-Fax, M-10, Basic

Bolt

Screw
