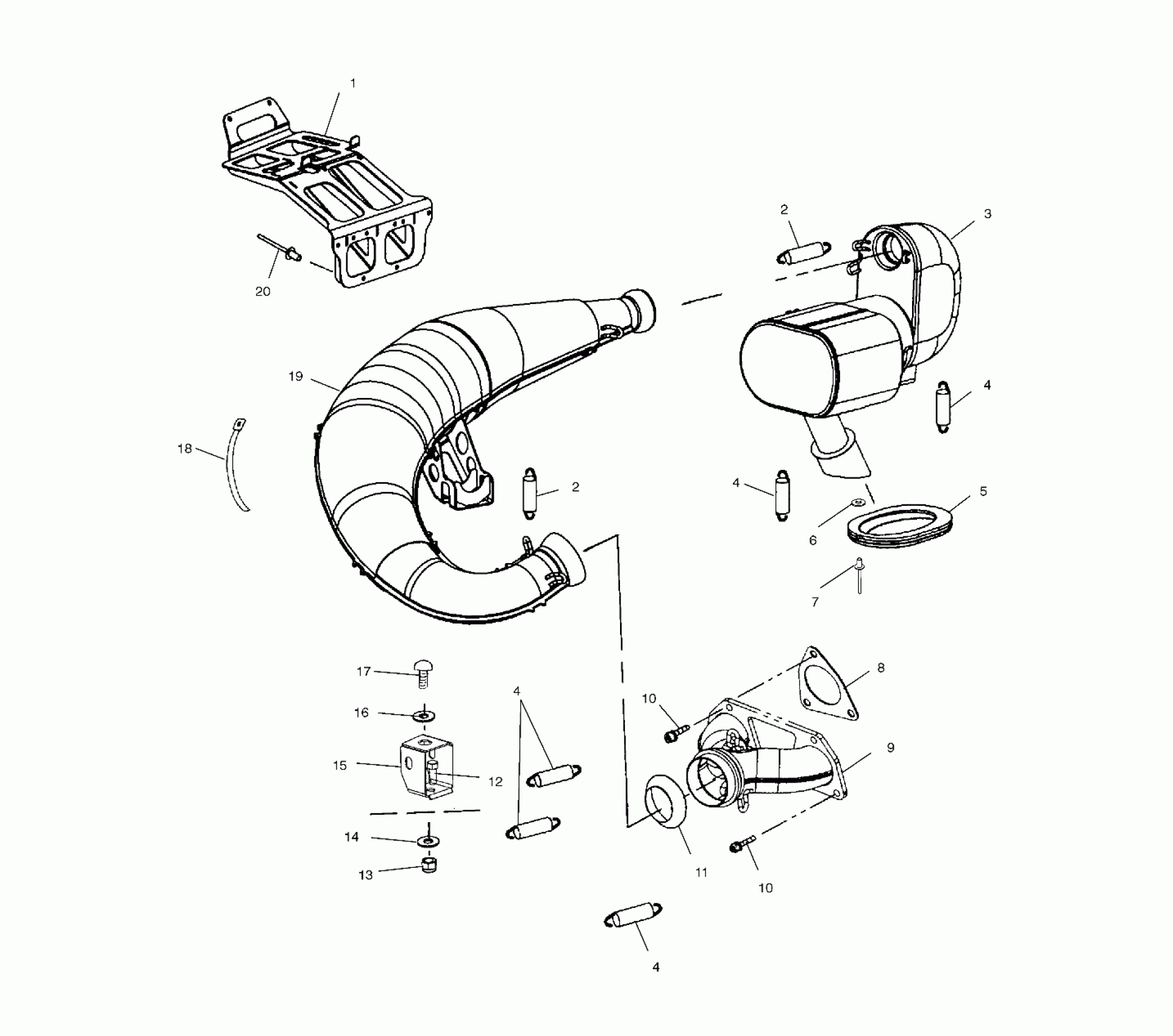

Polaris 700 CLASSIC BUILT BEFORE 1/1/01 - S02ND7CS EXHAUST - S02ND7CS (4972227222C05) Diagram

#

Description
Price

1

Bracket, Chassis/Resonator

1261008-029

Unavailable

2

Spring

7042029

$4.84

2

Spring

7042029

$4.84

3

Resonator

1261009-029

$649.99

4

SPRING-EXHAUST

7041687

$5.65

4

SPRING-EXHAUST

7041687

$5.65

4

SPRING-EXHAUST

7041687

$5.65

4

SPRING-EXHAUST

7041687

$5.65

5

Boot, Exhaust Outlet

5411684

Unavailable

6

Washer

7555904

$1.49

7

RIVET

7621467

$1.49

8

Gasket, Exhaust

5811799

Unavailable

9

Manifold

1261124-029

$216.99

10

Screw

7517322

$2.39

10

Screw

7517322

$2.39

11

Seal, Exhaust

3610046

$36.41

12

Screw

7515440

$3.99

13

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

14

Washer, Thrust

7555788

$4.99

15

Bracket, Chassis/Pipe

5245498

$59.99

16

WASHER

7556004

$7.19

17

Dampener, Vibration

5433576

$11.99

18

Clamp [.44 x 3.13]

7080739

$10.63

18

Clamp [.44 x 3.69]

7080740

$13.19

18

Clamp [.44 x 4.25]

7080741

$19.99

18

Clamp [.44 x 6.38]

7080742

$15.03

19

Asm., Tuned Pipe

1261123

$355.99

19

Cover, Tuned Pipe, Top

5241720

Unavailable

19

Matte, Sound

5830111

$86.51

19

Cover, Tuned Pipe, Bottom

5245403

Unavailable

19

Matte, Sound, Bottom

5830209

$82.39

20

RIVET-3/16-.090-.290

7661637

$1.49
