- 700 CLASSIC BUILT AFTER 1/1/01 - S02ND7CS
STEERING/HANDLEBAR - S02ND7CS (4970457045B03)

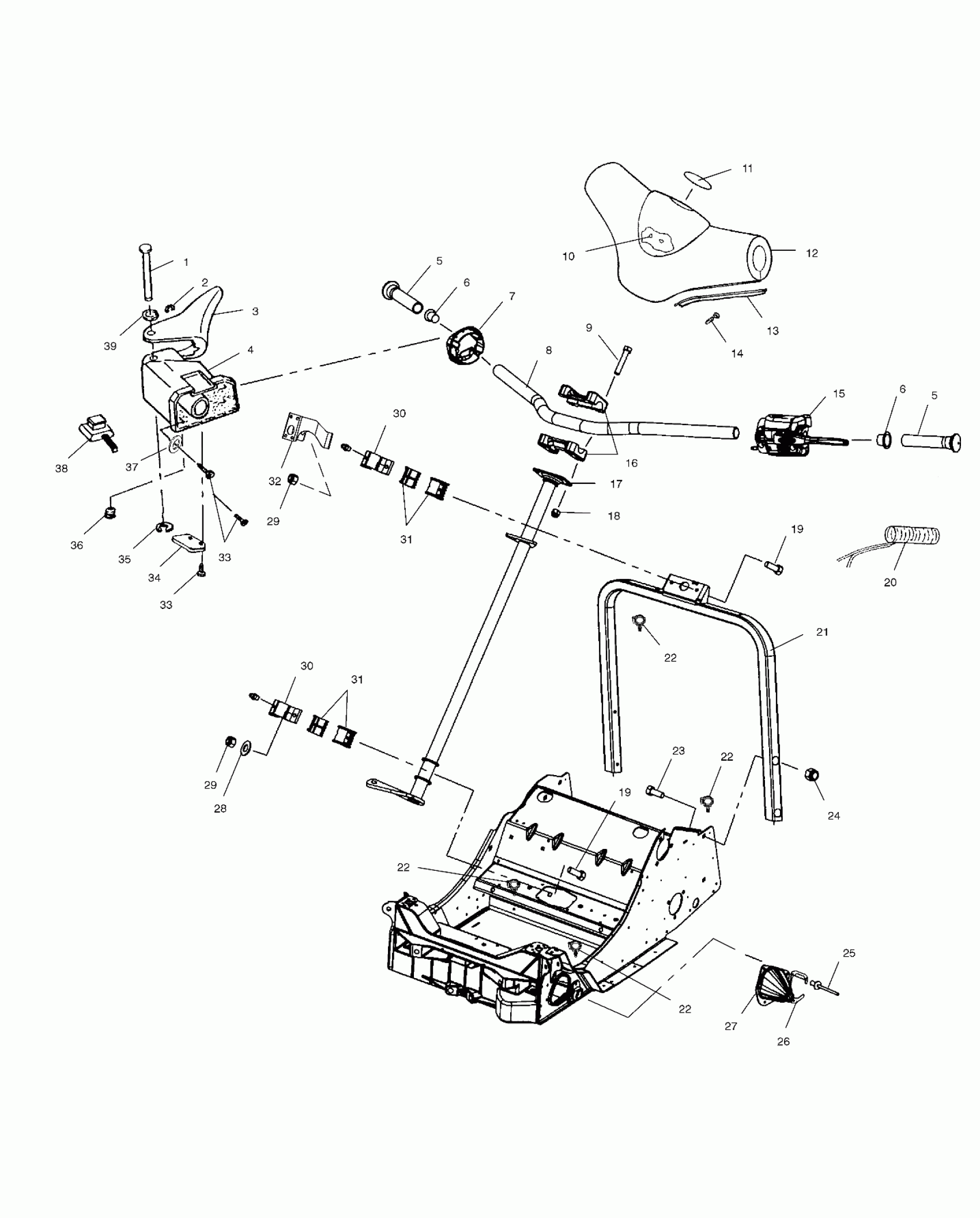

Polaris 700 CLASSIC BUILT AFTER 1/1/01 - S02ND7CS STEERING/HANDLEBAR - S02ND7CS (4970457045B03) Diagram
#
1
PIN-RETAINING .186X1.780-AL
7661624
$12.79
2
RET.RING-INDUSTRIAL(2000-25)-Z
7710503
$3.99
3
LEVER, THROTTLE
5432970
$29.03
3
Lever w/Heater
2010171
$84.98
4
BLOCK, THROTTLE/BRAKE
5431592
$49.99
5
Grip, Handlebar
5432634
$24.27
5
Grip, Handlebar
5432634
$24.27
6
PLUG, OVERFLOW
5431096
$2.02
6
PLUG, OVERFLOW
5431096
$2.02
7
Adaptor, Block
5433345
$15.99
8
Handlebar
5243355-067
$94.99
9
SCREW
7517238
$4.79
10
Nut, Push-On
7670106
$2.39
11
Emblem, Star
5434179
Unavailable
12
Cover, Handlebar
5433159-070
$77.99
13
Slide, Handlebar Cover
5433160-070
$28.32
14
Clip, Dart
4010287
$3.99
15
Asm., Control, LH [See Brake Pg. A12, Ref. 13]
-------
Unavailable
16
Block, Handlebar
5630187-067
$44.99
17
Post, Steering
1820965-067
Unavailable
18
Nut, Nylok
7542122
$1.49
19
BOLT, CARRIAGE
7517579
$6.39
19
BOLT, CARRIAGE
7517579
$6.39
20
Heater, Grip, Lo/Med/Hi
2460677
$60.70
21
Hoop, Steering
1013262-067
$62.39
22
CLIP, ROSEBUD
4020139
$4.79
22
CLIP, ROSEBUD
4020139
$4.79
22
CLIP, ROSEBUD
4020139
$4.79
22
CLIP, ROSEBUD
4020139
$4.79
23
Bolt, Carriage
7512377
$4.79
24
NUT-5/16-18 HX FLG NL-Y
7542343
$4.79
25
Rivet
7621433
$1.49
26
Plate, Tie Rod Boot
5244470
Unavailable
27
Boot, Tie Rod, LH
5433532
Unavailable
27
Boot, Tie Rod, RH
5433533
Unavailable
28
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
29
NUT-5/16-18 NYLOK-Y
7542324
$1.49
29
NUT-5/16-18 NYLOK-Y
7542324
$1.49
30
Fitting, Lubrication
7080510
$5.59
30
Bracket, Steering Post
5131841
Unavailable
30
Fitting, Lubrication
7080510
$5.59
30
Bracket, Steering Post
5131841
Unavailable
31
Bushing
5432785
$6.39
31
Bushing
5432785
$6.39
32
Bracket, Console Support
5244829
Unavailable
33
Screw
7511848
$3.99
33
Screw
7511848
$3.99
34
HOLDER, WIRE
5432261
$24.27
35
RING-RETAINING EXTERNAL
7710401
$3.99
36
SCREW, SET
7512465
$3.99
37
WASHER
7555727
$1.49
38
Switch, Auxiliary Shut-Off
4110106
$94.99
39
WASHER
7555730
$3.99
