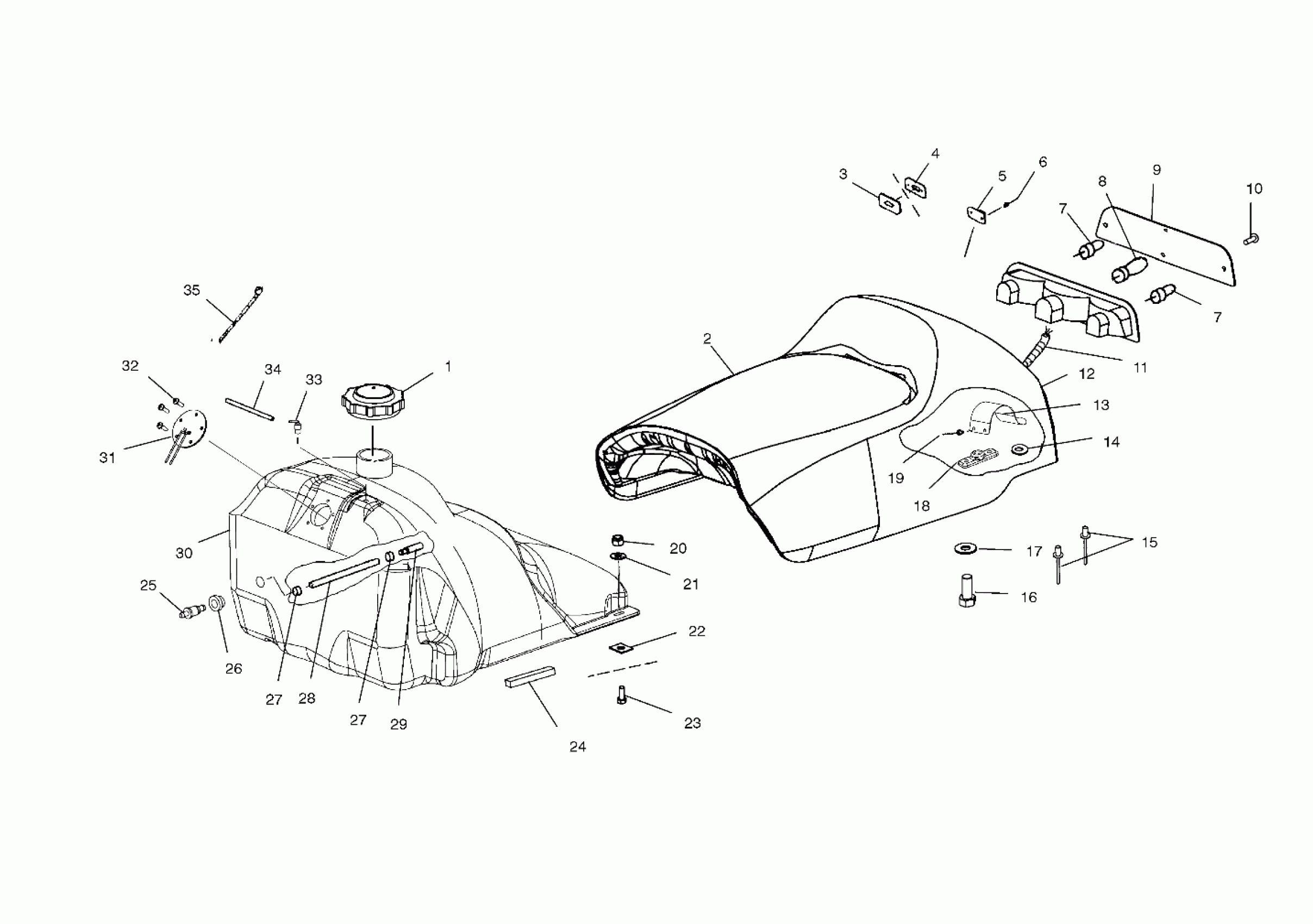

Polaris 700 CLASSIC BUILT AFTER 1/1/01 - S02ND7CS SEAT and GAS TANK - S02ND7CS (4970457045A04) Diagram

#

Description
Price

1

Cap, Fuel

2511195-070

Unavailable

1

Gasket

5810512

$9.11

2

Asm., Seat Cushion [Incl. 2-13,11]

2682759

Unavailable

2

Cover, Seat

2682760

Unavailable

3

Grommet, Relatch, Bottom

7080550

Unavailable

4

Grommet, Relatch, Top

7080549

Unavailable

5

Relatch w/Hole, Twist Lock

7080548

Unavailable

6

Rivet

7621337

$1.49

7

Bulb, Taillight

4030024

$4.84

7

Bulb, Taillight

4030024

$4.84

8

Bulb, Brakelight

4030045

Unavailable

9

Lens

5430423

Unavailable

10

Screw

7511840

Unavailable

11

Harness, Taillight

2460399

Unavailable

12

Housing, Taillight

5433341

Unavailable

13

Retainer, Tool Pouch Clip

5243185

$10.63

14

WASHER

7555727

$1.49

15

RIVET

7621319

$1.49

16

SCREW

7512232

$1.49

17

Washer, Flat

7558301

$1.49

18

NUT, SEAT

5631194

$4.99

19

RIVET

7621472

$1.49

20

Nut, Nylok

7542122

$1.49

21

WASHER, FLAT

7555960

$3.99

22

Nut, Speed

7670021

$6.99

23

BOLT, CARRIAGE

7512193

$2.39

24

Cushion, Tank

5810063

$4.95

25

Fitting

7052269

$24.99

26

Grommet

5432981

$6.94

27

RING, COMPRESSION

7080768

$4.84

27

RING, COMPRESSION

7080768

$4.84

28

Line, Fuel

8350020-600

Unavailable

29

Pickup w/Mesh, Fuel

7052215

$49.99

30

Asm., Fuel Tank [Incl. 29-33]

2520265

$236.99

31

Sender, Fuel

2410165

Unavailable

32

Package, Hardware, Sending Unit

2410232

$7.43

33

Fitting, 90 Degree

7052095

$4.79

34

LINE, FUEL

8450061-600

Unavailable

35

CABLE TIE, RELEASABLE

7080804

$3.22
