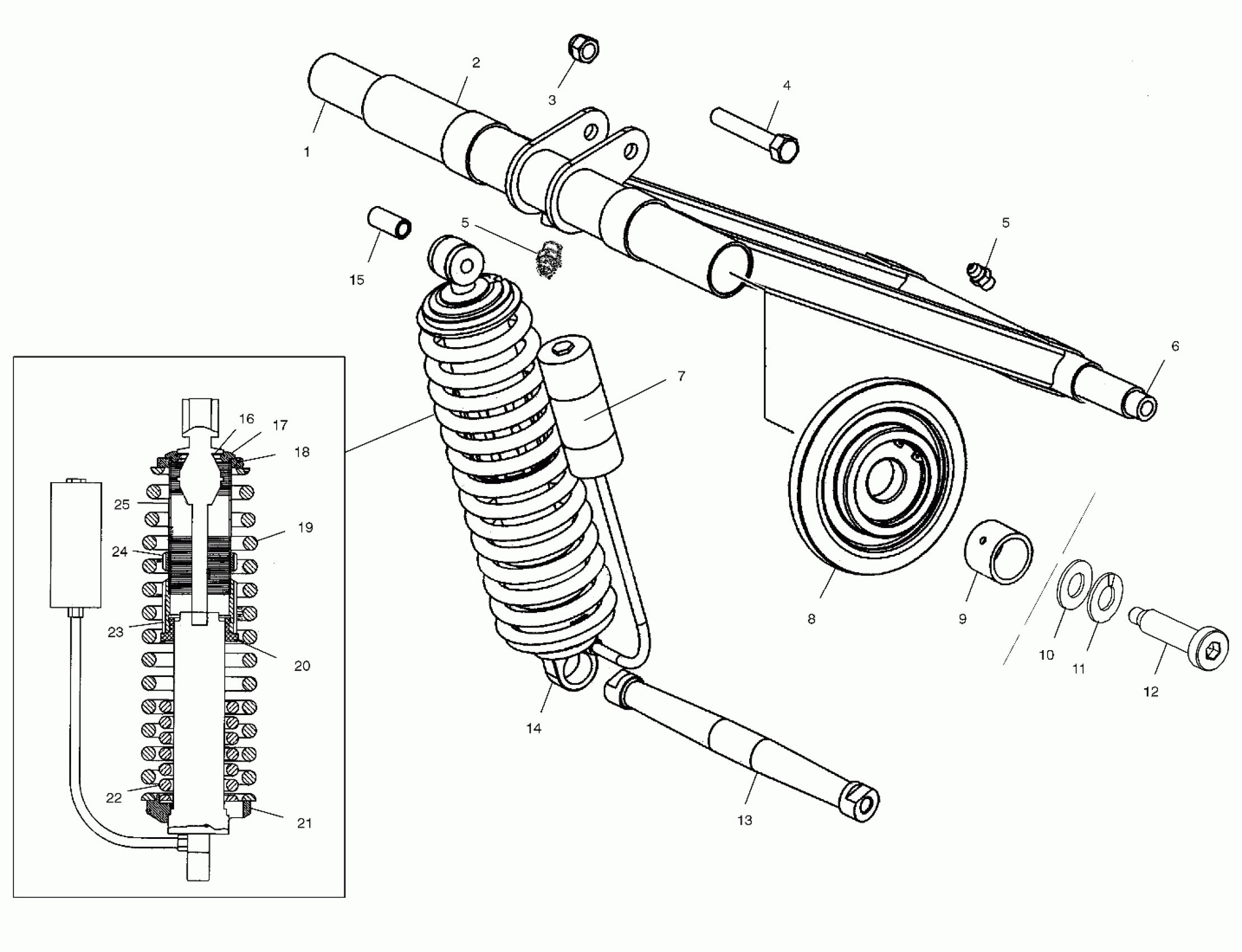

Polaris 700 CLASSIC BUILT AFTER 1/1/01 - S02ND7CS REAR TORQUE ARM - S02ND7CS (4970457045B09) Diagram

#

Description
Price

1

Shaft

5132578

Unavailable

2

Arm, Torque

1541527-216

Unavailable

3

Nut, Nylok

7542439

$1.49

4

Screw

7515415

$1.49

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

6

Shaft

5133093

$28.79

7

Decal, M-10, Fox

7079432

Unavailable

8

Asm., Wheel

1590308

Unavailable

8

Bearing

3514330

$31.99

8

Ring, Retaining

7710471

$13.59

9

Screw, Socket Set

7512257

$3.99

9

Collar

5132582

Unavailable

10

Washer, Flat

7555984

$2.39

11

WASHER-LOCK, 7/16-B

7552614

$1.59

12

Screw, Socket Head

7517815

Unavailable

13

Shaft, Tapered [See Suspension Pg. B7, Ref. 26]

-------

Unavailable

14

Shock

7041934

Unavailable

15

SLEEVE

5333905

$15.99

16

Cap

5244747

$5.75

17

Retainer, Spring Slotted

5020618

$24.99

18

Nut, Preload

5132645

Unavailable

19

Spring, Shock, Rear

7041935-216

Unavailable

20

Bushing

5433882

$5.78

21

Retainer, Spring, Rear

5133032

$84.99

22

Spring, Overload, Rear

7041936-067

Unavailable

23

Ring, Adjuster

5132625

$97.99

24

Nut, Ring Adjuster

5132643

Unavailable

25

Sleeve

5132794

$29.37
