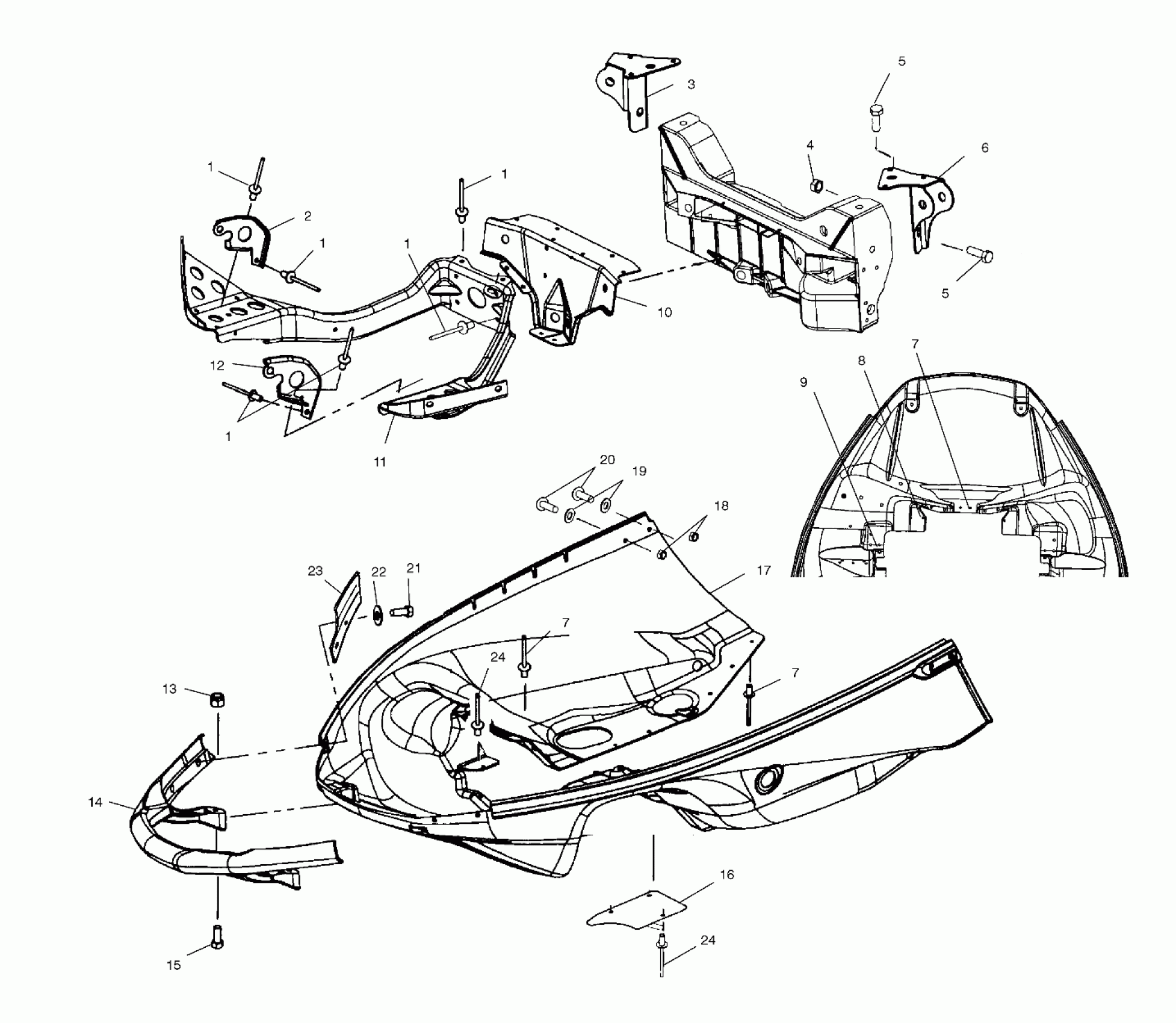

Polaris 700 CLASSIC BUILT AFTER 1/1/01 - S02ND7CS NOSEPAN - S02ND7CS (4970457045A05) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

Hinge, Pivot, Lower, RH

5243992-067

$104.99

3

Mount, Shock, Upper, RH

5243978

$21.43

4

NUT, FLANGED

7547180

$2.39

5

SCREW

7517935

$2.39

5

SCREW

7517935

$2.39

6

Mount, Shock, Upper, LH

5243977

$32.95

7

RIVET

7621467

$1.49

7

RIVET

7621467

$1.49

7

RIVET

7621467

$1.49

8

RIVET

7621431

$1.49

9

Rivet

7661136

Unavailable

10

Bracket, Radius Rod Support

5244049-067

Unavailable

11

Brace, Pan, Lower

5244050

$137.60

12

Hinge, Pivot, Lower, LH

5243991-067

$104.99

13

NUT, NYLOK

7542153

$1.59

14

Bumper, Front

5433518-070

$64.75

15

Bolt

7512163

$3.99

16

Shield, Heat

5243853

Unavailable

17

Nosepan, Stone Silver

5434343-358

$445.22

18

Nut, Nylok

7542122

$1.49

19

WASHER

7555827

$3.99

20

Screw

7515166

$3.19

21

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

22

WASHER, SPRING LOCK

7552801

$1.59

23

Guide, Hood, LH

5244888

Unavailable

23

Guide, Hood, RH

5244889

Unavailable

24

RIVET

7621472

$1.49

24

RIVET

7621472

$1.49
