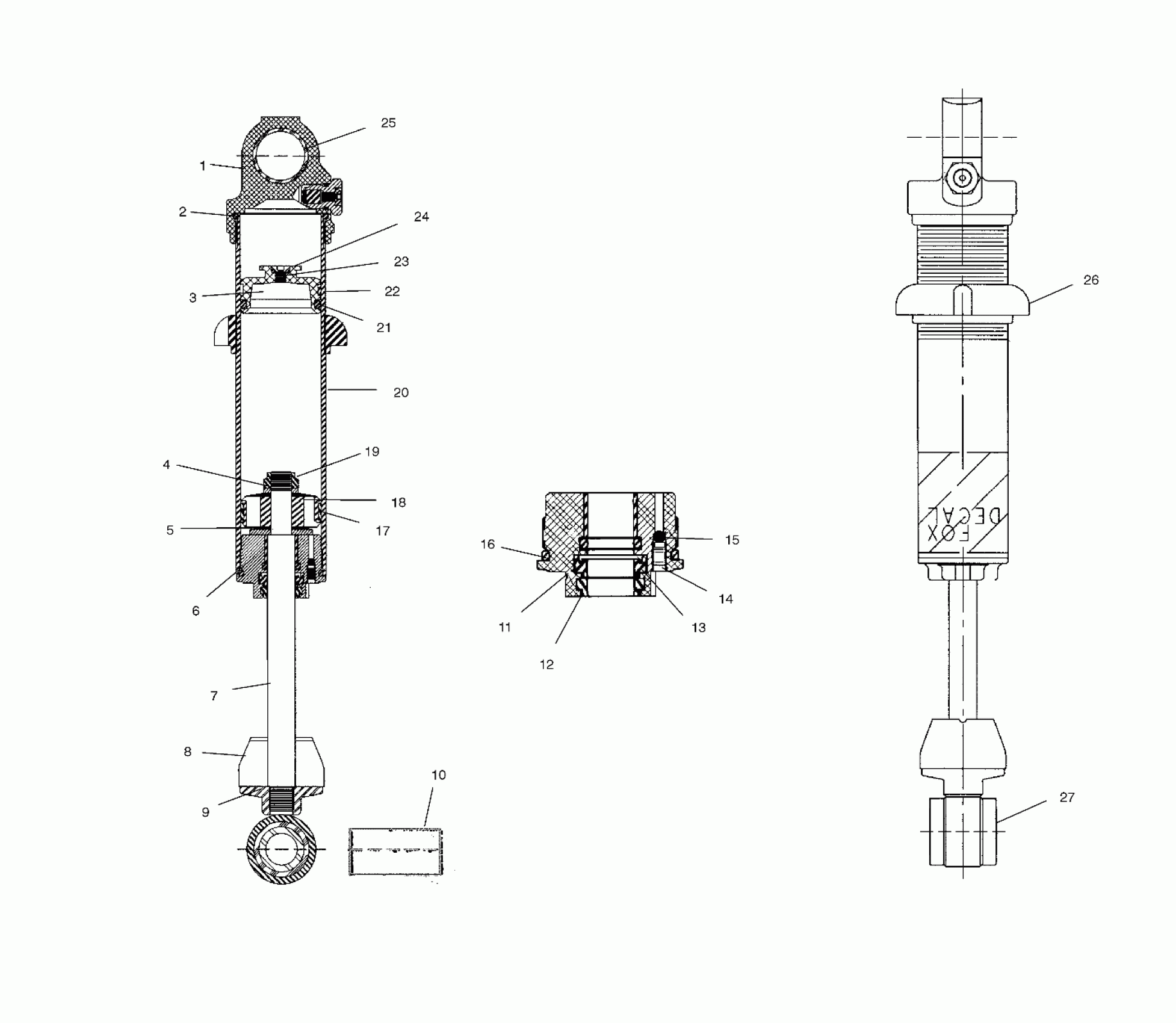

Polaris 700 CLASSIC BUILT AFTER 1/1/01 - S02ND7CS FRONT SHOCK - S02ND7CS (4970457045B10) Diagram

#

Description
Price

-

Shock, Front Track

7042094

Unavailable

1

Asm., Body Cap

1500443

$102.38

2

O-Ring

1500108

$10.99

3

Piston, Floating

1500187

$26.98

4

Plate, Backup

1500015

$6.76

5

Plate, Top-Out

1500017

$20.22

6

Asm., Bearing

1500186

Unavailable

7

Shaft

1500247

Unavailable

8

Bumper

1500441

$36.41

9

EYELET

1500164

$93.08

10

SLEEVE

1500310

$23.99

11

U-Cup

1500266

$24.27

12

Wiper, Outer

1500268

Unavailable

13

O-Ring

1500021

$10.99

14

Screw

1500070

$6.39

15

Ball

1500071

$6.76

16

O-Ring

1500020

$10.63

17

Bearing

1500002

$31.99

18

Kit, Piston Valving

2200618

Unavailable

19

Nut

1500016

$12.79

20

Body

1500458

Unavailable

21

O-Ring

1500003

$8.89

22

Bearing

1500006

$19.99

23

O-Ring

1500022

Unavailable

24

Screw

1500018

$5.56

25

Bearing

1500444

Unavailable

26

Ring, Spring Preload

5432304

Unavailable

27

Bushing

1500309

Unavailable
