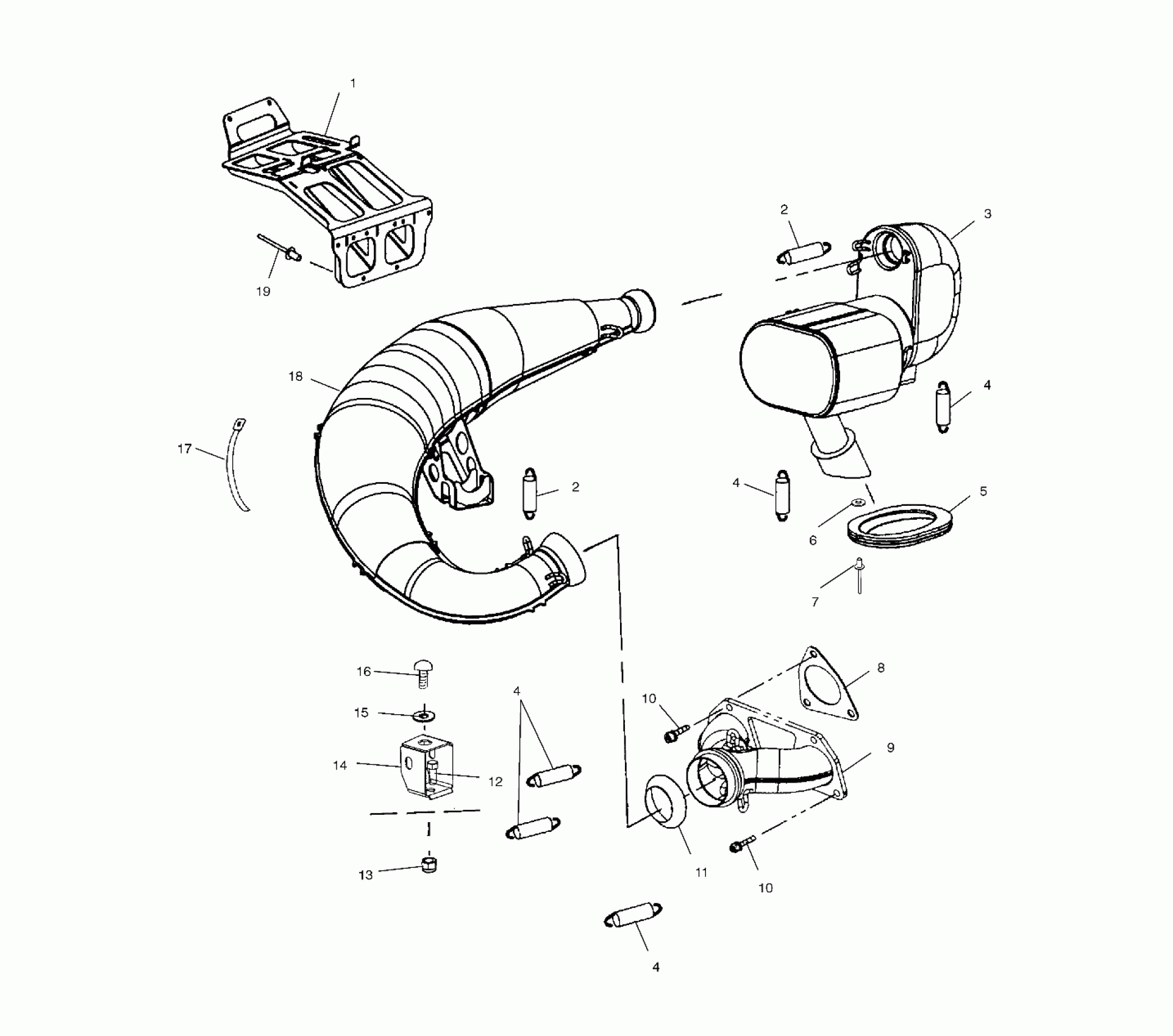

Polaris 700 CLASSIC BUILT AFTER 1/1/01 - S02ND7CS EXHAUST - S02ND7CS (4970457045C05) Diagram

#

Description
Price

1

Bracket, Chassis/Resonator

1261008-029

Unavailable

2

Spring

7042029

$4.84

2

Spring

7042029

$4.84

3

Resonator

1261130-029

$649.99

4

SPRING-EXHAUST

7041687

$5.65

4

SPRING-EXHAUST

7041687

$5.65

4

SPRING-EXHAUST

7041687

$5.65

4

SPRING-EXHAUST

7041687

$5.65

5

Boot, Exhaust Outlet

5411684

Unavailable

6

Washer

7555904

$1.49

7

RIVET

7621467

$1.49

8

Gasket, Exhaust

5811799

Unavailable

9

Manifold

1261124-029

$216.99

10

Screw

7517322

$2.39

10

Screw

7517322

$2.39

11

Seal, Exhaust

3610046

$36.41

12

Screw

7515440

$3.99

13

Nut, Flange

7547180

$2.39

14

Bracket, Chassis/Pipe

5245498

$59.99

15

WASHER

7556004

$7.19

16

Dampener, Vibration

5411576

$7.99

17

Clamp [.44 x 3.13]

7080739

$10.63

17

Clamp [.44 x 3.69]

7080740

$13.19

17

Clamp [.44 x 4.25]

7080741

$19.99

17

Clamp [.44 x 6.38]

7080742

$15.03

18

Asm., Tuned Pipe

1261123

$355.99

18

Cover, Tuned Pipe, Top

5245929

$70.39

18

Cover, Tuned Pipe, Bottom

5245930

$53.59

18

Matte, Sound

5830215

$73.81

18

Matte, Sound, Bottom

5830216

Unavailable

19

RIVET-3/16-.090-.290

7661637

$1.49
