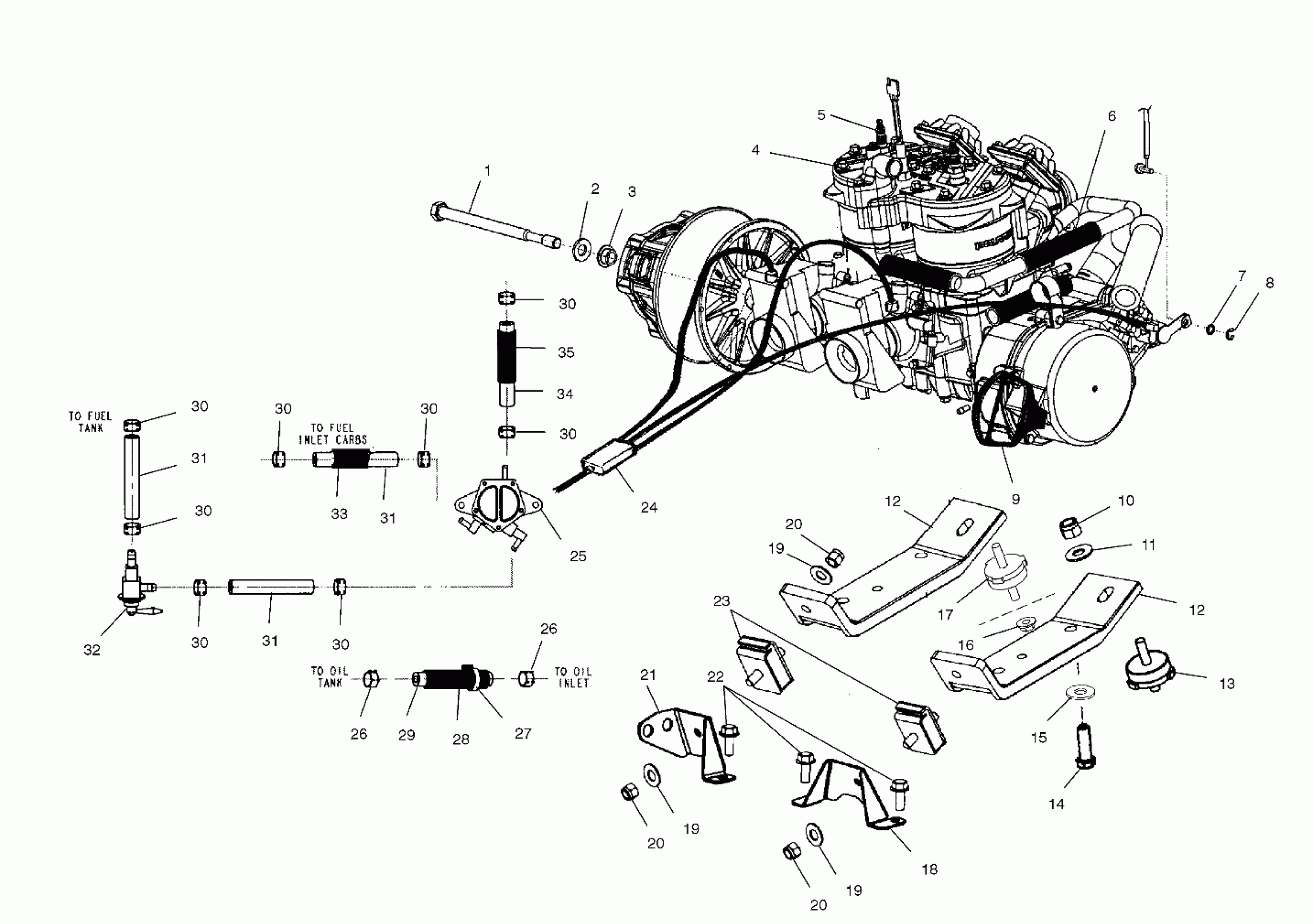

Polaris 700 CLASSIC BUILT AFTER 1/1/01 - S02ND7CS ENGINE MOUNTING - S02ND7CS (4970457045C06) Diagram

#

Description
Price

1

Screw

7517501

Unavailable

2

WASHER

7556003

$6.39

3

Washer

5131872

Unavailable

4

Engine, Short Block, S707002 EV NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is require

2201934

Unavailable

5

Spark Plug, RN57YCC, Champion

3070190

$3.99

6

Conduit

5521398-13

Unavailable

7

Washer, Nylon

7555944

$3.99

8

E-Ring

7710427

Unavailable

9

Handle, Recoil

5431499

Unavailable

10

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

11

Washer, Flat

7555893

$1.49

12

Strap, Engine Mount, LH

5245462

$39.99

12

Strap, Engine Mount, RH

5245475

$41.59

12

Strap, Engine Mount, LH

5245462

$39.99

12

Strap, Engine Mount, RH

5245475

$41.59

13

Mount, Engine

3021290

Unavailable

14

Screw

7512539

$3.99

15

Washer, Spring Lock

7553101

$3.99

16

NUT, FLANGED

7547180

$2.39

17

Mount, Engine

3021220

Unavailable

18

Bracket, Engine Mount, RH

5245044

Unavailable

19

Washer, Flat

7555806

$1.49

19

Washer, Flat

7555806

$1.49

19

Washer, Flat

7555806

$1.49

20

NUT, FLEXLOC

7547008

$6.39

20

NUT, FLEXLOC

7547008

$6.39

20

NUT, FLEXLOC

7547008

$6.39

21

Bracket, Engine Mount, LH

1013397

$24.27

22

Screw

7517854

$5.59

23

Mount, Engine

3021206

$60.70

24

Cable, Throttle

7080897

$64.75

25

Pump, Fuel

2520260

Unavailable

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

28

Tubing, Convoluted

8360058-40

Unavailable

29

Line, Fuel

8450003-1525

Unavailable

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

31

Line, Fuel

8350017-600

Unavailable

31

Line, Fuel

8350017-600

Unavailable

31

Line, Fuel

8350017-600

Unavailable

32

Valve, Fuel Shut-Off

7052268

Unavailable

33

Tubing, Convoluted

8360052-15

Unavailable

34

Line, Fuel

8450040-600

Unavailable

35

TUBING, CONVOLUTED

8360052-25

Unavailable
