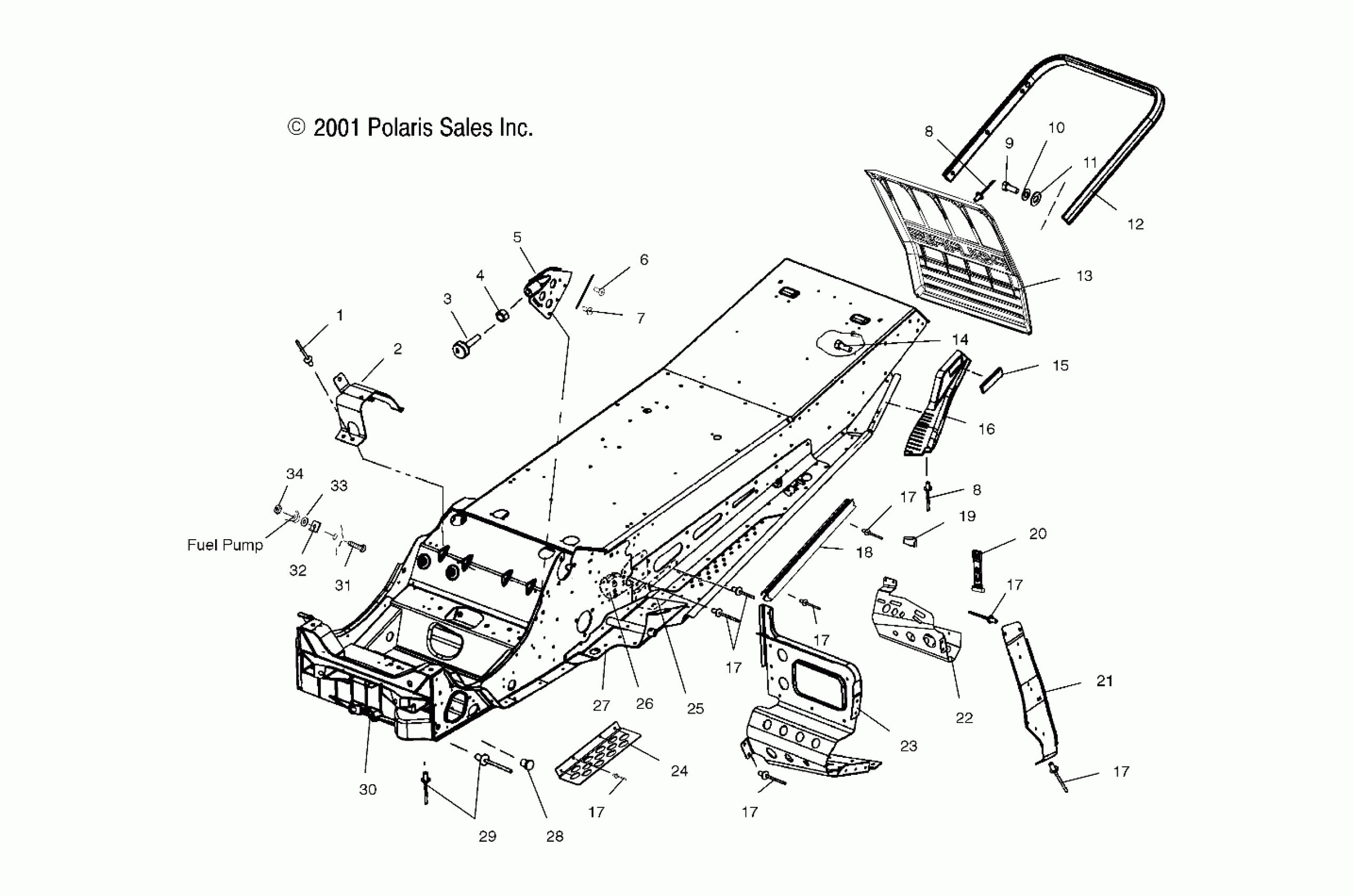

Polaris 700 CLASSIC BUILT AFTER 1/1/01 - S02ND7CS CHASSIS - S02ND7CS (4970457045A03) Diagram

#

Description
Price

-

Asm., Chassis

1013687-309

Unavailable

1

Rivet

7621432

$1.49

2

Bracket, Jackshaft Shield

5245003

$13.19

3

Stop, Torque

3110078

$36.41

4

NUT

7542404

$1.59

5

Stop, Torque

1013377

$27.19

6

SCREW

7517632

$5.59

7

Screw

7517854

$5.59

8

RIVET

7621472

$1.49

8

RIVET

7621472

$1.49

9

BOLT

7512240

$3.99

10

WASHER, SPRING LOCK

7552801

$1.59

11

Washer, Flat

7558301

$1.49

12

Bumper, Rear, Unpainted

2632165-309

Unavailable

13

Flap, Snow

5433961-1118

Unavailable

14

Screw

7517441

$2.39

15

Reflector, Red

2670133

$5.75

16

Skirt, Snow/Reflector, LH [Incl. 15]

2632443-070

$64.75

16

Skirt, Snow/Reflector, RH [Incl. 15]

2632444-070

$55.99

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

18

Brace, Tunnel Roll

5245118

$23.81

19

EXTRUSION, CLUTCH GUARD

5521238

$6.46

20

STRAP-AIRBOX TOP

5433150

$24.27

21

Support, Footrest, LH

5242741

$19.68

21

Support, Footrest, RH

5242742

$32.37

22

Mount, Toe Clip, Console, LH

5245457

Unavailable

22

Mount, Toe Clip, Console, RH

5245458

Unavailable

23

Footrest, LH

5245288

Unavailable

23

Footrest, RH

5242740

Unavailable

24

Guard, Belt

5245836

$30.99

25

Brace, Lower, Tunnel, LH

5244997-067

$19.83

25

Brace, Lower, Tunnel, RH

5244998-067

$19.83

26

Pad, Suspension, Front, LH

5244999-067

Unavailable

26

Pad, Suspension, Front, RH

5245001-067

$24.27

27

Kit, Trailing Arm Mount, LH

2202059

$213.00

27

Kit, Trailing Arm Mount, RH

2202060

Unavailable

28

PLUG, HOLE

7080416

$5.65

29

Rivet

7661639

Unavailable

30

Bulkhead, Front

5132292

$115.99

31

Bolt, Carriage

7512275

$3.99

32

Nut, Speed

7670021

$6.99

33

Washer, Nylon

7555932

$2.39

34

Nut, Nylok

7542122

$1.49
